Запчасти Case IH 385 (00J10) - AUTOMATIC HITCH (12) - FRAME

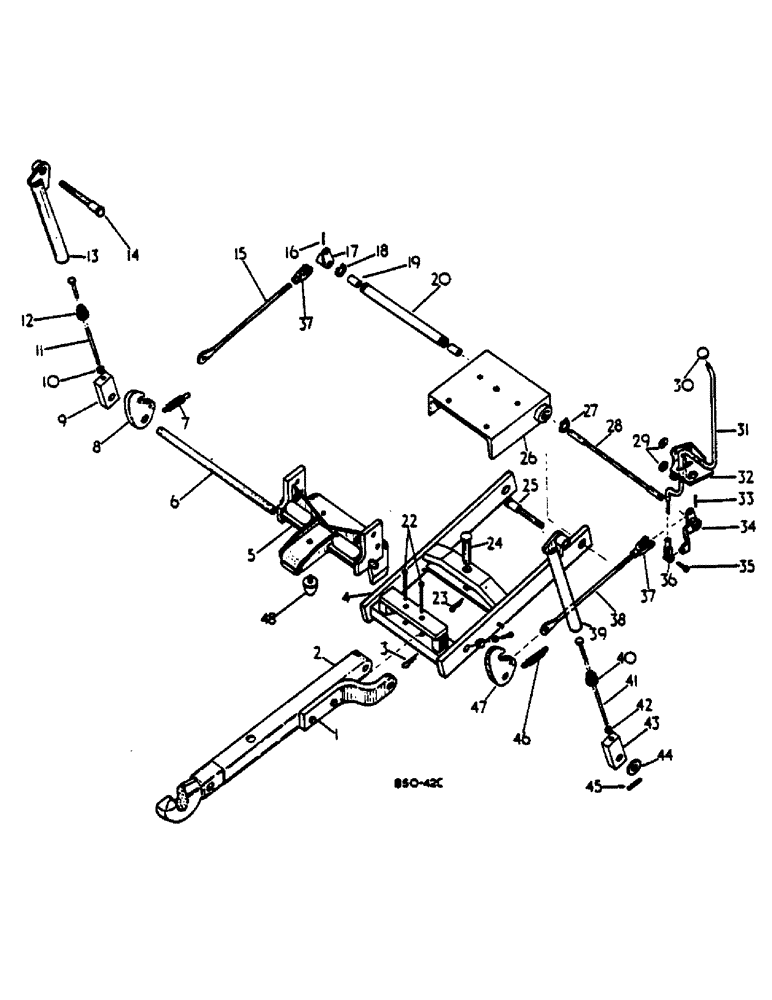

Схема запчастей Case IH 385 - (00J10) - AUTOMATIC HITCH (12) - FRAME
20
46
16
26
39
11
10
18
4
15
36
22
47
33
34
35
12
42
24
41
17
6
37
48
31
14
28
30
19
13
40
43
37
27
23
38
32
25
1
45
5
9
44
1
8
7
2
29
3

Артикул

Название

Примечание

Количество

ATTACHMENT, AUTOMATIC HITCH - FOR TRACTORS EQUIPPED WITH HYDRAULIC DRAFT CONTROL ATT AND AUTOMATIC HITCH W/SWINGING DRAWBAR

1шт.

1

3121823R1

DRAWBAR CLAMP

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8 UNC X 3-3/4 HEX HD

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

2

3123688R1

DRAWBAR

DRAWBAR

1шт.

3

198121A1

SPRING CLIP

CLIP, SPRING

2шт.

4

3121782R2

FRAME

AUTOMATIC HITCH

1шт.

461-32524

HEX SOC SCREW,1/4"-20 x 1 1/2"

1/4-20 X 1/2 HEX HD CAP

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

5

3125212R2

SUPPORT

DRAWBAR

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 X 1-1/2 HEX HD CAP

6шт.

6

3121795R2

SHAFT

LIFT ROD CROSS

1шт.

7

399743R1

SPRING

RETURN, 484 485, Serial Range: -7134

1шт.

7

399743R1

SPRING

RETURN, 248, Serial Range: -815

1шт.

7

1500607C2

SPRING

RETURN, 385 485, Start Serial: 7135

1шт.

7

1500607C2

SPRING

RETURN, 248, Start Serial: 816

1шт.

8

3121793R2

LATCH

2шт.

38-12412

LOCK PIN,3/8" x 3/4", Slotted

3/8" x 3/4", Slotted

2шт.

38-31212

PIN,3/16" x 3/4", Coiled

484 485, Serial Range: -7134

2шт.

38-31212

PIN,3/16" x 3/4", Coiled

248, Serial Range: -815

2шт.

8

1500606C2

LATCH

2шт.

38-12412

LOCK PIN,3/8" x 3/4", Slotted

3/8" x 3/4", Slotted

2шт.

38-31212

PIN,3/16" x 3/4", Coiled

385 485, Start Serial: 7165

2шт.

38-31212

PIN,3/16" x 3/4", Coiled

248, Start Serial: 816

2шт.

9

3118824R1

BAR

LIFT ROD

1шт.

10

425-1010

NUT,5/8"-11, G5

1шт.

11

3121794R1

ROD

LIFT

1шт.

12

3118821R1

END

LIFT ROD TUBE

1шт.

13

3121796R1

TUBE

LIFT LH

1шт.

14

3118822R2

BOLT

LIFT ROD

1шт.

752904R1

NUT

5/8 UNC

1шт.

15

3121809R1

ROD ASSY.

LATCH LH

1шт.

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

1шт.

280250

COTTER PIN,3/32" OD x 3/4" L

484, 485- ORDER 1 ROD 3121811R1 AND 1 CLEVIS 104038, Serial Range: -7134

1шт.

280250

COTTER PIN,3/32" OD x 3/4" L

248 - ORDER 1 ROD 3121811R1 AND 1 CLEVIS 104038, Serial Range: -815

1шт.

15

3121811R1

ROD

LATCH, 385 485, Start Serial: 7135

1шт.

15

3121811R1

ROD

LATCH, 248, Start Serial: 816

1шт.

16

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

17

3121802R1

LEVER ASSY.

LATCH

1шт.

18

933082R1

SNAP RING,M32, Ext

Retaining

1шт.

19

3121792R1

BUSHING

2шт.

20

3121791R1

TUBE,15.8 mm ID, 31.8 mm OD, 336 mm Length

FRAME PIVOT

1шт.

21

- NOT USED -

1шт.

22

3121822R1

PIN

9/16 DIA X 4-7/8 STD HD

2шт.

23

700387R1

CLIP, SPRING

1шт.

24

3121821R1

PIVOT PIN

DRAWBAR

1шт.

25

3118822R2

BOLT

LIFT ROD

1шт.

752904R1

NUT

5/8 UNC

1шт.

26

3121768R1

SUPPORT

SPARE PART HITCH FRAME

1шт.

631558R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2-13 X 1-1/4 HEX HD CAP

4шт.

120384

WASHER,1/2"

484, 485, Serial Range: -7134

4шт.

120384

WASHER,1/2"

248, Serial Range: -815

4шт.

3061325R1

WASHER

HARDENED, 385 485, Start Serial: 7135

4шт.

3061325R1

WASHER

HARDENED, 248, Start Serial: 816

4шт.

37-1820

DOWEL,1/2" x 1 1/4"

PIN, 1/2 X 1-1/4

1шт.

27

933082R1

SNAP RING,M32, Ext

Retaining

1шт.

28

3121801R1

ROD

LATCH RELEASE

1шт.

29

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

NO 16

2шт.

30

3123663R1

BUTTON

KNOB

1шт.

31

1500767C2

LEVER

HAND CONTROL

1шт.

32

1500765C1

BRACKET

LATCH RELEASE

1шт.

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

2шт.

33

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

34

3121805R1

LEVER ASSY.

LATCH RELEASE

1шт.

35

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

1шт.

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.

36

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

ADJUSTABLE

1шт.

37

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

ADJUSTABLE

2шт.

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

2шт.

280250

COTTER PIN,3/32" OD x 3/4" L

2шт.

38

3121811R1

ROD

LATCH

1шт.

39

3121797R1

TUBE

LIFT RH

1шт.

40

3118821R1

END

LIFT ROD TUBE

1шт.

41

3121794R1

ROD

LIFT

1шт.

42

425-1010

NUT,5/8"-11, G5

1шт.

43

3118824R1

BAR

LIFT ROD

1шт.

44

702700076

WASHER

1.060 X 2.000 X .108, 484 485, Serial Range: -7134

6шт.

44

702700076

WASHER

1.060 X 2.000 X .108, 248, Serial Range: -815

6шт.

44

95-81038

WASHER,1.03" ID x 2" OD x 0.12" Thk

FLAT, 385 485, Start Serial: 7135

6шт.

44

95-81038

WASHER,1.03" ID x 2" OD x 0.12" Thk

FLAT, 248, Start Serial: 816

6шт.

45

63172

PIN, ROLL

SPRING

2шт.

46

399743R1

SPRING

LATCH RETURN, 484 485, Serial Range: -7134

1шт.

46

399743R1

SPRING

LATCH RETURN, 248, Serial Range: -815

1шт.

46

1500607C2

SPRING

LATCH RETURN, 385 485, Start Serial: 7135

1шт.

46

1500607C2

SPRING

LATCH RETURN, 248, Start Serial: 816

1шт.

47

3121793R2

LATCH

ORDER SERVICE PACKAGE 1500620C91 OR 1500621C91

1шт.

38-12412

LOCK PIN,3/8" x 3/4", Slotted

3/8" x 3/4", Slotted

1шт.

38-31212

PIN,3/16" x 3/4", Coiled

484 485, Serial Range: -7134

1шт.

38-31212

PIN,3/16" x 3/4", Coiled

248, Serial Range: -815

1шт.

47

1500606C2

LATCH

1шт.

19382R1

PIN, 3/8 X 3/4 SLTD SPRING

1шт.

38-31212

PIN,3/16" x 3/4", Coiled

385, 485, Start Serial: 7165

1шт.

38-31212

PIN,3/16" x 3/4", Coiled

248, Start Serial: 816

1шт.

48

1500608C1

SHOCK ABSORBER

1шт.

933965R1

LOCK WASHER,M10

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

M10

1шт.

1093148R1

DECAL

HOOK, 484 485 - (NOT ILLUSTRATED), Serial Range: -7134

1шт.

1093148R1

DECAL

HOOK, 248 - (NOT ILLUSTRATED), Serial Range: -815

1шт.

1135303C1

DECAL

HOOK, 385 485 - (NOT ILLUSTRATED), Start Serial: 7135

1шт.

1135303C1

DECAL

HOOK, 248 - (NOT ILLUSTRATED), Start Serial: 816

1шт.

1500620C91

PACKAGE, AUTO HITCH LATCH - OFF ROAD WORK (NOT ILLUSTRATED) - CONSISTS OF

1шт.

1500606C2

LATCH

(NOT ILLUSTRATED)

2шт.

1500607C2

SPRING

(NOT ILLUSTRATED)

2шт.

3121795R2

SHAFT

LIFT ROD CROSS (NOT ILLUSTRATED)

1шт.

702700076

WASHER

1.060 X 2.000 X .108 (NOT ILLUSTRATED)

4шт.

38-32420

PIN,9.53mm OD x 31.75mm L, Coiled

not illustrated 3/8" x 1 1/4", Coiled

2шт.

3061325R1

WASHER

HARDENED (NOT ILLUSTRATED)

4шт.

1500621C91

KIT

AUTO HITCH LATCH - ROAD WORK (NOT ILLUSTRATED) - CONSISTS OF

1шт.

1500606C2

LATCH

(NOT ILLUSTRATED)

2шт.

1500607C2

SPRING

RETURN (NOT ILLUSTRATED)

2шт.

3121795R2

SHAFT

LIFT ROD CROSS (NOT ILLUSTRATED)

1шт.

702700076

WASHER

1.060 X 2.000 X .108 (NOT ILLUSTRATED)

4шт.

38-32420

PIN,9.53mm OD x 31.75mm L, Coiled

not illustrated 3/8" x 1 1/4", Coiled

2шт.

3061325R1

WASHER

HARDENED (NOT ILLUSTRATED)

4шт.

1500608C1

SHOCK ABSORBER

(NOT ILLUSTRATED)

1шт.

933965R1

LOCK WASHER,M10

(Not Illustrated)

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

M10 (NOT ILLUSTRATED)

1шт.

1500609C1

PLATE

STOP (NOT ILLUSTRATED)

1шт.

Выбрано товаров: 118
