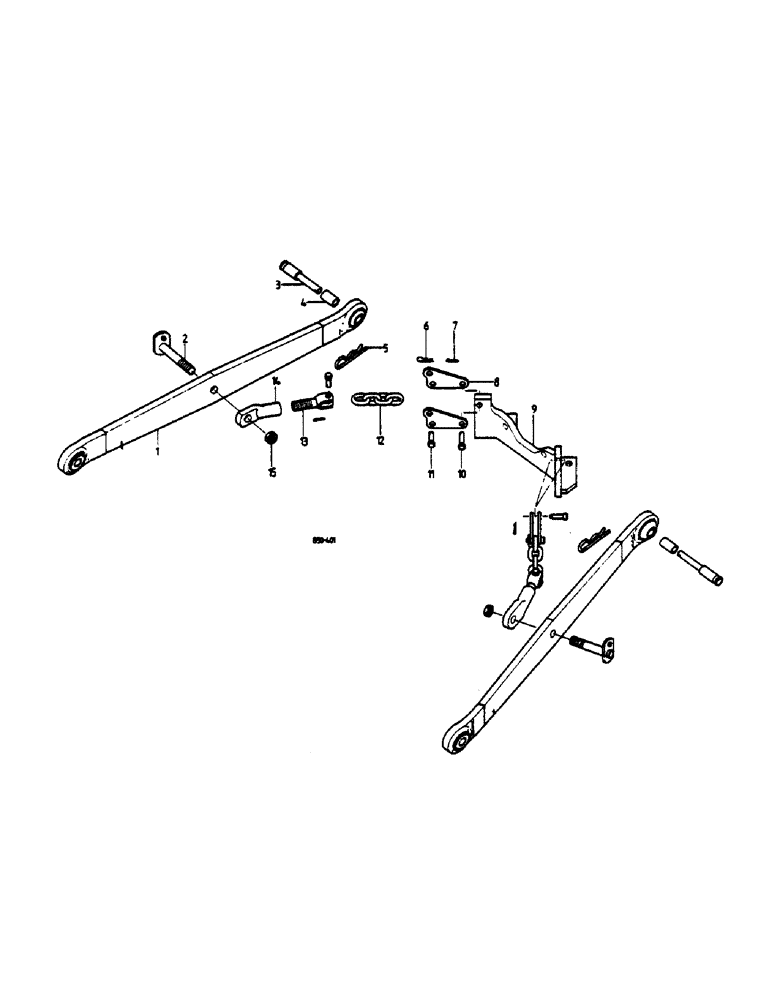

Запчасти Case IH 385 (00J04) - LOWER LINKS - THREE POINT HITCH, WITH INSIDE CHECK CHAINS (12) - FRAME

1

402648R1

LOWER LINK

2шт.

2

527981R1

PIN ASSY.

REAR CHAIN BRACKET

2шт.

3

530825R1

PIN,31.75mm OD x 119.84mm L

LOWER LINK

2шт.

4

530826R1

BUSHING

LOWER LINK

2шт.

5

538406R1

COTTER PIN

PIN, QUICK ATTACHABLE COTTER

2шт.

6

460047R1

CLIP, SPRING

PIN, QUICK ATTACHABLE COTTER

2шт.

7

137180

COTTER PIN,1/8" x 7/8"

4шт.

8

527975R1

PLATE

STRAP, CHAIN SHACKLE

4шт.

9

3123734R1

SUPPORT

CHECK CHAIN

1шт.

271558R1

SCREW

5/8 X 1-1/2 HEX HEAD CAP

4шт.

10

403043R1

PIN

LIMITER CHAIN

2шт.

11

403031R1

PIN

CHAIN SHACKLE STRAP

4шт.

12

3113595R1

CHAIN,139.7mm L

LATERAL LIMITER

2шт.

13

527976R1

ADJUSTABLE CLEVIS

LATERAL LIMITER

2шт.

14

403034R1

BRACKET

LIMITER CHAIN REAR

2шт.

15

231-14012

LOCK NUT,3/4"-10, GB

3/4-10 NYLON INSERT

2шт.
