Запчасти Case IH 385 (00I23) - THREE POINT HITCH (12) - FRAME

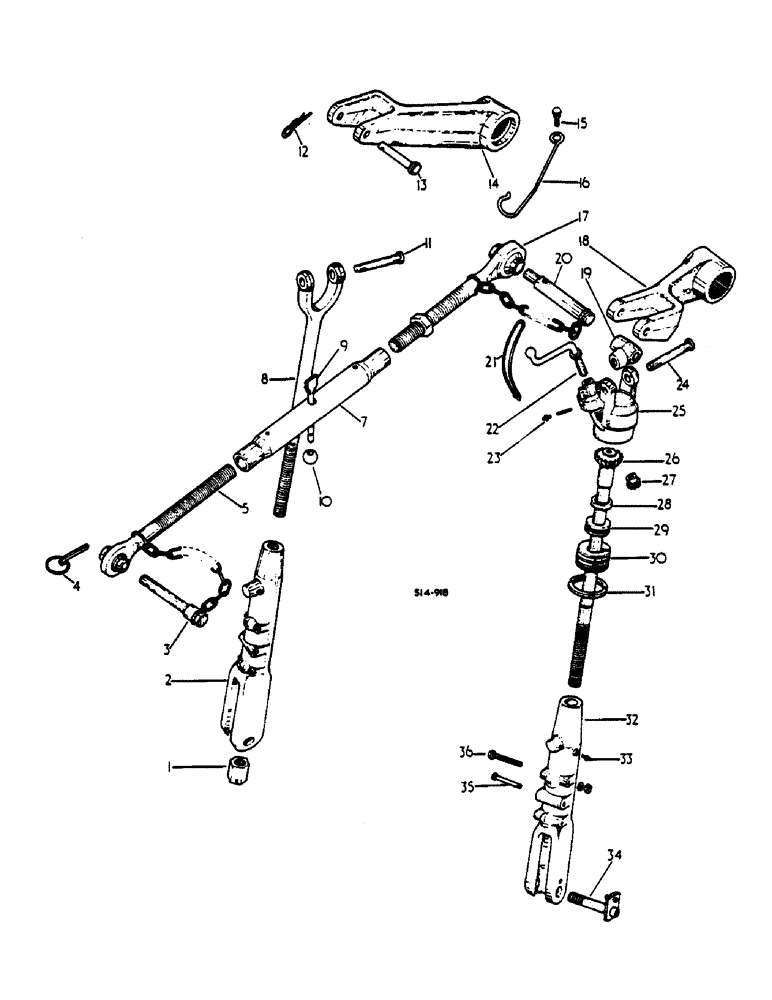

Схема запчастей Case IH 385 - (00I23) - THREE POINT HITCH (12) - FRAME
14
1
20
31
25
7
34
16
3
26
30
13
8
12
10
5
4
32
23
29
24
15
11
2
18
21
28
19
36
27
9
17
33
35
22

Артикул

Название

Примечание

Количество

1

527937R1

NUT

LIFT LINK

2шт.

2

3121964R4

HOUSING

LIFT LINK YOKE

1шт.

495-81046

WASHER,25/32" x 2" x .120"

25/32 X 2 X .120

2шт.

3

1328192C3

PIN,25.4mm OD x 134mm L

Upper link, Cat I

1шт.

4

533189R1

PIN

COTTER

1шт.

5

528000R1

SCREW

RH THD UPPER

1шт.

6

NOT APPLICABLE

1шт.

7

528002R1

TURNBUCKLE

1шт.

426899

NUT,Jam, 1"-8, G5

LOCK 1-1/8

1шт.

8

527967R1

CLEVIS,7/8" - 9

YOKE ASSY, LIFT LH LINK

1шт.

9

56958C2

ROD, TURNBUCKLE HANDLE

1шт.

10

3048296R1

BUTTON

KNOB, TURNBUCKLE

1шт.

11

3044309R2

HEADED PIN

5/8 X 3-3/4

1шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

12

198121A1

SPRING CLIP

ROCKSHAFT ARM COTTER - UNIT A

2шт.

13

3044309R2

HEADED PIN

ROCKSHAFT ARM HD - UNIT A

2шт.

14

402634R2

ROCKER ARM

ROCKSHAFT

1шт.

15

391047R1

BOLT,Shldr, Hex, 3/8" - 16 x 1.18"

Shoulder

1шт.

16

530050R5

SPRING CLIP

UPPER LINK STORAGE

1шт.

495-81020

WASHER,17/32" x 1" x .030"

17/32 X 1 X .030 FLAT

1шт.

17

527998R1

SCREW

LH THD UPPER

1шт.

18

402634R2

ROCKER ARM

ROCKSHAFT

1шт.

19

704207R3

PIVOT

LEVELING SCREW

2шт.

20

1536396C1

PIN,40mm OD x 160mm L

UPPER LINK CAT II

1шт.

530049R2

CLIP, SPRING

PIN, QA COTTER

1шт.

21

3072424R1

SPRING

LEVELING SCREW HANDLE

1шт.

22

527943R1

CRANK

HANDLE, LEVELLING SCREW

1шт.

22

3118015R1

CRANK

HANDLE, LEVELLING SCREW - DE-LUXE CAB

1шт.

23

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

1шт.

24

3069069R2

HEADED PIN

5/8 X 3-3/4 HARDENED

1шт.

25

3072422R2

HOUSING

LEVELING SCREW

1шт.

26

69991C91

SCREW

LIFT RH LINK LEVELING

1шт.

27

3069063R1

GEAR

PINION

1шт.

435-1612

GROOVED PIN,3/16" x 3/4", Type A

3/16" x 3/4", Type A

1шт.

28

3105187R1

COLLAR,25.4mm ID x 34.92mm OD x 7.92mm L

LIFT RH LINK LEVELING SCREW BRG

1шт.

29

3068049R91

BALL BEARING

LEVELING SCREW

1шт.

29

3068049R91

BALL BEARING

LEVELING SCREW

1шт.

29

3068049R91

BALL BEARING

LEVELING SCREW

1шт.

29

3068049R91

BALL BEARING

LEVELING SCREW - OPTIONAL

1шт.

30

3069064R2

SUPPORT,25.43mm ID x 57.15mm OD x 33.27mm L

BEARING, LEVELING SCREW

1шт.

31

3069065R1

LOCK NUT

LEVELING SCREW BRG

1шт.

32

402635R3

HOUSING

LIFT LINK YOKE

1шт.

495-81046

WASHER,25/32" x 2" x .120"

25/32 X 2 X .120

2шт.

33

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

2шт.

34

402645R2

PIN

2шт.

35

68804C1

CLEVIS PIN,7.94mm OD x 58.74mm L

FLOAT STOP

2шт.

432-610

COTTER PIN,3/32" x 5/8"

2шт.

36

7703945

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

5/16-18 X 2-1/2 PLN HEX HD

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

80681

LOCK WASHER,5/16"

2шт.

533189R1

PIN

LOWER LINK DRAWBAR (NOT ILLUSTRATED)

1шт.

1328188C93

LINK

(NOT ILLUSTRATED)

1шт.

Выбрано товаров: 52
