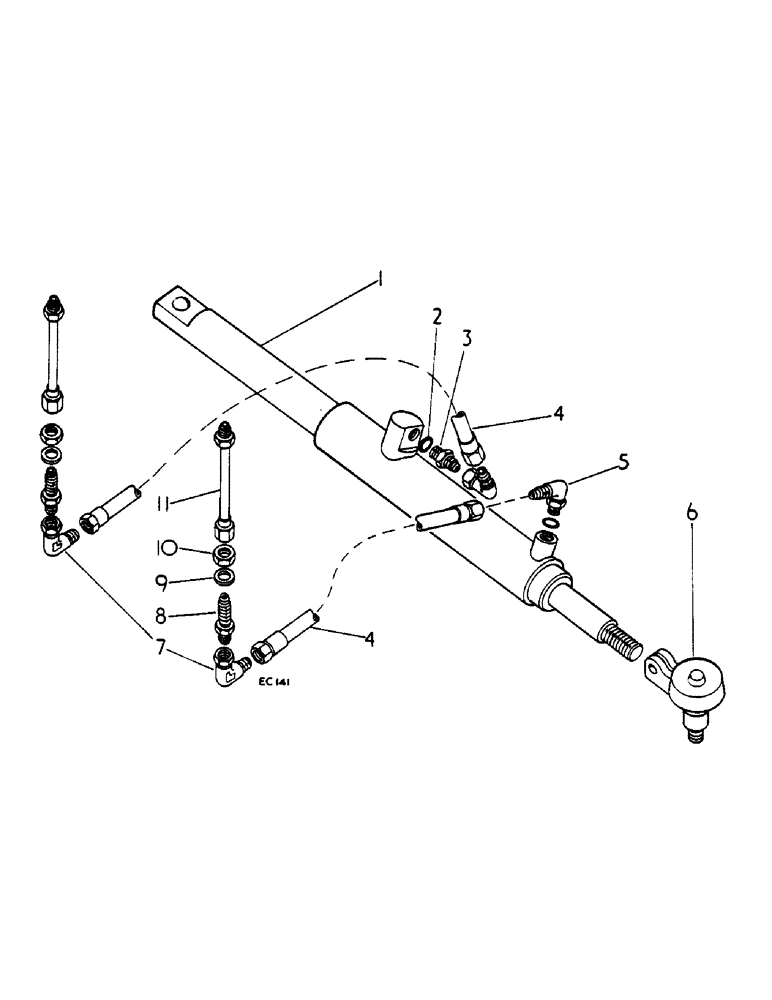

Запчасти Case IH 385 (0A12-2) - POWER STEERING TUBES AND HOSES - FOR USE WITH CAMERON GARDNER LOADER (07) - HYDRAULICS

1

3118502R93

STEERING CYLINDER

POWER STEERING

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

1шт.

3

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

37 DEG FLARED TUBE CONNECTOR

1шт.

4

3121235R2

HOSE,6.35mm ID x 483mm L, SAE 100R1

POWER STEERING CYLINDER

2шт.

5

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 C Z 37 DEG

1шт.

6

378817R91

BALL JOINT

END ASSY, POWER STEERING CYL

1шт.

114-254

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 8

1шт.

425-116

NUT,3/8" - 24, Gr 5

Hex

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

7/8-14 ZND THICK SLT HEX

1шт.

80708

COTTER PIN,1/8" x 1 1/2"

1шт.

7

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 HYD 37 DEG FLARED SWIVEL

3шт.

8

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 CZ 37 DEG FLARE BULKHEAD

1шт.

9

393-21065

LOCK WASHER,Int Tooth, 5/8"

5/8 INT TOOTH LOCK

2шт.

10

9403293

LOCK NUT,Blkhd, 9/16"-18

9/16-18 C-Z

2шт.

11

1265266C1

TUBE

EXTENSION, POWER STR FWD

2шт.
