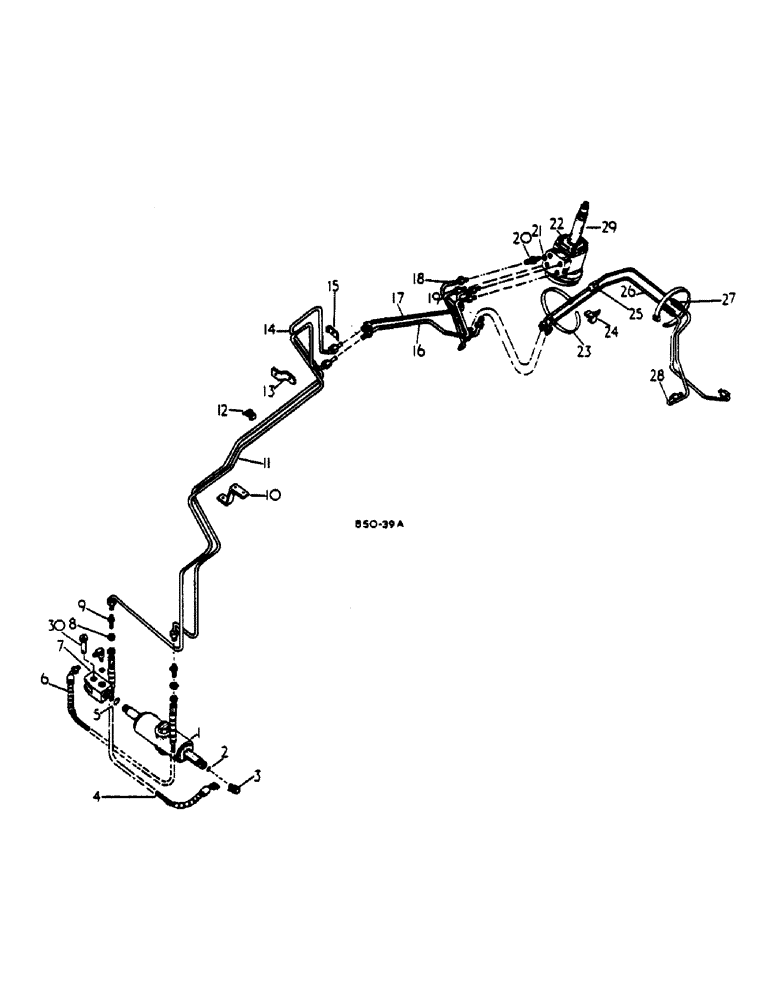

Запчасти Case IH 385 (0A08-2) - POWER STEERING - DANFOSS (07) - HYDRAULICS

1

CYLINDER ASSY, HYD PS - FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF POWER STEERING CYLINDER

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3/8 OD tube

2шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 C-Z 37 DEG HYD FLARED

2шт.

4

3121235R2

HOSE,6.35mm ID x 483mm L, SAE 100R1

POWER STEERING CYL

1шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

6

3121235R2

HOSE,6.35mm ID x 483mm L, SAE 100R1

POWER STEERING CYL

1шт.

7

549670R2

CLEVIS,3/4" - 16

CYL END 3/4 THREAD, 484, Serial Range: -4181

1шт.

7

549670R2

CLEVIS,3/4" - 16

CYL END 3/4 THREAD, 248, Serial Range: -618

1шт.

7

3125306R1

CLEVIS,9/16" - 18

CYL END, 484, Start Serial: 4182

1шт.

7

3125306R1

CLEVIS,9/16" - 18

CYL END, 248, Start Serial: 619

1шт.

8

9403293

LOCK NUT,Blkhd, 9/16"-18

9/16-18 C-Z BULKHEAD UNION

2шт.

9

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 C-Z 37 DEG HYD FLARED TUBE BULKHEAD

2шт.

393-21065

LOCK WASHER,Int Tooth, 5/8"

5/8 INT TOOTH LOCK

2шт.

10

3121238R1

BRACKET

SPARE PART FRONT MANIFOLD SUPPORT

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

11

3121237R1

TUBE ASSY.

POWER STEERING RH FORWARD

1шт.

12

384891R11

CLAMP

POWER STEERING TUBE

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

92-4

LOCK WASHER,1/4"

2шт.

13

529642R1

BRACKET

FRONT MANIFOLD

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1шт.

92-4

LOCK WASHER,1/4"

1шт.

14

3121236R1

TUBE ASSY.

POWER STEERING LH FORWARD

1шт.

15

384891R11

CLAMP

POWER STEERING TUBE

1шт.

16

3116268R3

TUBE ASSY.

POWER STEERING R H REAR

1шт.

3125513R1

NIPPLE, LUBE

NIPPLE GROMMET

1шт.

16

3123903R1

HOSE

POWER STEERING REAR - SUPER DE-LUXE CAB

1шт.

17

3116267R1

TUBE ASSY.

POWER STEERING L H REAR

1шт.

3125513R1

NIPPLE, LUBE

NIPPLE GROMMET

1шт.

17

3123903R1

HOSE

POWER STEERING REAR - SUPER DE-LUXE CAB

1шт.

18

3116272R2

TUBE ASSY.

POWER STEERING RETURN FORWARD - MACHINE NOT FITTED W/CAB

1шт.

18

3116829R91

HOSE ASSY.

POWER STEERING RETURN FORWARD - MACHINE FITTED W/CAB

1шт.

3125553R1

GROMMET

SPARE PART

1шт.

18

3123917R1

HOSE

POWER STEERING FRONT - SUPER DE-LUXE CAB

1шт.

19

3116271R2

TUBE ASSY.,0.375" OD, 12.44, 4.28" Length

POWER STEERING PRESSURE FORWARD - MACHINE NOT FITTED W/CAB

1шт.

19

3116830R91

HOSE ASSY.

POWER STEERING PRESSURE FORWARD - MACHINE FITTED W/CAB

1шт.

3125553R1

GROMMET

SPARE PART

1шт.

19

3123917R1

HOSE

POWER STEERING - FRONT - SUPER DE-LUXE CAB

1шт.

20

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

9/16-18 C-Z 37 DEG HYD FLARED

4шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

4шт.

22

VALVE ASSY, INTEGRAL POWER STEERING - FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF INTEGRAL HYDROSTATIC STEERING VALVE

1шт.

23

7724347

STRAP

14 in, REAR MANIFOLD TUBES

2шт.

24

529638R1

BRACKET

REAR MANIFOLD

1шт.

25

529637R2

GUIDE

MANIFOLD TUBE

1шт.

26

66105C1

TUBE ASSY.

POWER STEERING PRESSURE REAR - 484

1шт.

26

3129256R1

TUBE ASSY.

POWER STEERING PRESSURE REAR 385 485

1шт.

27

87086C1

RADIATOR HOSE,7.90 mm ID

Spacer

2шт.

28

3129257R1

TUBE ASSY.

POWER STEERING RETURN REAR 385 485

1шт.

28

66104C1

PIPE

POWER STEERING RETURN REAR - 484 - MACHINE NOT FITTED - W/CAB - SUPER DE-LUXE CAB

1шт.

28

3129273R1

TUBE ASSY.

POWER STEERING RETURN REAR 385 485

1шт.

28

3116828R1

TUBE ASSY.

POWER STEERING RETURN REAR - 484

1шт.

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 HYD 37 DEG FLARED TUBE SWIVEL - M C VALVE - MACHINE FITTED W/CAB

1шт.

29

3121187R92

STEERING COLUMN

COLUMN-STEERING STEERING W/NUT

1шт.

F19646

LOCK NUT,13/16"-20, Thin

13/16-20

1шт.

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

2шт.

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

30

3125305R1

PIN

POWER STEERING CYL, 484, Start Serial: 4182

1шт.

30

3125305R1

PIN

POWER STEERING CYL, 248, Start Serial: 619

1шт.

30

67488C2

PIN

POWER STEERING CYL, 484, Serial Range: -4181

1шт.

30

67488C2

PIN

POWER STEERING CYL, 248, Serial Range: -618

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

3/16 SH DRIVE TYPE

1шт.

3129261R1

BRACKET

PIPE RETAINING (NOT ILLUSTRATED)

1шт.
