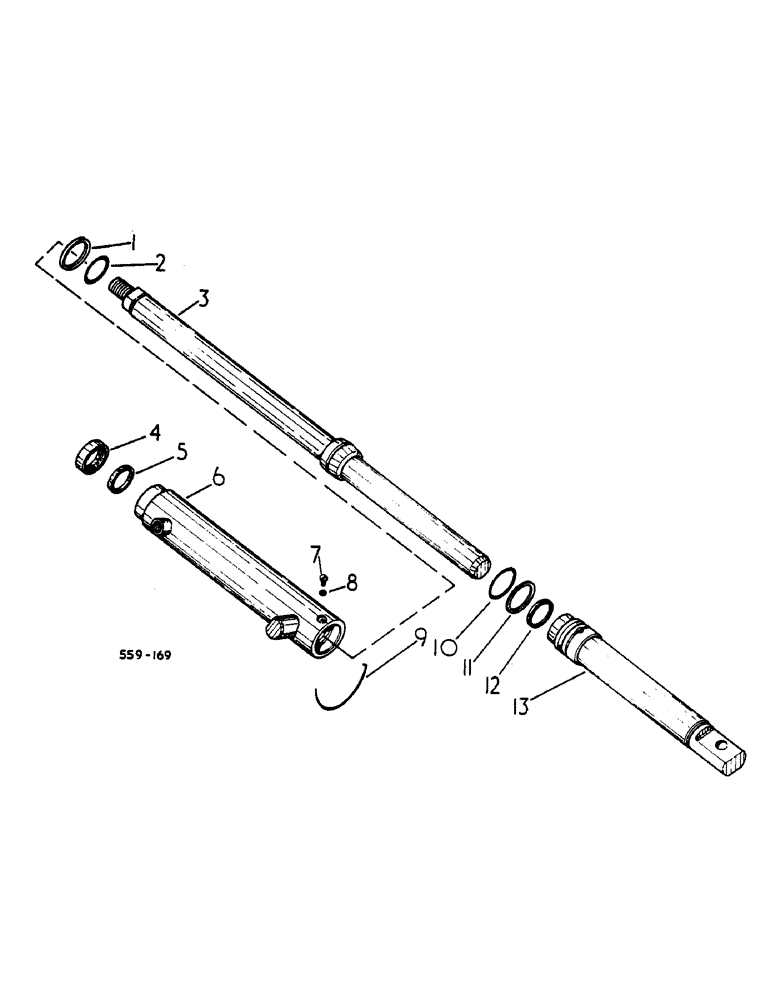

Запчасти Case IH 385 (0A04-2) - POWER STEERING CYLINDER - FOR USE WITH CAMERON GARDNER LOADER (07) - HYDRAULICS

3118502R93

STEERING CYLINDER

POWER STEERING

1шт.

1

378588R1

BACK-UP RING,48.31mm ID x 54.36mm OD x 1.14mm Thk

1шт.

2

290987R1

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1-3/4 X 3 1/8 CL-5

1шт.

3

536309R1

PISTON ROD

POWER STEERING

1шт.

4

536308R91

WIPER SEAL

ROD WIPER

1шт.

5

119214C1

SEAL

PISTON ROD

1шт.

6

3118503R2

HYD TUBE,244.86, 38.10 mm Length

TUBE ASSY, POWER STEERING

1шт.

7

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

1шт.

8

492-11010

LOCK WASHER,#10

1шт.

9

396106R1

ELECTRICAL WIRE

WIRE RETAINER, FRONT HEAD

1шт.

10

343921R1

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1-7/8 X 2-1/8 X 1/8 CL-6

1шт.

11

378588R1

BACK-UP RING,48.31mm ID x 54.36mm OD x 1.14mm Thk

1шт.

12

119214C1

SEAL

PISTON ROD

1шт.

13

536301R2

HEAD

POWER STEERING

1шт.
