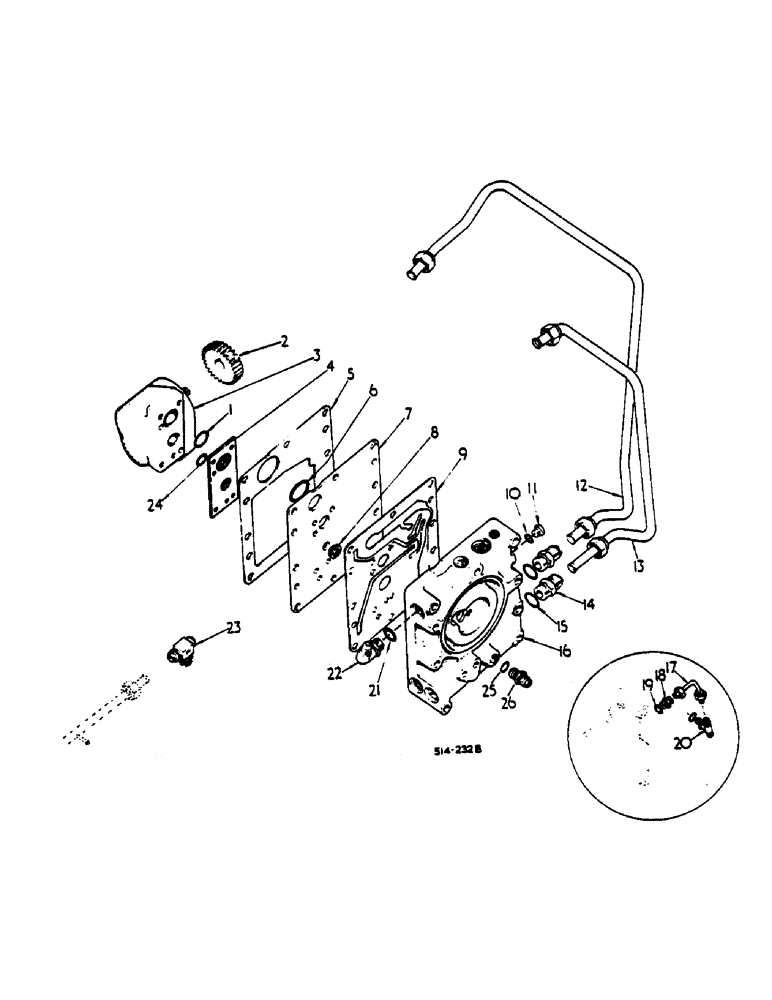

Запчасти Case IH 385 (00J22) - HYDRAULIC POWER SUPPLY AND M.C. VALVE (07) - HYDRAULICS

1

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

Pump suction port

1шт.

2

406793R2

GEAR

HYD PUMP DRIVEN 20T - 385

1шт.

2

544908R1

GEAR

HYD PUMP DRIVEN 21T

1шт.

2

406764R1

PINION

GEAR, HYD PUMP DRIVEN 27T

1шт.

19258R1

LOCK NUT,1/2"-20, GB

1/2-20 ESNA STOP

1шт.

3

93835C92

PUMP, HYDRAULIC

1шт.

3

84573150R

REMAN-HYD PUMP

385(1/84-12/90), 484(1/77-12/81), Both (EUROPE), 485(1/81-12/85), All INTERNATIONAL DIESEL TRACTOR, Reman for New PN 93835C92

1шт.

3

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

73234C92

PACKAGE,SERVICE

O-RING AND GASKET

1шт.

3

66513C92

PUMP, HYDRAULIC

HYD GEAR 200900LAD - NOT SERVICED

1шт.

373244R91

SEAL

PUMP SHAFT

1шт.

F9883

SPRING

BALL CHECK

1шт.

211-1007

BALL,7/32" Dia

1шт.

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

71775C1

REPAIR KIT

O-RING AND GASKET

1шт.

3

93835C92

PUMP, HYDRAULIC

HYD GEAR - PLESSEY

1шт.

3

84573150R

REMAN-HYD PUMP

385(1/84-12/90), 484(1/77-12/81), Both (EUROPE), 485(1/81-12/85), All INTERNATIONAL DIESEL TRACTOR, Reman for New PN 93835C92

1шт.

3

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Pump Shaft

1шт.

70230C1

SEAL KIT

7363, Serial Range: -7363

1шт.

70230C1

SEAL KIT

248, Serial Range: -858

1шт.

1502030C1

SEAL KIT

385 485, Start Serial: 7364

1шт.

1502030C1

SEAL KIT

248, Start Serial: 859

1шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

2шт.

772418

BOLT,Hex, 5/16" x 3 1/2", Gr 5

5/16-18 X 3-1/2 HEX HD CAP

2шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

PUMP MOUNTING BOLT

4шт.

3

66513C92

PUMP, HYDRAULIC

HYD GEAR - PLESSEY

1шт.

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Pump Shaft

1шт.

70230C1

SEAL KIT

UP TO S/N XXX - UP TO S/N XXX

1шт.

1502030C1

SEAL KIT

S/N XXX UP - S/N XXX UP

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

413-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

5/16-18 X 3-3/4 HEX HD CAP

2шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

PUMP MTG BOLT

4шт.

4

- NOT USED -

1шт.

5

401736R4

GASKET

MULTIPLE CONTROL VALVE HV

1шт.

6

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

Inlet port

1шт.

7

405458R2

LARGE PLATE

PLATE, LARGE MULTIPLE CONTROL VALVE

1шт.

8

1970904C1

RING,19.51mm ID x 24.84mm OD x 3.54mm Thk

RECTANGULAR

1шт.

9

253547A1

GASKET

MULTIPLE CONTROL VALVE BODY

1шт.

10

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube

1шт.

11

9410356

PLUG

7/16-20 STR THD O-RING BOSS

1шт.

12

66761C1

TUBE ASSY.

DRAFT CONTROL RETURN

1шт.

13

66764C1

PIPE

M C VALVE BY PASS

1шт.

14

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-L4 C-Z 37 DEG HYD FLARED TUBE SHORT SWIVEL

2шт.

15

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD TUBE

2шт.

16

94281C98

VALVE

MULTIPLE CONTROL - FOR COMPONENTS, SEE LIST OF PARTS UNDER DETAILS OF MULTIPLE CONTROL VALVE

1шт.

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

9шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 X 3-1/2 HEX HD CAP

1шт.

492-11038

LOCK WASHER,3/8"

10шт.

17

539835R2

TUBE ASSY.

IPTO PRESSURE - TRACTOR W/IPTO

1шт.

18

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

7/16-20 C-Z 37 DEG HYD FLARED TUBE SHORT SWIVEL - TRACTORS W/IPTO

1шт.

19

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube, Tractors with IPTO

2шт.

20

9411115

TEE,7/16"-20, 37 Degree x 7/8"-14, O-Ring Br

7/16-20 C-Z 37 DEG HYD FLARED TUBE

1шт.

9403369

CAP,37 Degree, 7/16"-20

7/16-20 C-Z 37 DEG HYD FLARED TUBE - TRACTORS W/IPTO

1шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

22

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 C-Z 37 DEG HYD FLARED TUBE ADJ STR THD 90 DEG

1шт.

23

1500561C1

ELBOW

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

24

4033/25683

GASKET

11/16 X 7/8 X 3/32 - PUMP PRESSURE PORT

1шт.

25

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

57577C1

CHECK VALVE

1шт.

3123364R1

SEAL

HYD PUMP - USED W/PUMP 128180C91

1шт.

69352C1

SEAL

HYD PUMP - USED W/PUMP 66513C91

1шт.

69354C1

SEAL

HYD PUMP

1шт.

69352C1

SEAL

HYD PUMP - USED W/PUMP 406763R91

1шт.

3123364R1

SEAL

HYDRAULIC PUMP - USED W/PUMP CESSNA 128180C91

1шт.

B505523

ADHESIVE

FLUID, ADHESIVE TUBE

1шт.

544909R2

LARGE PLATE

PLATE, LARGE PUMP MOUNTING - USED W/PUMP 66513C91

1шт.

537517R1

WASHER

PUMP IDENTIFICATION

1шт.

1502030C1

SEAL KIT

FOR SERVICE ON 66513C92 AND 406763R92 - CONSISTS OF

1шт.

NSS

NOT SOLD SEPARAT

SEAL, SHAFT

1шт.

NSS

NOT SOLD SEPARAT

RING, BACK-UP

2шт.

NSS

NOT SOLD SEPARAT

RING, PRESSURE LOADING

2шт.

NSS

NOT SOLD SEPARAT

PAMPHLET, SERVICE INSTRUCTIONS

1шт.
