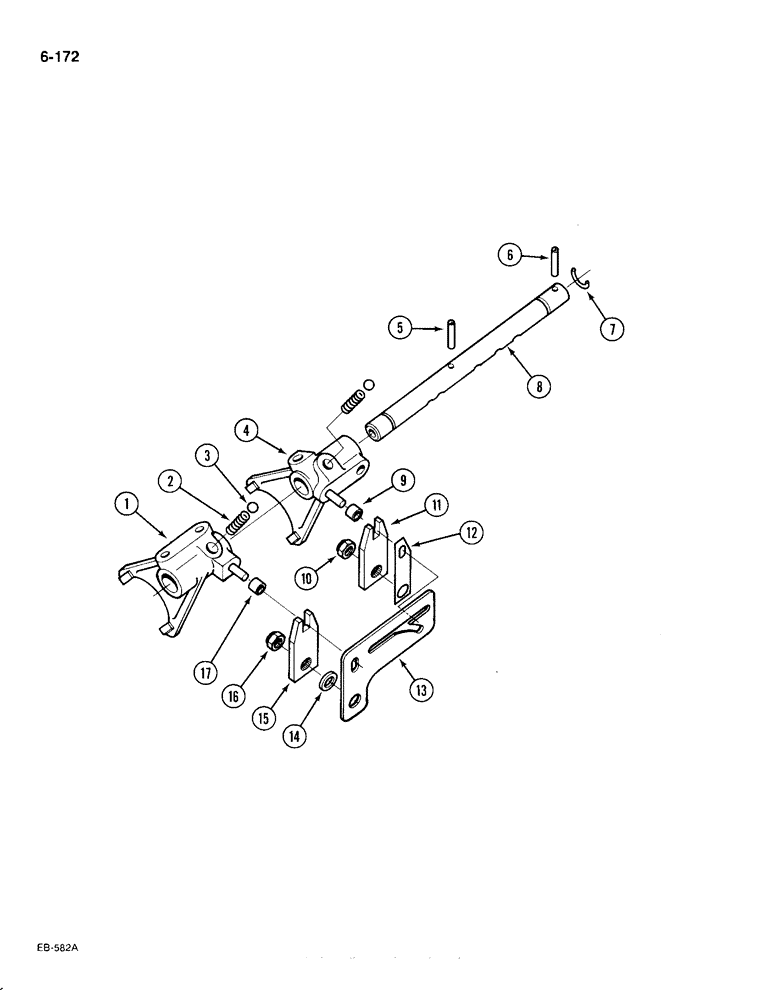

Запчасти Case IH 385 (6-172) - GEAR SHIFT MECHANISM, RANGE TRANSMISSION, WITHOUT FORWARD AND REVERSE (06) - POWER TRAIN

1

1286428C1

FORK

- front

1шт.

2

103062C1

SPRING

- poppet ball

2шт.

3

17013R1

BALL,13/32" Dia

2шт.

4

1286416C1

FORK

- rear

1шт.

5

20122R1

PIN,1/4" x 1 1/2", Coiled

1шт.

6

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

7

148501C1

RING, SNAP

RING - retaining

2шт.

8

1286415C1

RAIL

- range shift fork

1шт.

9

1286423C1

BUSHING

- range shift pin

1шт.

10

19605R1

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2 inch NC, grade 5

1шт.

10

131-208

SPECIAL NUT,1/2"-13

NUT - lock, 1/2 inch NC, optional to P/N 19605R1

1шт.

11

1286421C1

ARM

- range shift, inner

1шт.

12

1286444C2

STRIP

PLATE - retainer

1шт.

13

1286419C1

PLATE, LOCKING

PLATE - interlock, range

1шт.

14

21018R1

WASHER

- flat, 0.781 x 1.5 x 0.027 inch

1шт.

16066R1

WASHER

- flat, 0.781 x 1.5 x 0.054 inch

1шт.

15

1286421C1

ARM

- range shift, inner

1шт.

16

19605R1

LOCK NUT,1/2"-13, GB

NUT - lock, 1/2 inch NC, grade 5

1шт.

16

131-208

SPECIAL NUT,1/2"-13

NUT - lock, 1/2 inch NC optional to P/N 19605R1

1шт.

17

1286423C1

BUSHING

- range shift pin - range shift pin.

1шт.
