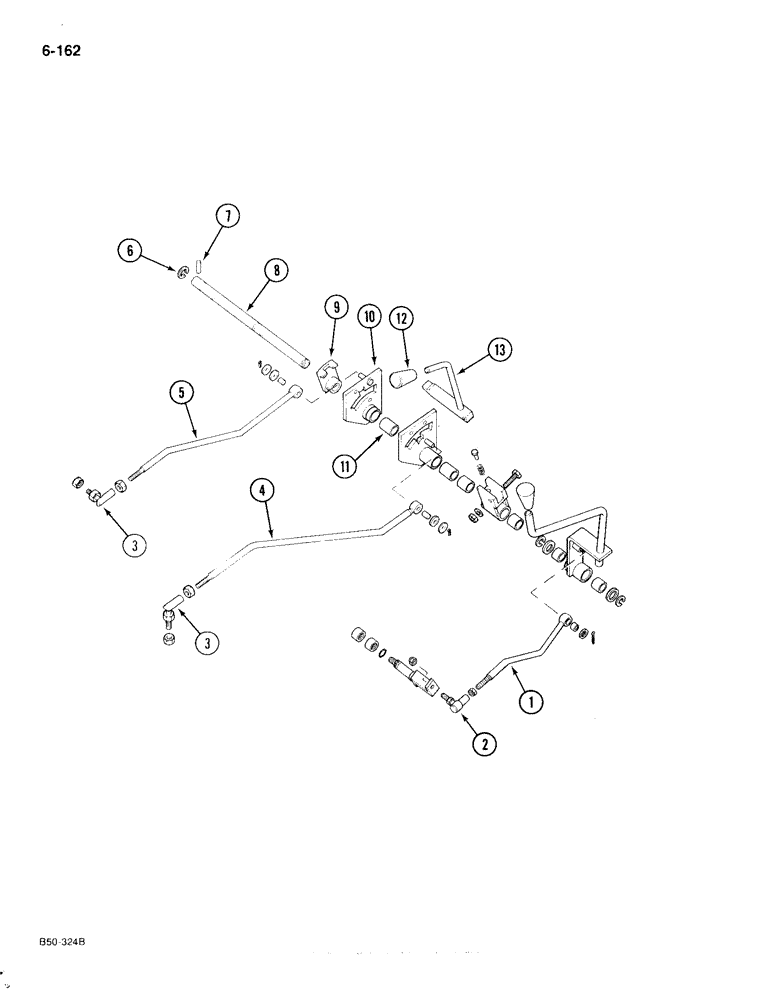

Запчасти Case IH 385 (6-162) - TRANSMISSION CONTROL, EXTERNAL, WITH FORWARD AND REVERSE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
3129232R91
ROD ASSY.
ROD - range shift, rear
1шт.
3129156R1
BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L
- rod eye end
1шт.
83723R1
WAVE WASHER
- spring
1шт.
Q3641
WASHER
- plain, 0.406 x 0.625 x 0.054 inch
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
865197R1
CLEVIS PIN,3/8" x 1.218"
PIN - clevis, 3/8 x 1-7/32 inch
1шт.
2
653867C1
BALL JOINT
JOINT - ball, 3/8 inch
1шт.
124925
JAM NUT,Jam, 3/8"-24, G5
1шт.
3048059R91
LOCK NUT
NUT - lock, 3/8 inch NF
1шт.
3
1500497C1
BALL JOINT
JOINT - ball
2шт.
1500536C1
JAM NUT
- hex, jam 7/16 inch NF
2шт.
231-4617
LOCK NUT,7/16"-20, GB
NUT - hex lock, 7/16 inch NF, grade 5 optional to P/N 1500536C1
2шт.
702455R1
LOCK NUT
- hex lock, 7/16 inch NF, optional to P/N 1500536C1
2шт.
4
3129226R91
ROD ASSY.
ROD - speed shift, 3rd/4th
1шт.
3129156R1
BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L
- rod eye end
1шт.
83723R1
WAVE WASHER
- spring
1шт.
Q3641
WASHER
- plain, 0.406 x 0.625 x 0.054 inch
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
5
3129222R91
ROD ASSY.
ROD - speed shift, 1st/2nd
1шт.
3129156R1
BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L
- rod eye end
1шт.
83723R1
WAVE WASHER
- spring
1шт.
Q3641
WASHER
- plain, 0.406 x 0.625 x 0.054 inch
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
6
454331R1
SNAP RING,#87, Ext
1шт.
7
617940R1
PIN,5/16" x 1 3/4", Coiled
1шт.
8
3129270R1
SHAFT
- idle, range shift lever
1шт.
9
3129218R2
PLATE
GATE - shift
1шт.
617940R1
PIN,5/16" x 1 3/4", Coiled
1шт.
10
3129211R91
LEVER ASSY.
LEVER - speed shift, 1st/2nd, Includes: Ref.11
1шт.
11
3129207R1
BUSHING,22.25mm ID x 25.48mm OD x 30mm L
- lever
1шт.
12
3129267R1
BALL KNOB
KNOB - range lever
1шт.
13
3129265R2
LEVER
- speed shift
1шт.
Ref. 13 P/N 3129265R2, SB 00688 Selector arm housing P/N 3129214R92.
1шт.
