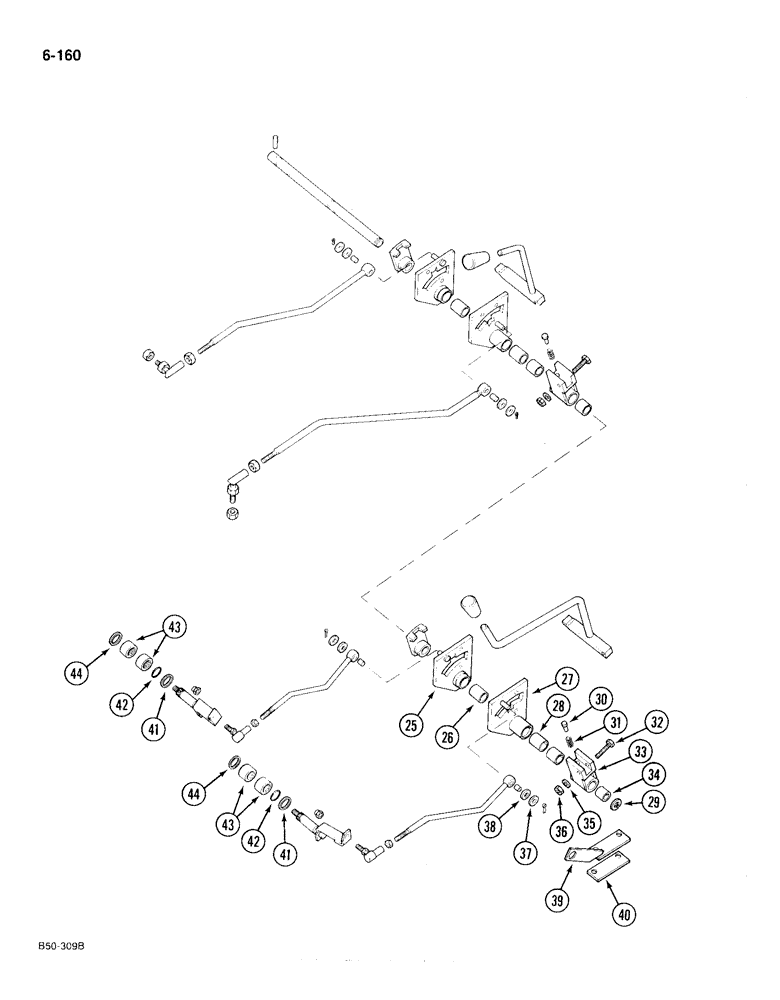

Запчасти Case IH 385 (6-160) - TRANSMISSION CONTROL, EXTERNAL, WITHOUT FORWARD AND REVERSE (06) - POWER TRAIN

25

3129210R91

LEVER ASSY.

LEVER - range rear, Includes: Ref. 26

1шт.

25

1536634C1

LEVER

- range rear, new, Includes: Ref. 26

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

26

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

- lever

1шт.

27

3129209R91

LEVER ASSY.

LEVER - range, front, Includes: Ref. 28

1шт.

27

1536635C1

LEVER ASSY.

LEVER - range, front, new, Includes: Ref. 28

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

28

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

- lever

1шт.

29

454331R1

SNAP RING,#87, Ext

2шт.

615192R1

WASHER

- flat, 0.906 x 1.25 x 0.027 inch

2шт.

30

22938R1

HEADED PIN,5/16" x 1/2"

PIN, HEADED, 5/16" x 1/2"

2шт.

31

71486C1

SPRING

- compression

2шт.

32

1282929C1

BOLT,Hex, 3/8" - 16 x 6"

- Selector arm pivot

2шт.

33

3129214R92

HOUSING ASSY.

HOUSING - selector arm, Includes: Ref. 34

1шт.

34

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

2шт.

35

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

2шт.

36

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, grade 8

2шт.

37

Q3641

WASHER

- plain, 0.406 x 0.625 x 0.054 inch

4шт.

38

83723R1

WAVE WASHER

- spring

4шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

39

1287659C1

SUPPORT

BRACKET - shift lever

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

- hex, 5/8 NC x 1-1/2 inch, grade 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

40

1287660C1

PLATE

- shim

1шт.

41

21018R1

WASHER

- flat, 0.781 x 1.5 x 0.027 inch

2шт.

42

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- oil

2шт.

43

359955R91

BEARING, NEEDLE,Needle, 19.04mm ID x 25.4mm OD x 15.76mm W

BEARING - needle

4шт.

44

21018R1

WASHER

- flat, 0.781 x 1.5 x 0.027 inch

1шт.

44

16066R1

WASHER

- flat, 0.781 x 1.5 x 0.054 inch

1шт.
