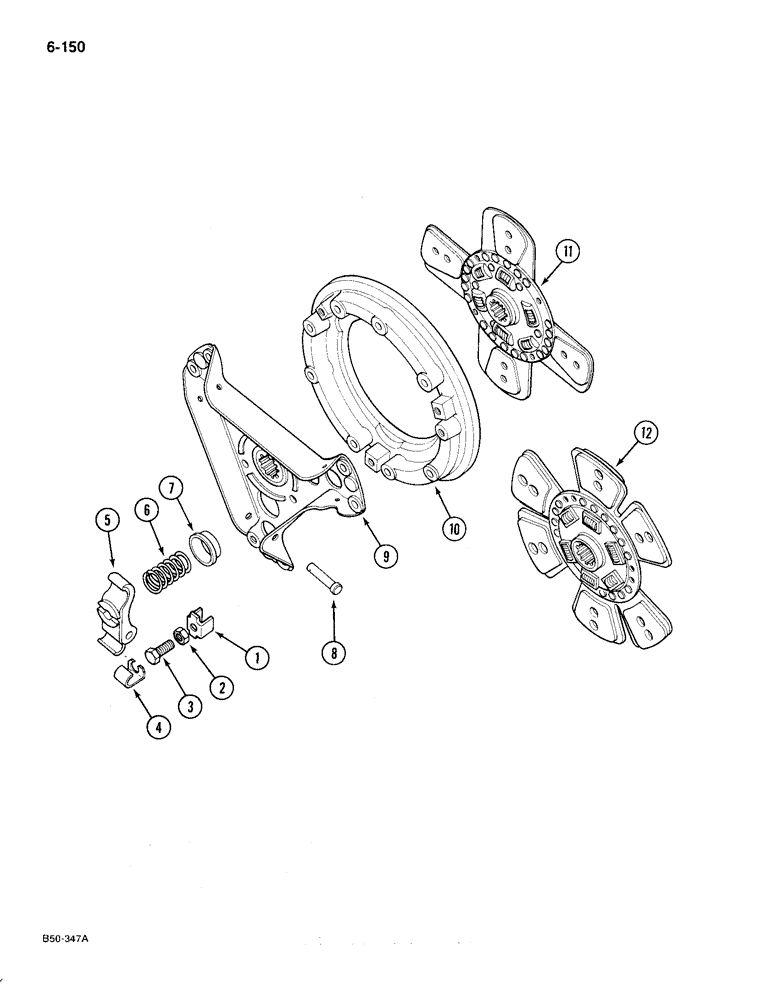

Запчасти Case IH 385 (6-150) - CLUTCH, 11 INCH LAYCOCK (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
92602C91
CLUTCH ASSEMBLY
COVER - clutch pressure plate
1шт.
P/N 92602C91 and 3121507R94 Work together and use Kit P/N 92605C1 to Service.
1шт.
92602C92R
REMAN-CLUTCH PLATE,Pressure Plate Only
Remanufactured Clutch Plate 11 in 10 Tooth Hub,
1шт.
92602C92C
CORE-CLUTCH PLATE
Return Part Number
1шт.
179817
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd
BOLT, Hex, 5/16"-18 x 7/8", G5, Full Thd
6шт.
1
NSS
NOT SOLD SEPARAT
CLIP - wear, order: kit P/N 92607C1
3шт.
2
NSS
NOT SOLD SEPARAT
LOCKNUT - order: kit P/N 92607C1
3шт.
3
NSS
NOT SOLD SEPARAT
SCREW - order: kit P/N 92607C1
3шт.
4
NSS
NOT SOLD SEPARAT
CLIP - return, order: kit P/N 92607C1
3шт.
5
NSS
NOT SOLD SEPARAT
LEVER - order: kit P/N 69912C1
3шт.
6
NSS
NOT SOLD SEPARAT
SPRING - pressure, order: kit P/N 69910C2
3шт.
7
NSS
NOT SOLD SEPARAT
CUP - spring, order: kit P/N 69910C2
3шт.
8
NSS
NOT SOLD SEPARAT
PIN - pivot, order: kit P/N 69912C1
3шт.
9
NSS
NOT SOLD SEPARAT
BRACKET ASSEMBLY - order: kit P/N 1500655C92
1шт.
10
NSS
NOT SOLD SEPARAT
PLATE - pressure, order: P/N 92605C1
1шт.
11
3121506R92
CLUTCH & DISC ASSY
PLATE ASSEMBLY - clutch driven disc
1шт.
P/N 1500655C92 and 3121506R92 Work together and use kits P/N 69912C1 and 69910C2.
1шт.
12
3121507R94
CLUTCH DISC
CLUTCH DISK PLATE - clutch driven disc, 6 pad
1шт.
P/N 92602C91 and 3121507R94 Work together and use Kit P/N 92605C1 to Service.
1шт.
12
293248A1R
REMAN-CLUTCH DISC
385 P.I.N. 5001 to 5287, & P.I.N. 18001 & Aft., w/Laycock Clutch, Reman For New P/N 3121507R94,
1шт.
12
293248A1C
CORE-CLUTCH DISC
Return Part Number
1шт.
12
1944253C1
REMAN-CLUTCH PLATE
Plate - clutch driven disc assembly, 6 pad, re-manufactured
1шт.
12
1944252C1
CORE-CLUTCH PLATE
Return Part Number
1шт.
92607C1
PACKAGE
KIT - adjusting screw and clip
1шт.
69912C1
KIT
KIT - lever and pivot pin.
1шт.
69910C2
KIT
KIT - pressure spring and cup
1шт.
Выбрано товаров: 27
