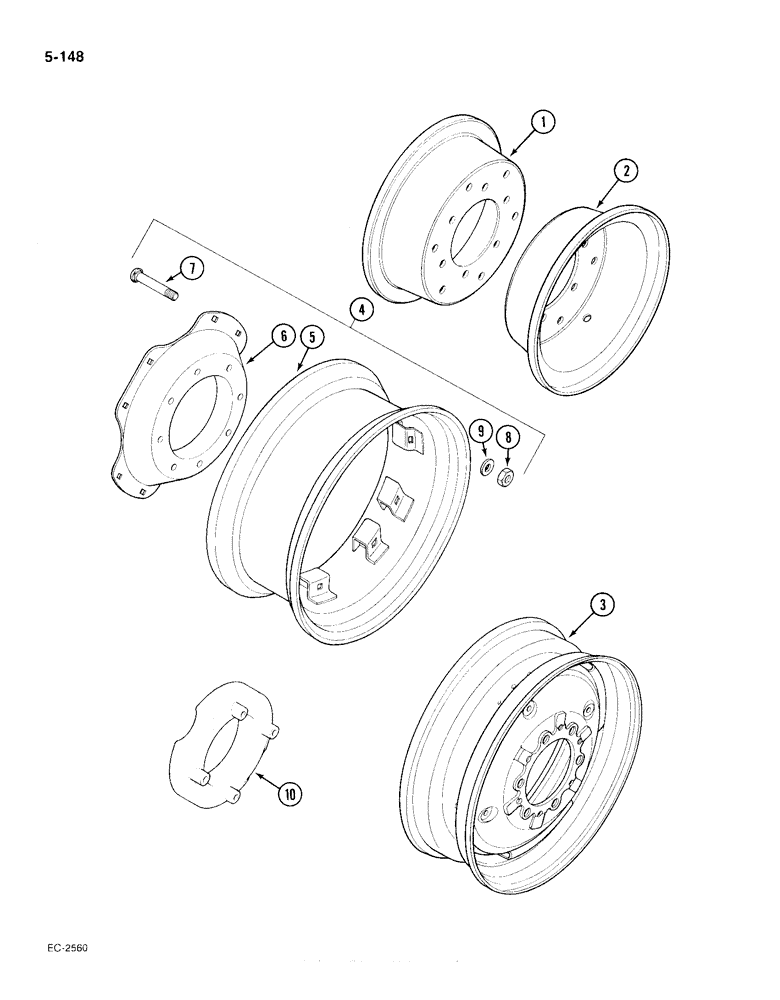

Запчасти Case IH 385 (5-148) - FRONT WHEELS (05) - STEERING

1

386081R1

WHEEL

- front, inner half, 9.00-10, low profile tractor

2шт.

2

386082R1

WHEEL

- front, outer half, 9.00-10, low profile tractor

2шт.

86837293

SHAFT

BOLT - hex, 1/2 NF x 1 inch, grade 5, low profile tractor

12шт.

120371

NUT,1/2"-20, G5

Low profile tractor 1/2"-20, G5

12шт.

120384

WASHER,1/2"

LOCK, , Low profile tractor 1/2"

12шт.

3

1287905C1

WHEEL

- front, complete, 12-10.50, low profile tractor

2шт.

1287905C1

WHEEL

- front, complete, 12-10.50, low profile tractor

2шт.

3

528687R1

WHEEL

- complete, front disc type, W/8L-15, utility tractor

2шт.

3

1265032C1

WHEEL

- front disc type, 5.50-16 DC rim, utility tractor

2шт.

3

361714R91

WHEEL ASSY.

WHEEL - front disc type, W/4.25-16, utility tractor

2шт.

3

364343R92

WHEEL

- front, complete, W5.50-16, utility tractor

2шт.

387897R91

VALVE STEM

VALVE - TR 415, utility tractor

2шт.

3

614424R91

WHEEL ASSY.

WHEEL - front disc type, 6LB-15, utility tractor

2шт.

4

NSS

NOT SOLD SEPARAT

WHEEL - W7-24, 4 wheel drive tractors, Includes: Ref. 5 thru 9, utility tractor

2шт.

5

99980C1

RIM

- wheel, W7-24, 4 wheel drive tractors, utility tractor

1шт.

6

99976C1

DISC, WHEEL

DISC - 24 inch wheel, 4 wheel drive tractors, utility tractor

1шт.

7

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm x 74 mm, class 8.8, 4 Wheel drive tractors, Utility tractor

8шт.

8

1335134C1

NUT

- hex, 16 mm, 4 wheel drive tractors, utility tractor

8шт.

9

1335135C1

WASHER

- flat, 17 x 33 x 5 mm, 4 wheel drive tractors, utility tractor

8шт.

10

370685R1

WEIGHT

- front wheel, 50 lbs. approx., 2 for first set, tractors with 16, 18 and 20 inch wheels, utility tractor

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Tractors with 16, 18 and 20 inch wheels, Utility tractor 1/2"-13, G5

4шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

- hex, 1/2 NC x 2 inch, grade 5, ZND, tractors with 16, 18 and 20 inch wheels, utility tractor

4шт.

10

370685R1

WEIGHT

- front wheel, 50 lbs. approx., 2 for second set, tractors with 16, 18 and 20 inch wheels, utility tractor

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Tractors with 16, 18 and 20 inch wheels, Utility tractor 1/2"-13, G5

4шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch, grade 5, ZND, tractors with 16, 18 and 20 inch wheels, utility tractor

4шт.
