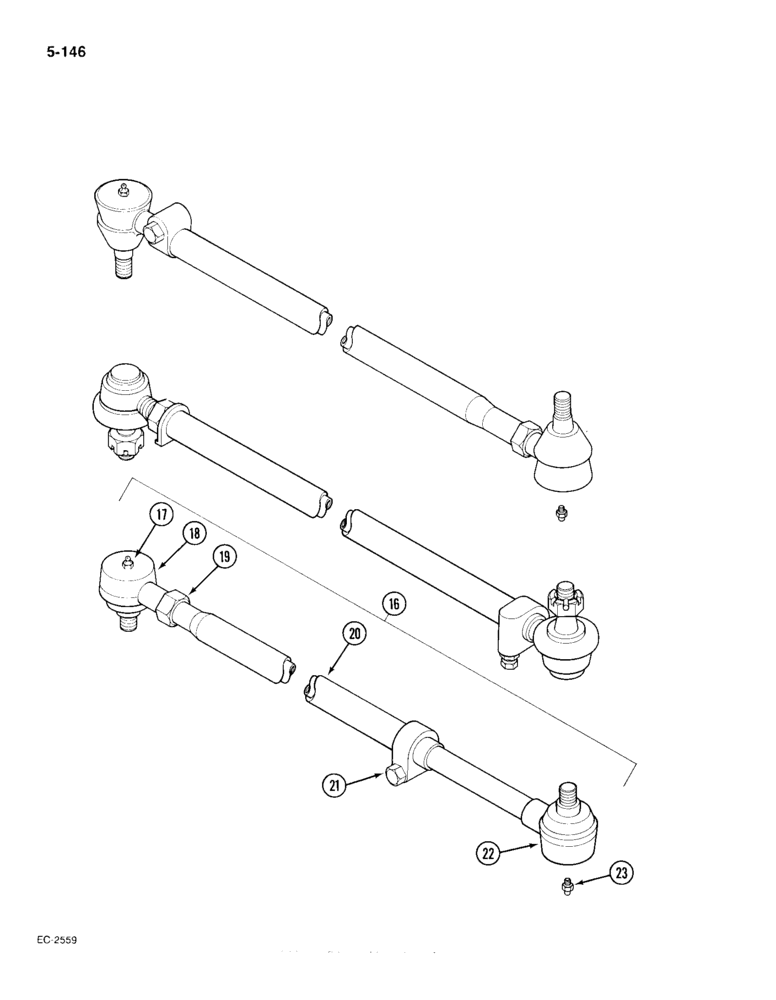

Запчасти Case IH 385 (5-146) - TIE ROD (CONTD) (05) - STEERING

16

NSS

NOT SOLD SEPARAT

ROD - tie, adjustable, Includes: Ref. 17 thru 23

2шт.

17

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

1шт.

18

527658R91

BALL JOINT

END - socket, right

1шт.

18

527658R91GV

TIE-ROD

Value, Tie Rod End

1шт.

102648

SLOTTED NUT,9/16"-18, G5

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

358900R1

SEAL

COVER - dust

1шт.

19

390686R1

JAM NUT

- hex jam, 11/16 inch NF

1шт.

20

527659R2

TUBE

- tie rod

1шт.

21

43747D

CLAMP

- tie rod tube

1шт.

537165R1

BOLT,Hex, 7/16" - 20 x 1-7/8", Gr 5

BOLT - hex, 7/16 NF x 1-3/4 inch

1шт.

9421096

LOCK WASHER,7/16"

1шт.

271505

BODY

- hex jam, 7/16 inch NF, grade 5

1шт.

22

527660R91

END

- left

1шт.

22

65082C91

END

- left, optional to P/N 527660R91

1шт.

102648

SLOTTED NUT,9/16"-18, G5

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

358900R1

SEAL

COVER - dust

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , drive type 1/4"-28 NPT x .54" lg

1шт.
