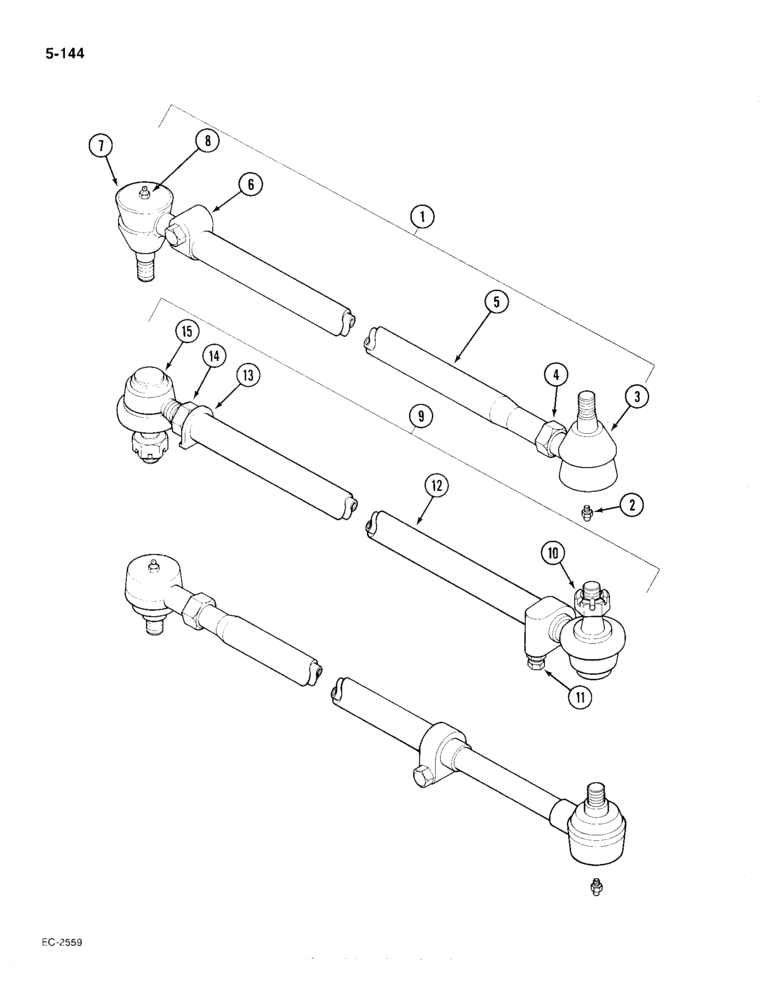

Запчасти Case IH 385 (5-144) - TIE ROD (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
NSS
NOT SOLD SEPARAT
ROD - adjustable tie, Includes: Ref. 2 thru 8
2шт.
2
87415
LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive
NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive
1шт.
3
527658R91
BALL JOINT
END - socket, right
1шт.
3
527658R91GV
TIE-ROD
Value, Tie Rod End
1шт.
102648
SLOTTED NUT,9/16"-18, G5
1шт.
103385
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
1шт.
358900R1
SEAL
COVER - dust
1шт.
4
390686R1
JAM NUT
- hex jam, 11/16 inch NF
1шт.
5
67529C1
TUBE,0.766" ID, 1.005" OD, 16.21" Length
1шт.
9421096
LOCK WASHER,7/16"
1шт.
271505
BODY
- hex jam, 7/16 inch NF, grade 5
1шт.
6
43747D
CLAMP
- tie rod tube
1шт.
537165R1
BOLT,Hex, 7/16" - 20 x 1-7/8", Gr 5
BOLT - hex, 7/16 NF x 1-3/4 inch
1шт.
9421096
LOCK WASHER,7/16"
1шт.
271505
BODY
- hex jam, 7/16 inch NF, grade 5
1шт.
7
65079C91
END
- socket, left
1шт.
102648
SLOTTED NUT,9/16"-18, G5
1шт.
103385
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
1шт.
358900R1
SEAL
COVER - dust
1шт.
8
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , drive type 1/4"-28 NPT x .54" lg
1шт.
9
NSS
NOT SOLD SEPARAT
ROD - adjustable tie, Includes: Ref. 10 thru 15
2шт.
102648
SLOTTED NUT,9/16"-18, G5
2шт.
103385
COTTER PIN,1/8" x 1"
PIN, SPLIT (COTTER), 1/8" x 1"
2шт.
10
3116406R3
BALL JOINT
SOCKET - outer, A.P., adjustable straight front axle
1шт.
10
3129380R1
JOINT
- ball, dimple end, swept back adjustable front axle
1шт.
10
1332805C1
BALL JOINT
SOCKET - outer, O.M.G., adjustable straight front axle
1шт.
11
3116409R1
SET SCREW,Hex, 7/16" - 14 x 1"
SCREW - set
1шт.
3116410R1
LOCK NUT
NUT - lock
1шт.
12
3116408R1
TUBE,20.75 mm ID, 28 mm OD, 412 mm Length
- centre, adjustable straight front axle
1шт.
12
3129379R1
TUBE,20.7 mm ID, 28 mm OD, 419 mm Length
- center, swept back adjustable front axle
1шт.
13
3116411R1
LOCK WASHER
- tab
1шт.
14
3116412R1
LOCK NUT
NUT - lock
1шт.
15
3116407R3
BALL JOINT
SOCKET - inner
1шт.
