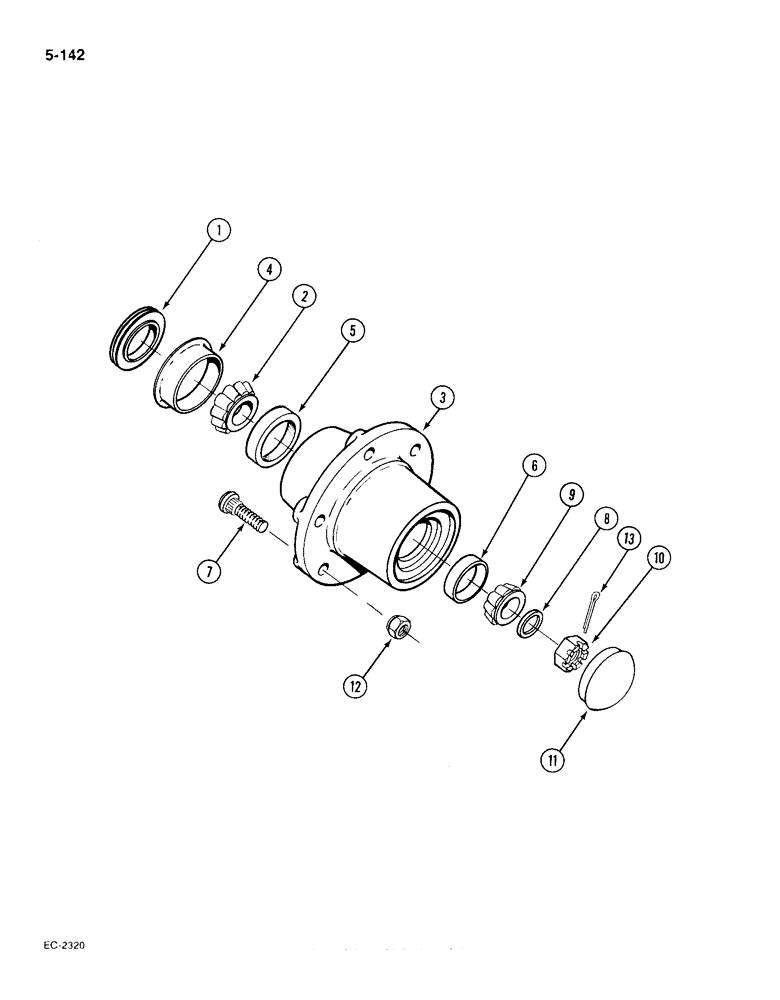

Запчасти Case IH 385 (5-142) - WHEEL HUBS AND CAPS, ADJUSTABLE STRAIGHT FRONT AXLE (05) - STEERING

1

405835R91

SEAL

- dust, front wheel

2шт.

1

530104R91

SEAL

SEAL - dust optional to P/N 405835R91

2шт.

2

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING - cone inner

2шт.

2

371897R91

BEARING ASSY,1.315" ID x 2.5625" OD x 0.72"

BEARING - cone optional to P/N 618023R91

2шт.

3

406294R21

HUB ASSY.

HUB - front wheel, Includes: 4 thru 7

2шт.

4

406295R2

RING

- wear

1шт.

5

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

1шт.

5

371898R1

BEARING, CUP

Inner, Optional to P/N 618024R1

1шт.

6

371883R1

BEARING CUP

Outer

1шт.

6

371908R1

BEARING CUP

Outer, Optional to P/N 371883R1

1шт.

7

528803R1

BOLT,1/2" - 20 x 1.75"

- Wheel mounting

6шт.

8

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- hardened

2шт.

9

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer

2шт.

9

371907R91

ROLLER BEARING,0.8437" ID x 1.9687" OD x 0.72"

- cone, outer, optional to P/N 371882R91

2шт.

10

427639

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF, grade 5

2шт.

11

612884R1

HUB CAP

CAP - hub, front wheel

2шт.

12

483879R2

SPECIAL NUT

- wheel retaining

12шт.

13

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.
