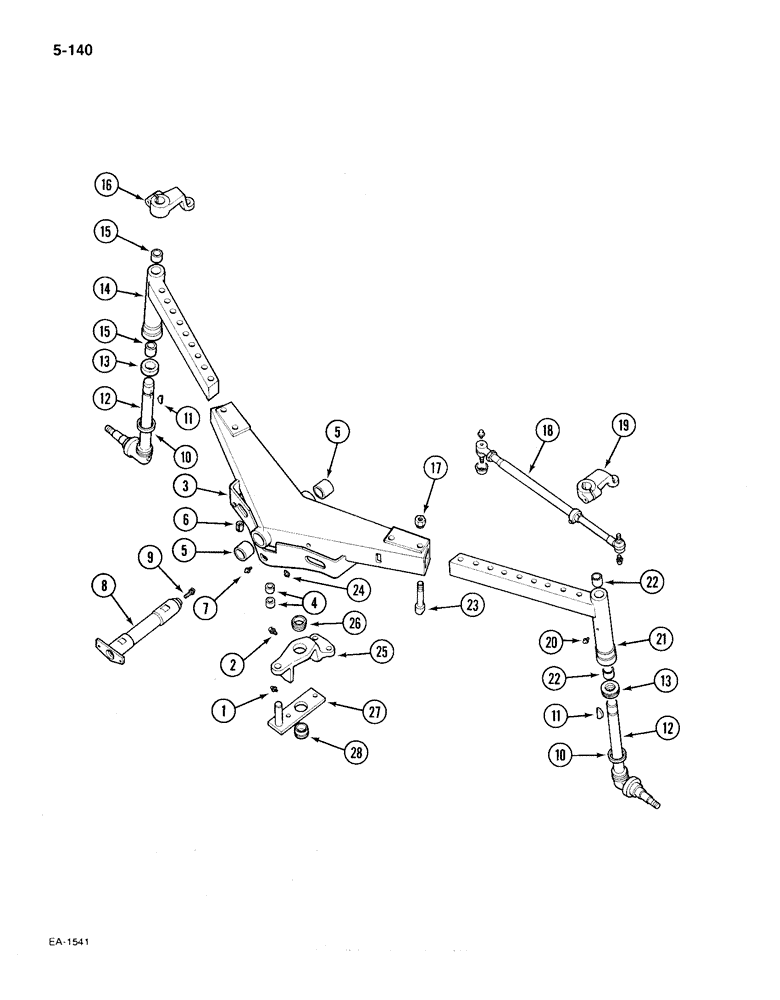

Запчасти Case IH 385 (5-140) - SWEPT BACK FRONT AXLE, ADJUSTABLE, 48 TO 80 INCH TREAD (05) - STEERING

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING - grease, straight drive type, 3/16 inch

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree drive type, 3/16 inch

1шт.

3

539158R93

AXLE

- front centre section, Includes: Ref. 4 thru 6

1шт.

4

405574R1

BUSHING

- cylinder mounting bracket

2шт.

4

376160R1

BUSHING,25.4mm ID x 28.7mm OD x 19.3mm L

- optional to P/N 405574R1

2шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

- pivot

2шт.

6

3125304R1

BUSHING

- spring steel

1шт.

7

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING - grease, 45 degree drive type, 1/4 inch

1шт.

8

539128R1

SHAFT ASSY.

SHAFT - front axle pivot

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, grade 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 90 degree, 1/8 inch PTF

1шт.

10

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

- Felt, Steering knuckle

2шт.

11

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

12

405840R12

KNUCKLE

- steering, low spindle

2шт.

13

405831R91

BEARING

- thrust, steering knuckle

2шт.

527295R91

THRUST BEARING,44.45mm ID x 68.4mm OD x 17.6mm W

BEARING - optional to P/N 405831R91

2шт.

369131R91

THRUST BEARING

- optional to P/N 405831R91

2шт.

14

66702C91

EXTENSION

- front axle, right, Includes: Ref. 15

1шт.

15

376099R1

BUSHING

- front axle extension

2шт.

16

405837R1

ARM

- steering knuckle, right

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

102637

NUT,1/2"-13, G5

1шт.

17

405576R1

NUT

- front axle

4шт.

18

NSS

NOT SOLD SEPARAT

ROD - tie, with tie rod tube clamp, see Fig. 5-144

2шт.

NSS

NOT SOLD SEPARAT

ROD - tie, with tie rod tube lock nut, see Fig. 5-144

2шт.

19

405836R1

ARM

- steering knuckle, left

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

102637

NUT,1/2"-13, G5

1шт.

20

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING - grease, drive type, 1/4 inch

2шт.

21

66701C91

EXTENSION

- front axle, left, Includes: Ref. 22

1шт.

22

376099R1

BUSHING

- front axle extension

2шт.

23

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder

4шт.

24

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING - grease, drive type, 1/4 inch

1шт.

25

405585R11

ARM

- centre, power steering, Includes: Ref. 26

1шт.

26

379748R1

BUSHING

1шт.

27

405580R11

BAR ASSY.

BAR - power steering cylinder, Includes: Ref. 28

1шт.

28

379748R1

BUSHING

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

67976C1

PLATE, LOCKING

STRIP - lock, steering centre arm bolt

1шт.
