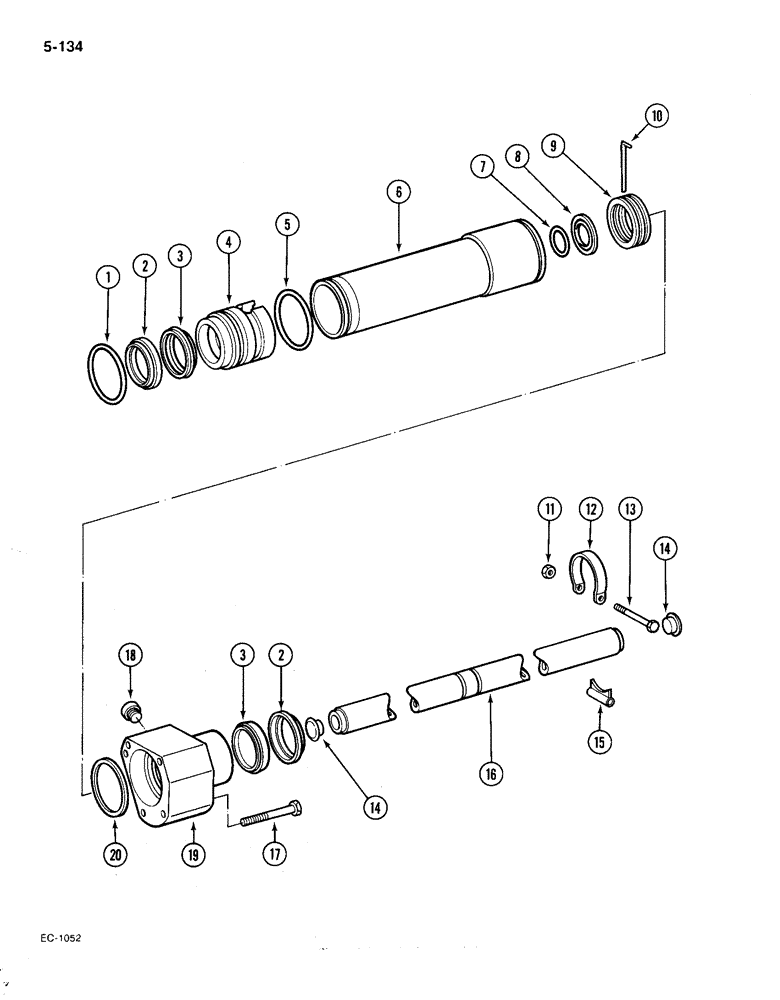

Запчасти Case IH 385 (5-134) - STEERING CYLINDER, 4 WHEEL DRIVE, MFD AXLES APL-330 AND APL-325, TRACTORS P.I.N. 18001 AND AFTER (05) - STEERING

NSS

NOT SOLD SEPARAT

CYLINDER - steering, Includes: Ref. 1 thru 20 and P/N 81347C1

1шт.

1

81339C1

O-RING,62mm ID x 3mm Width

- 62 x 3 mm

1шт.

2

81340C1

SCRAPER RING

RING - scraper

2шт.

3

81341C1

RING,32mm ID x 40mm OD x 6mm Thk

- grooved

2шт.

4

81338C1

GUIDE

1шт.

5

81337C1

O-RING,3mm Thk x 64mm ID

- 64 x 3 mm

2шт.

6

81336C1

HYD CYL SLEEVE

CYLINDER

1шт.

7

81345C1

O-RING,32mm ID x 3mm Width

- 32 x 3 mm

1шт.

8

81346C1

GASKET

GASKET

1шт.

9

81343C1

PISTON

1шт.

10

81344C1

ELECTRICAL WIRE

WIRE - lock

1шт.

11

43362

NUT,M8 x 1.25, Cl 10

- hex jam, 8 mm

2шт.

12

99094C1

PLATE

- stop, 50/45 degrees

2шт.

13

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

- hex, M8 x 50 mm, class 8.8

2шт.

14

81359C1

PLUG

- screw

2шт.

15

81361C1

LOCKING PLATE

PLATE - spacing

2шт.

16

81342C1

ROD

- piston

1шт.

17

30031R1

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

- hex, M10 x 80 mm, class 10.9

5шт.

18

81362C1

PLUG

- oil filler

1шт.

19

81358C1

BLOCK

GUIDE

1шт.

20

81357C1

SHIM

DISK - 0.9 mm

1шт.

20

81348C1

SHIM

DISK - 1.0 mm

1шт.

20

81349C1

SHIM

DISK - 1.1 mm

1шт.

20

81350C1

SHIM

DISK - 1.2 mm

1шт.

20

81351C1

SHIM

DISK - 1.3 mm

1шт.

20

81352C1

SHIM

DISK - 1.4 mm

1шт.

20

81353C1

SHIM

DISK - 1.5 mm

1шт.

20

81354C1

SHIM

DISK - 1.6 mm

1шт.

20

81355C1

SHIM

DISK - 1.7 mm

1шт.

20

81356C1

SHIM

DISK - 1.8 mm

1шт.

81347C1

RING

- guide

1шт.
