(5-130) - INTEGRAL HYDROSTATIC STEERING VALVE

Запчасти Case IH 385 (5-130) - INTEGRAL HYDROSTATIC STEERING VALVE (05) - STEERING

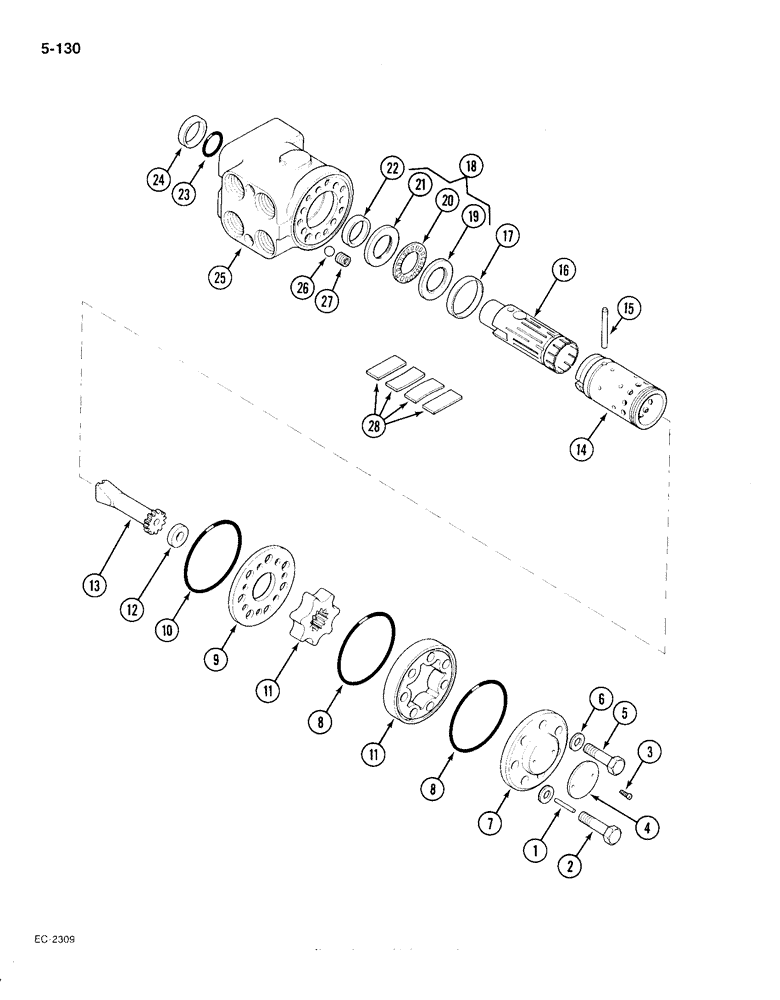

Схема запчастей Case IH 385 - (5-130) - INTEGRAL HYDROSTATIC STEERING VALVE (05) - STEERING
16
9
4
1
6
23
17
18
21
20
5
13
11
27
10
28
7
22
8
26
15
8
11
25
2
19
24
14
3
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

67698C93

VALVE

- integral, power steering, Includes: Ref. 1 thru 28, Serial Range: -18001

1шт.

1

3112271R1

PIN, ROLL

PIN - roll

1шт.

2

3146907R1

BOLT,M8 x 1 x 35mm, Drilled

- hex, with bore

1шт.

3

NSS

NOT SOLD SEPARAT

SCREW

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - rating

1шт.

5

3146908R1

BOLT,M8 x 1 x 35mm

- hex

6шт.

6

NSS

NOT SOLD SEPARAT

WASHER

7шт.

7

1500444C1

CAP

COVER - end

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING

2шт.

9

3112276R1

PLATE

- valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING

1шт.

11

538918R1

ROTOR ASSY.

GEAR - rotor, complete

1шт.

12

538916R1

SPACER

- drive shaft

1шт.

13

538915R1

DRIVE SHAFT

SHAFT - drive

1шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

15

3112269R1

PIN

- cross

1шт.

16

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

17

3112264R1

RING

1шт.

18

3234338R91

BEARING SET

- complete, Includes: Ref. 19 thru 21

1шт.

19

NSS

NOT SOLD SEPARAT

BEARING - needle

1шт.

20

NSS

NOT SOLD SEPARAT

BEARING - needle

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER - axial

1шт.

22

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING

1шт.

24

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

25

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

26

3112270R1

BALL

- steel

1шт.

27

3112272R1

BUSHING

- threaded

1шт.

28

NSS

NOT SOLD SEPARAT

SPRING - leaf

1шт.

88107C91

PUMP

VALVE - integral, power steering, Start Serial: 18001

1шт.

1500443C91

SEAL KIT

KIT - service, seal and spring, consists: of Ref. 6, 8 ,10 ,22 ,23 ,24 and 28, services valves P/N 67698C93 and P/N 88107C91

1шт.
