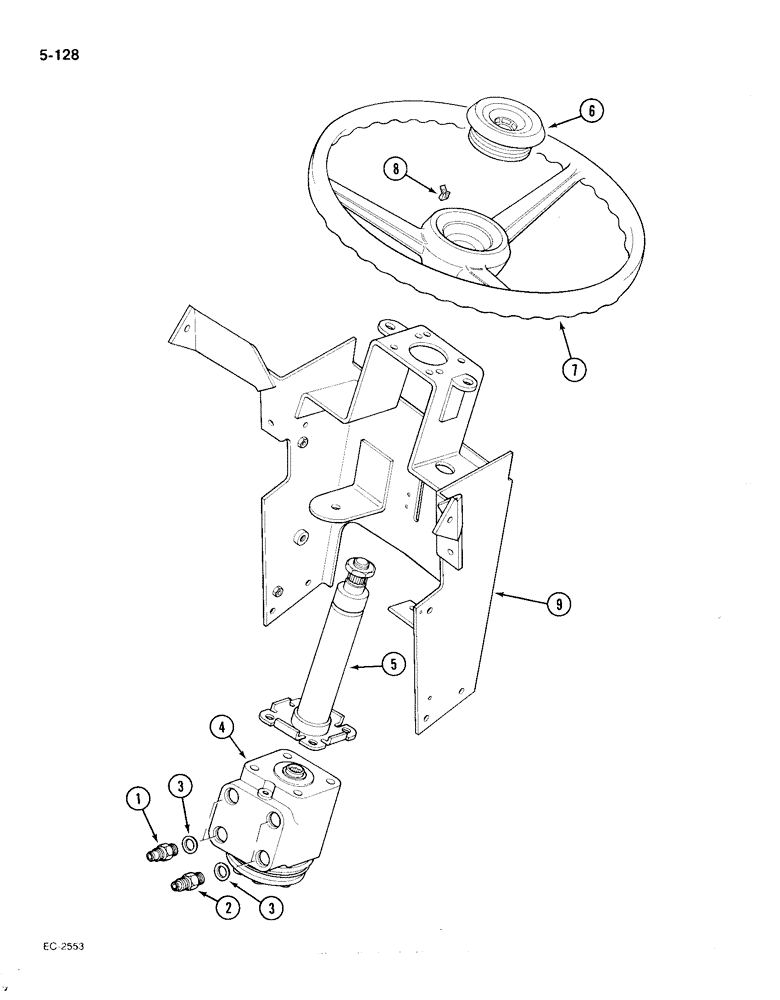

Запчасти Case IH 385 (5-128) - STEERING VALVE AND COLUMN, TRACTORS P.I.N. 18001 AND AFTER (05) - STEERING

1

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION - short, 1/2 inch OD tube

2шт.

2

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION - straight, 3/8 to 1/2 inch

2шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube, class 6

4шт.

4

88107C91

PUMP

VALVE - integral, power steering

1шт.

New O-ring between Ref. 4 and 5, P/N 1537340C1.

1шт.

5

3121187R91

SHAFT

- steering, Includes: nut P/N 368576R1

1шт.

New O-ring between Ref. 4 and 5, P/N 1537340C1.

1шт.

F19646

LOCK NUT,13/16"-20, Thin

NUT - hex, steering shaft, 13/16 inch

1шт.

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

- pipe, 3/8 x 1 inch

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

6

68837C2

CAP

- steering wheel

1шт.

7

3123597R91

HANDWHEEL

WHEEL - steering, 408 mm dia.

1шт.

7

3123302R91

HANDWHEEL

WHEEL - steering, 408 mm dia, low dish, low profile tractors

1шт.

8

3123598R1

CLIP,ELECTRICAL

CLIP - retaining, replaced with O-ring P/N 238-5149

1шт.

9

3121632R2

SUPPORT ASSY.

SUPPORT - steering, tractors with forward and reverse

1шт.

9

99968C1

STEERING SUPPORT

SUPPORT - steering, tractors without forward and reverse

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8"-16 NC x 1-1/4", G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

160221

SCREW,Cross Pan Hd, #12 - 24 x 1/2"

Harness ground on steering support Cross Pan Hd, #12-24 x 1/2"

1шт.

225-14112

NUT,#12-24

- hex, No. 12-24, harness ground on steering support

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, , Harness ground on steering support #12

1шт.
