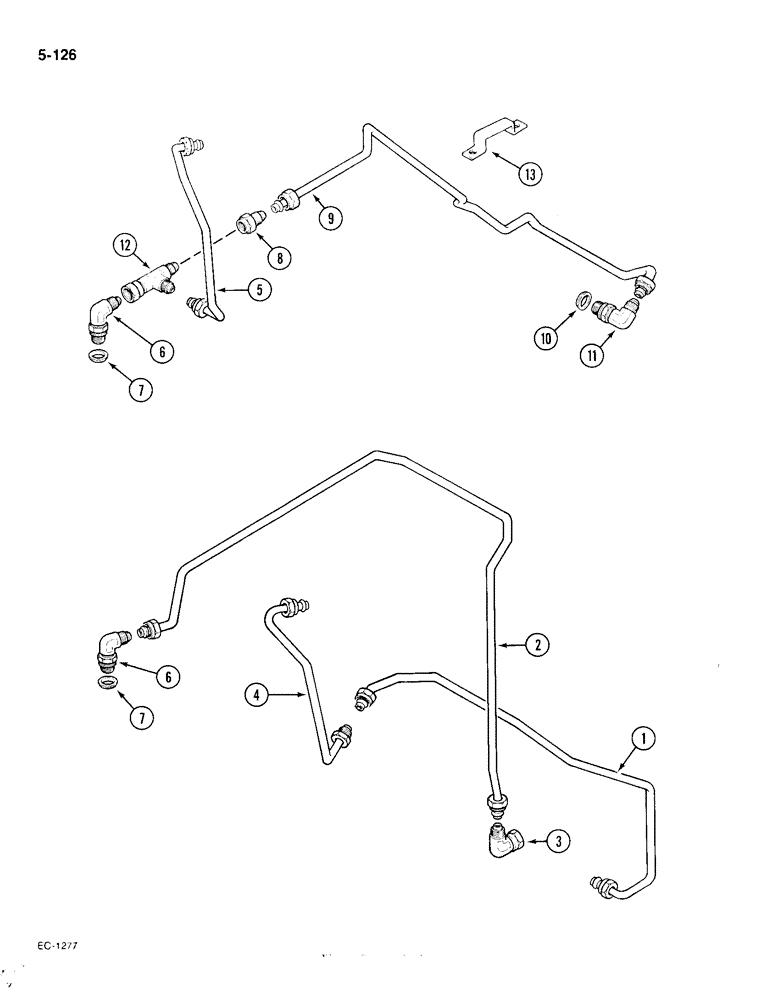

Запчасти Case IH 385 (5-126) - STEERING PIPES REAR, 4 WHEEL DRIVE, MFD TRACTORS P.I.N. 18001 AND AFTER (05) - STEERING

1

99777C3

PIPE

TUBE - power steering pressure, rear

1шт.

2

99778C2

PIPE

TUBE - power steering return, rear

1шт.

3

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, 1/2 inch OD tube

1шт.

4

3116271R2

TUBE ASSY.,0.375" OD, 12.44, 4.28" Length

TUBE - power steering pressure

1шт.

5

3116272R2

TUBE ASSY.

TUBE - power steering return

1шт.

6

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree adjustable, 1/2 inch OD tube

2шт.

7

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube, class 6

2шт.

8

99799C1

FITTING

UNION - reducer

1шт.

9

94365C2

PIPE

TUBE - drop box

1шт.

11

99865C1

ELBOW

- 90 degree, 5/16 inch OD tube

1шт.

12

9410333

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

UNION - tee, swivel, 1/2 inch OD tube

1шт.

13

99953C1

CLAMP

BRACKET - pipe retaining

1шт.

10

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube, class 6

1шт.
