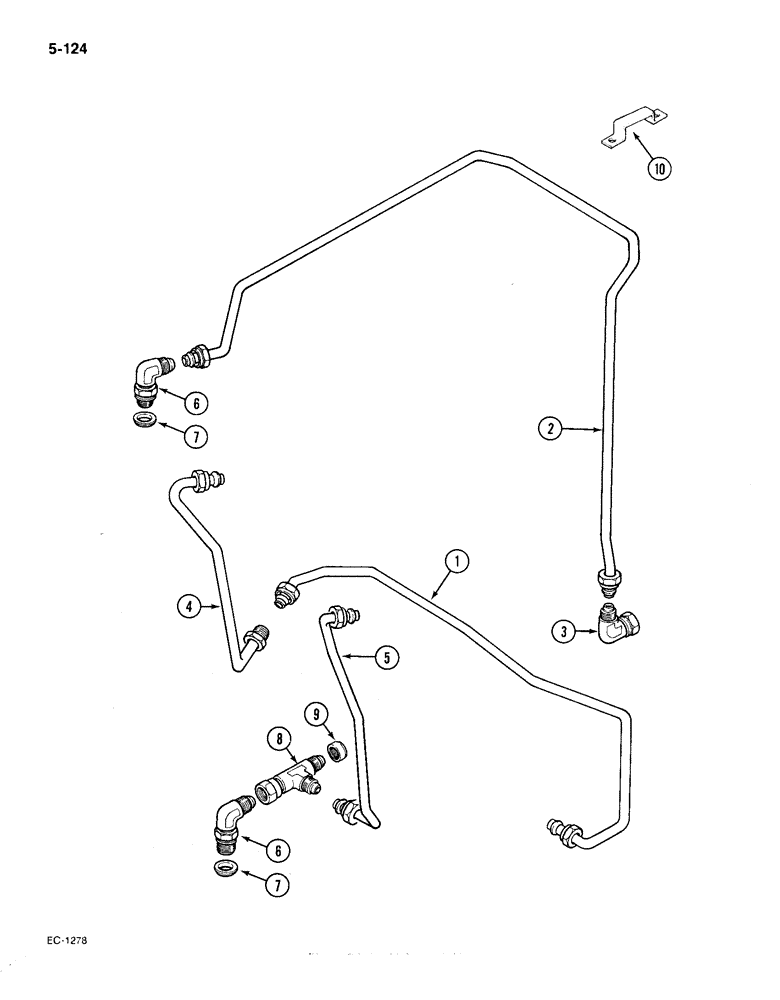

Запчасти Case IH 385 (5-124) - STEERING PIPES REAR, 2 SPEED POWER SHIFT TRACTOR W/FORWARD & REVERSE, TRACTORS P.I.N. 18001 & AFTER (05) - STEERING

1

99777C3

PIPE

TUBE - power steering pressure, rear

1шт.

2

99778C2

PIPE

TUBE - power steering return, rear

1шт.

3

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, 1/2 inch OD tube

1шт.

4

99797C2

TUBE

- power steering pressure

1шт.

5

99798C2

PIPE

TUBE - power steering return, front

1шт.

6

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree adjustable, 1/2 inch OD tube

2шт.

7

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube, class 6

2шт.

8

9410333

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

UNION - tee, swivel, 1/2 inch OD tube

1шт.

9

9403372

CAP,37 Degree, 3/4"-16

- 1/2 inch OD tube

1шт.

10

99953C1

CLAMP

BRACKET - pipe retaining

1шт.
