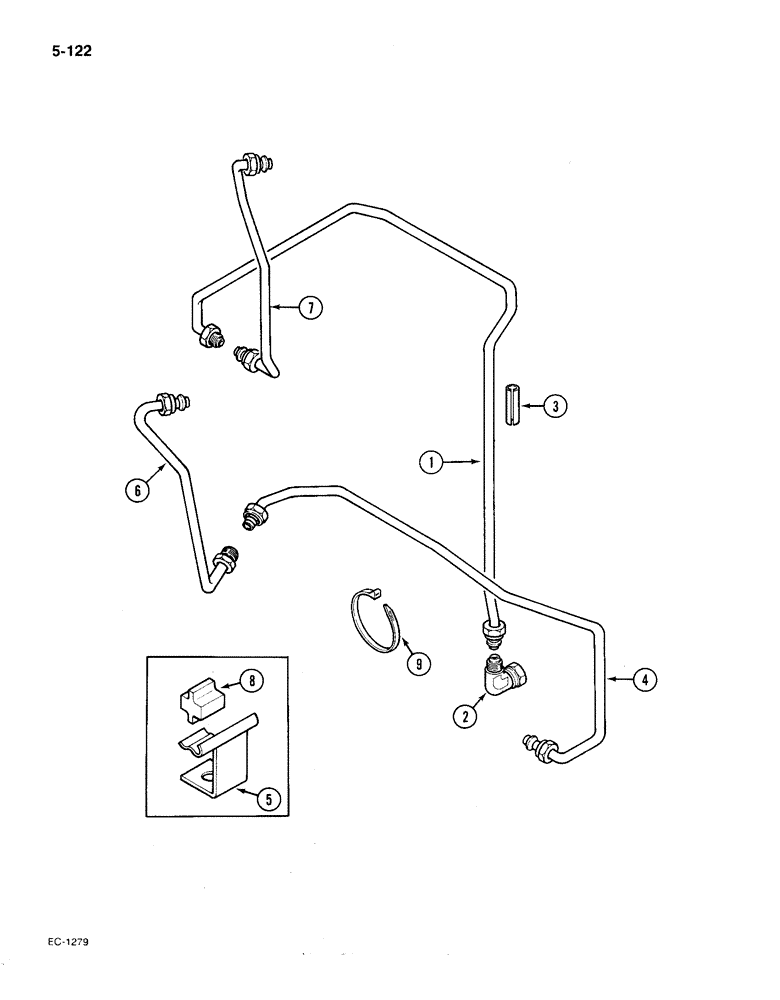

Запчасти Case IH 385 (5-122) - STEERING PIPES, REAR, 2 WHEEL DRIVE, TRACTORS P.I.N. 18001 AND AFTER (05) - STEERING

1

99800C2

PIPE

TUBE - power steering return, rear

1шт.

2

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, 1/2 inch OD tube

1шт.

3

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve 0.31" ID x 2.50"

2шт.

4

99777C3

PIPE

TUBE - power steering pressure, rear

1шт.

5

529638R1

BRACKET

- rear manifold

1шт.

6

99797C2

TUBE

- power steering pressure

1шт.

7

99798C2

PIPE

TUBE - power steering return, front

1шт.

8

529637R2

GUIDE

- manifold tube

1шт.

9

306132C1

CABLE TIE,14.5" L

STRAP - cable, 4.0 max bundle, rear manifold tubes

1шт.
