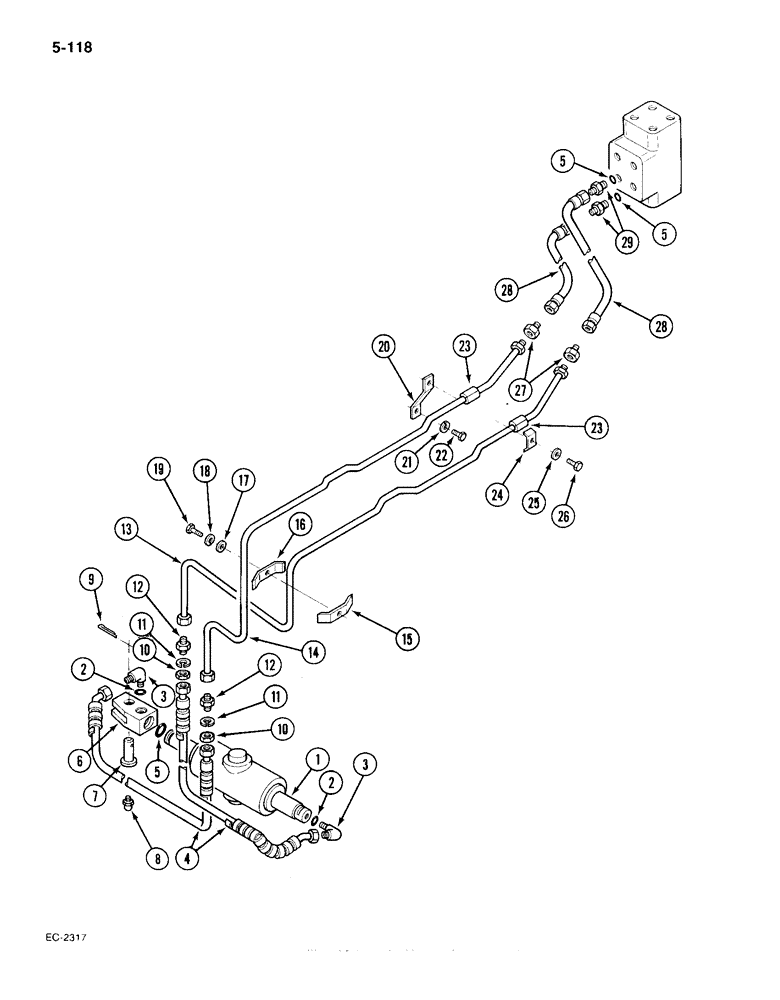

Запчасти Case IH 385 (5-118) - STEERING PIPES FRONT, 2 WHEEL DRIVE, P.I.N. 18001 AND AFTER (05) - STEERING

1

549667R92

STEERING CYLINDER

CYLINDER - power steering, adjustable straight front axle, see Fig. 5-132

1шт.

84336125R

REMAN-HYD CYLINDER

385 P.I.N. 5001 TO 5287 & P.I.N. 18001 & AFTER (1/86-12/90), Reman for New P/N 549667R92

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 5/16 inch OD tube

2шт.

4

3121235R1

HOSE

- power steering cylinder

2шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube, class 6, adjustable straight front axle

3шт.

6

3125306R1

CLEVIS,9/16" - 18

- cylinder end, adjustable straight front axle

1шт.

7

3125305R1

PIN

- power steering cylinder, adjustable straight front axle

1шт.

8

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING - grease, short drive type, 3/16 inch, adjustable straight front axle

1шт.

9

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), , adjustable straight front axle 1/4" x 1 1/4"

1шт.

10

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT - lock, bulkhead union, 3/8 inch

2шт.

11

115553

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

12

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION - bulkhead, 3/8 inch OD tube

2шт.

13

1282989C2

HYD TUBE

TUBE - power steering, front right

1шт.

14

1282988C2

HYD TUBE

TUBE - power steering, front left

1шт.

15

529644R11

CLAMP

- tube

1шт.

16

529644R11

CLAMP

- tube

1шт.

17

95-11028

WASHER,1/4"

- flat, 0.281 x 0.625 x 0.051 inch

1шт.

18

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

19

NLS

NO LONGER SERVICED

- hex, 1/4 NC x 7/8 inch, grade 5

1шт.

20

1500309C1

SUPPORT

BRACKET

1шт.

21

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

22

179803

BOLT,1/4" - 20 x 1 3/4", Gr 5

1шт.

23

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve 0.31" ID x 2.50"

2шт.

24

529644R11

CLAMP

- tube

1шт.

25

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

1шт.

26

930609R1

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, M6 x 25 mm, class 8.8

1шт.

27

not used in this application

1шт.

28

99784C1

HOSE

- flexible

2шт.

29

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION - straight, 3/8 to 1/2 inch

2шт.
