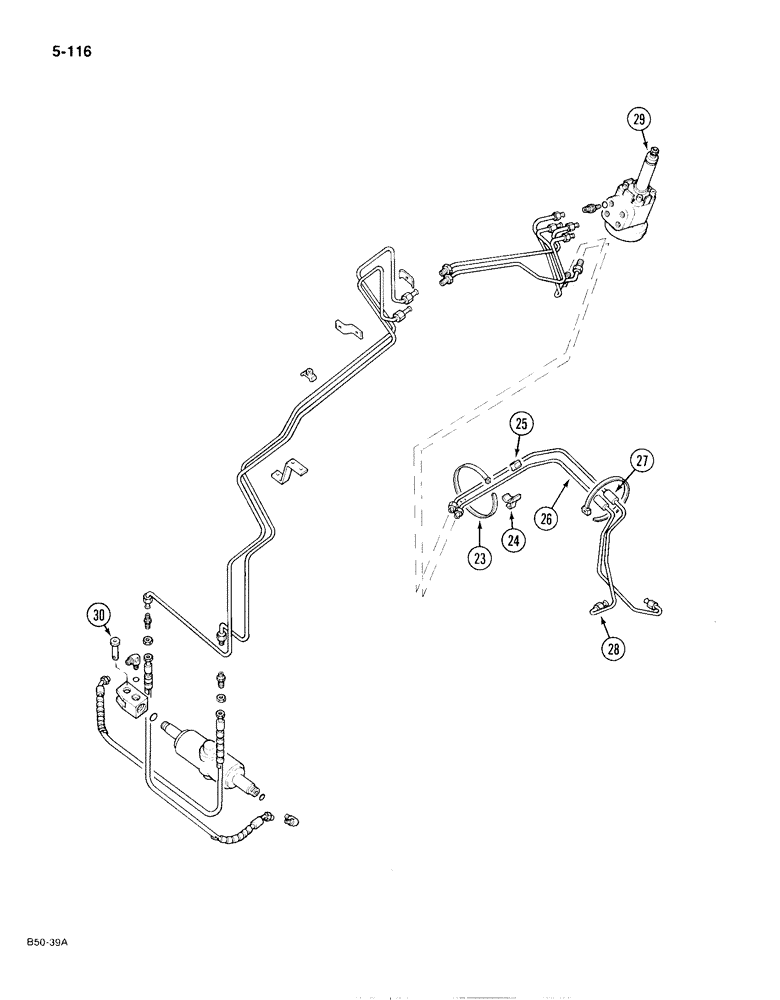

Запчасти Case IH 385 (5-116) - POWER STEERING, ADJUSTABLE FRONT AXLE AND CAST BOLSTER, TRACTORS PRIOR TO P.I.N. 5287 (CONTD) (05) - STEERING

23

306132C1

CABLE TIE,14.5" L

STRAP - cable, 4.0 max bundle, rear manifold tubes

2шт.

24

529638R1

BRACKET

- rear manifold

1шт.

Ref. 24 and 25 have been deleted. Use 306132C1 tie strap.

1шт.

25

529637R2

GUIDE

- manifold tube

1шт.

Ref. 24 and 25 have been deleted. Use 306132C1 tie strap.

1шт.

26

1502293C1

TUBE

- power steering pressure, rear

1шт.

3129261R1

BRACKET

- pipe retaining

1шт.

27

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve 0.31" ID x 2.50"

2шт.

28

3129257R1

TUBE ASSY.

TUBE - power steering return, rear

1шт.

29

3121187R91

SHAFT

- steering, with nut, Includes: P/N 368576R1

1шт.

F19646

LOCK NUT,13/16"-20, Thin

NUT - hex, steering shaft, 13/16 inch

1шт.

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

- pipe, 3/8 x 1 inch

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

30

3125305R1

PIN

- power steering cylinder

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING - grease, short drive type, 3/16 inch

1шт.
