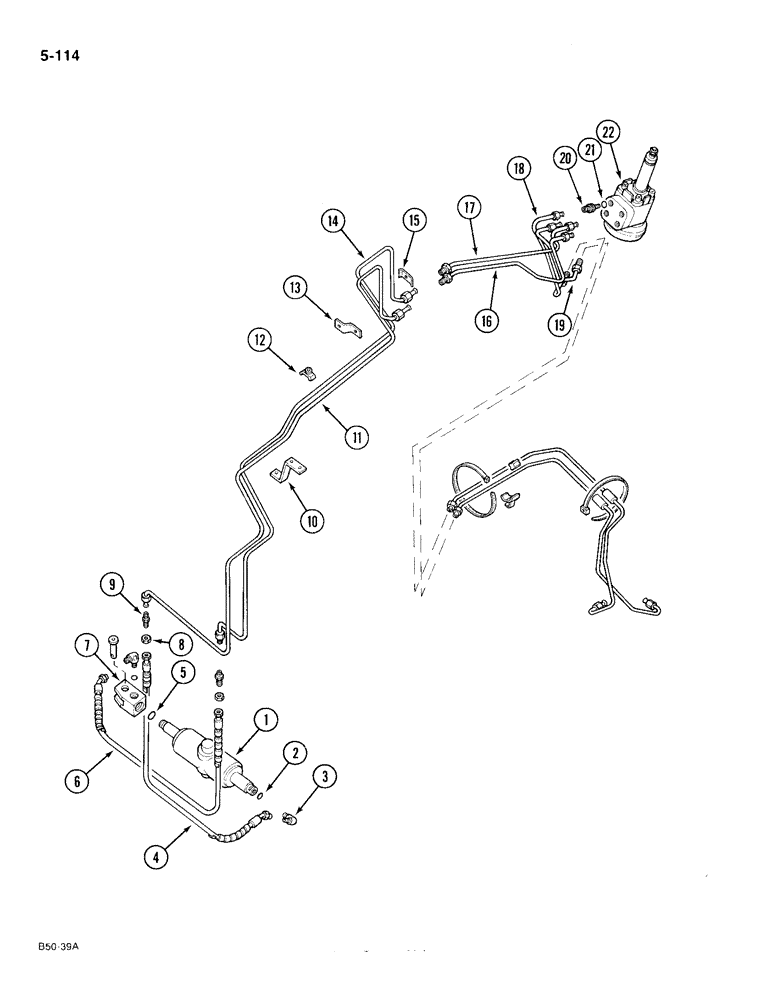

Запчасти Case IH 385 (5-114) - POWER STEERING, ADJUSTABLE FRONT AXLE AND CAST BOLSTER, TRACTORS PRIOR TO P.I.N. 5287 (05) - STEERING

1

549667R92

STEERING CYLINDER

CYLINDER - power steering, see Fig. 5-132

1шт.

84336125R

REMAN-HYD CYLINDER

385 P.I.N. 5001 TO 5287 & P.I.N. 18001 & AFTER (1/86-12/90), Reman for New P/N 549667R92

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 5/16 inch OD tube

2шт.

4

3121235R1

HOSE

- power steering cylinder

1шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube, class 6

1шт.

6

3121235R1

HOSE

- power steering cylinder

1шт.

7

3125306R1

CLEVIS,9/16" - 18

- cylinder end

1шт.

8

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT - lock, bulkhead union, 3/8 inch

2шт.

9

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION - bulkhead, 3/8 inch OD tube

2шт.

115553

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

10

529646R1

BRACKET

- front manifold support

1шт.

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC, grade 5

1шт.

11

3121237R1

TUBE ASSY.

TUBE - power steering, right forward

1шт.

12

529644R11

CLAMP

- tube

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, grade 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

529642R1

BRACKET

- front manifold

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

14

3121236R1

TUBE ASSY.

TUBE - power steering, left forward

1шт.

15

384891R11

CLAMP

- tube

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex, 1/4 NC x 7/8 inch, grade 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

3116268R2

TUBE ASSY.

TUBE - power steering, right rear

1шт.

17

3116267R1

TUBE ASSY.

TUBE - power steering, left

1шт.

18

3116272R2

TUBE ASSY.

TUBE - power steering return

1шт.

19

3116271R2

TUBE ASSY.,0.375" OD, 12.44, 4.28" Length

TUBE - power steering pressure

1шт.

20

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION - straight, 3/8 to 1/2 inch

4шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube, class 6

4шт.

22

67698C93

VALVE

- integral, power steering, see Fig. 5-130

1шт.
