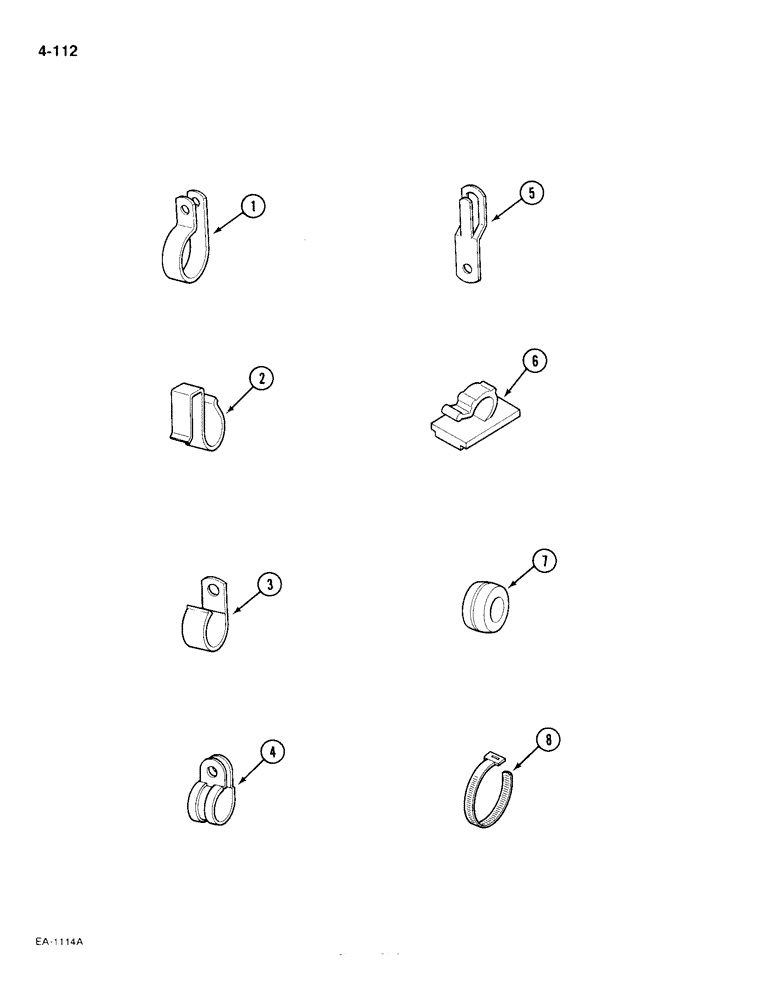

Запчасти Case IH 385 (4-112) - ELECTRICAL CLIPS, STRAPS AND GROMMETS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
3116240R1
CLIP
- 0.56 diameter, closed, battery cable
1шт.
2
3116918R1
CABLE CLIP
CLIP - edge, 0.25 max diameter, air cleaner top bracket
1шт.
2
3123109R1
CABLE CLIP
CLIP - edge, 0.35 max diameter, temperature sender cable
1шт.
2
3125873R1
CLIP
- edge, 0.374 max diameter, front grille cable
2шт.
2
537024R1
CLIP
- edge, 0.46 max diameter, radiator guard, left
1шт.
2
537024R1
CLIP
- edge, 0.46 max diameter, park brake, seat deck left
1шт.
2
537024R1
CLIP
- edge, 0.46 max diameter, front harness, grille support assembly left
1шт.
2
537025R1
CLIP
- edge, 0.55 max diameter, brake cylinder bracket
1шт.
2
3113490R1
CLIP
- 0.55 max diameter, edge, steering support left channel
1шт.
2
3113490R1
CLIP
- 0.55 max diameter, edge master cylinder bracket
1шт.
2
535303R1
CABLE CLIP
CLIP - edge, 0.95 max diameter
1шт.
3
366460R1
CABLE CLIP
CLIP - 0.25 diameter, open, front cover, rear right
1шт.
3
366460R1
CABLE CLIP
CLIP - 0.25 diameter, open, light harness
2шт.
3
316433C1
CLAMP
CLIP - 0.50 diameter, open, main harness
1шт.
3
100770H
CLIP
- 0.31 diameter, open, grille shroud, left
1шт.
3
100770H
CLIP
- 0.31 diameter, open, grille tie bar, left
1шт.
4
3125823R1
CLIP
- 0.75 diameter
1шт.
5
708115R1
PLATE ASSY.
CLIP - spring type
1шт.
6
1500496C1
CABLE CLIP
CLIP - cable, 3.0 mm diameter
1шт.
7
531625R1
GROMMET
- left and right fenders
2шт.
8
306132C1
CABLE TIE,14.5" L
STRAP - cable, 4.0 max bundle, steering support, left top
1шт.
8
306132C1
CABLE TIE,14.5" L
STRAP - cable, 4.0 max bundle, main harness, instrument shroud
2шт.
8
289862C1
CABLE TIE,3/16" x 7"
STRAP - cable, 1.75 max bundle, battery cable
1шт.
8
289862C1
CABLE TIE,3/16" x 7"
STRAP - cable, 1.75 max bundle, fuel line
2шт.
8
289862C1
CABLE TIE,3/16" x 7"
STRAP - cable, 1.75 max bundle, battery support
1шт.
8
289862C1
CABLE TIE,3/16" x 7"
STRAP - cable, 1.75 max bundle, steering support
1шт.
8
289862C1
CABLE TIE,3/16" x 7"
STRAP - cable, 1.75 max bundle, fuel shut-off control
1шт.
Выбрано товаров: 27
