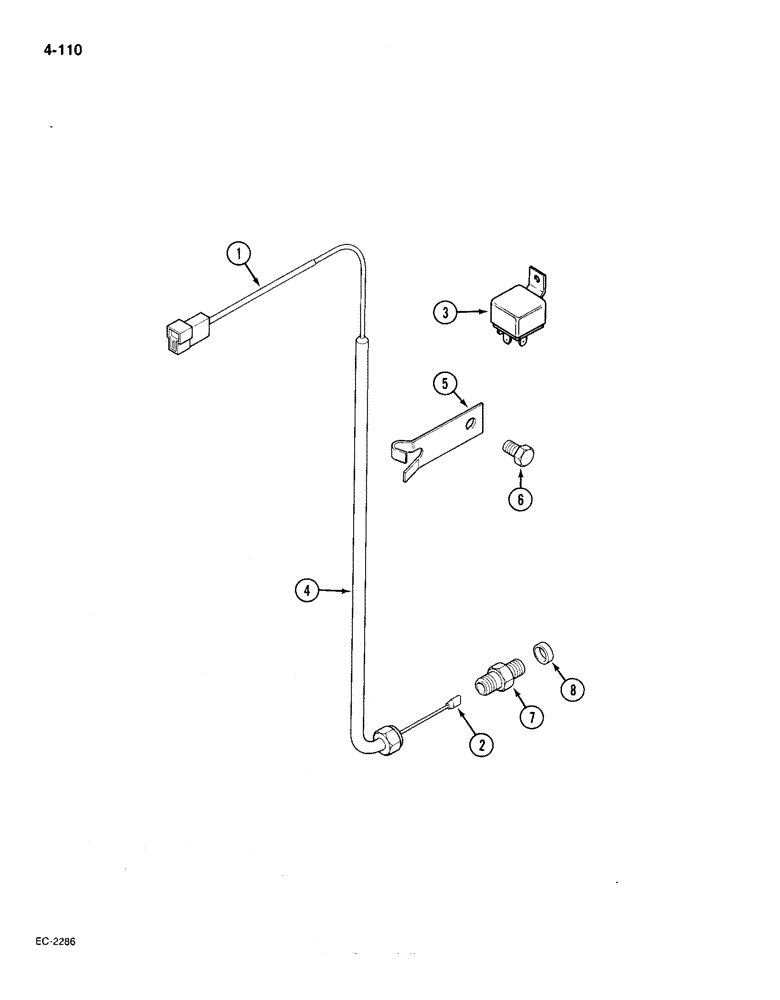

Запчасти Case IH 385 (4-110) - ELECTRICAL CONTROL, 4 WHEEL DRIVE, TRACTORS P.I.N. 18001 AND AFTER (04) - ELECTRICAL SYSTEMS

1

82634C1

CABLE

- 4 wheel drive solenoid

1шт.

2

905694R1

ELEC. TERMINAL PIN

TERMINAL

1шт.

3

3221235R2

RELAY

- miniature, without bracket, 4 wheel drive

1шт.

4

82635C1

TUBE ASSY.,8 mm OD, 370, 40 mm Length

TUBE - harness protection

1шт.

5

99842C2

CLAMP

1шт.

6

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

- hex, 3/8 NC x 1/2 inch, grade 5

1шт.

7

3056174R1

HYD CONNECTOR,M12 x 1.5 x M14 x 1.5

UNION - hydraulic tube

1шт.

8

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

1шт.
