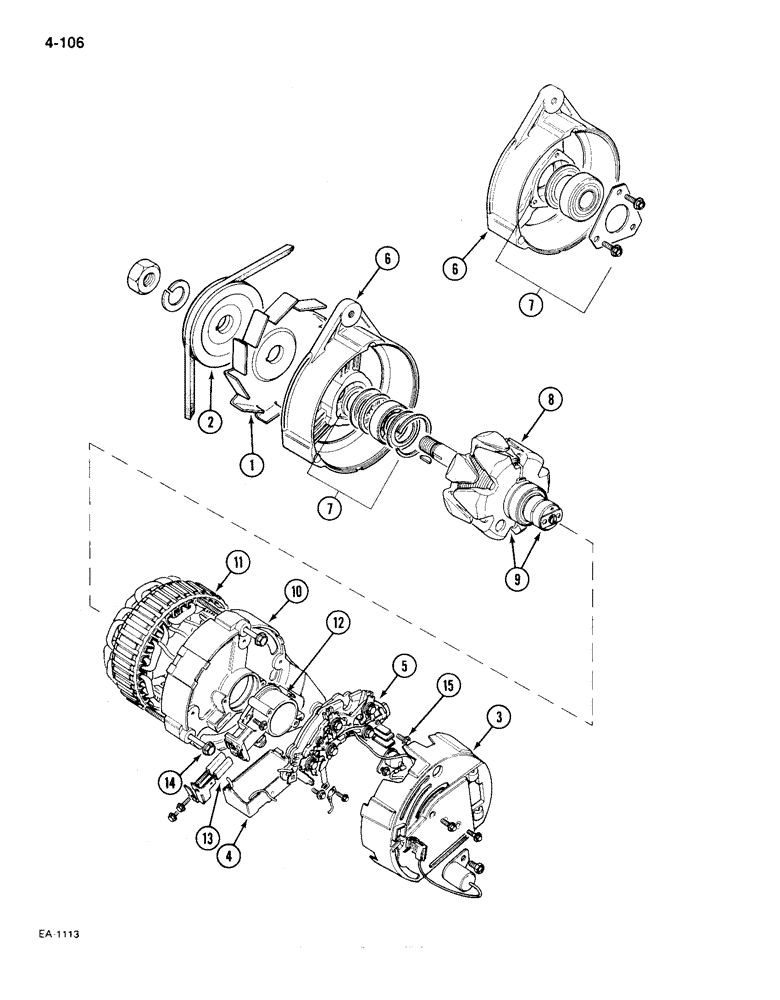

Запчасти Case IH 385 (4-106) - ALTERNATOR, LUCAS (04) - ELECTRICAL SYSTEMS

92292C1

ALTERNATOR

ALTERNATOR - Lucas, A127-65, without fan and pulley

1шт.

87800219R

REMAN-ALTERNATOR

Reman For New PN 92293C1

1шт.

87800219C

CORE-ALTERNATOR

Return Part Number

1шт.

92293C1

ALTERNATOR

ALTERNATOR - Lucas, with fan and pulley, Includes: P/N 92294C1 and Ref. 1 and 2

1шт.

92293C1R

REMAN-ALTERNATOR

Reman For New PN 92293C1

1шт.

92293C1GV

ALTERNATOR

Value, W/ Fan and Pulley

1шт.

92293C1C

CORE-ALTERNATOR

Return Part Number

1шт.

92294C1

ALTERNATOR

ALTERNATOR - Lucas, A127-45, without fan and pulley, Includes: Ref. 3 thru 15 and P/N 245548C1, 245549C1 and 245550C1

1шт.

1

245533C1

FAN

KIT - fan, with spacer, 15 mm bore

1шт.

2

245534C1

PULLEY

PULLEY - fan belt, 15 mm bore

1шт.

P/N 1970879C1 has a 17 mm bore.

1шт.

3

245535C1

COVER

COVER

1шт.

4

245536C1

REGULATOR

REGULATOR

1шт.

5

245537C1

RECTIFIER

RECTIFIER

1шт.

6

3116089R91

BRACKET

HOUSING - drive end

1шт.

7

3116096R91

BEARING ASSY

KIT - drive end bearing

1шт.

8

245540C1

ROTOR ASSY.

ROTOR

1шт.

9

245541C1

WHEEL BEARING KIT

KIT - bearing and slip ring

1шт.

245542C1

RING

RING - slip

2шт.

10

245543C1

BRACKET

BRACKET - slip ring end

1шт.

11

245544C1

STATOR

STATOR

1шт.

12

245545C1

BRUSH HOLDER

HOLDER, BRUSH BOX - brush

1шт.

13

245546C1

BRUSH SET

KIT - brush set

1шт.

14

245547C1

BOLT

SPARE PART BOLT - fixing

3шт.

15

245886C1

RECTIFIER

RECTIFIER - surge protection

1шт.

245548C1

PACKAGE

KIT - sundry parts

1шт.

245549C1

PACKAGE

KIT - screw

1шт.

245550C1

PACKAGE

KIT - spacer

1шт.
