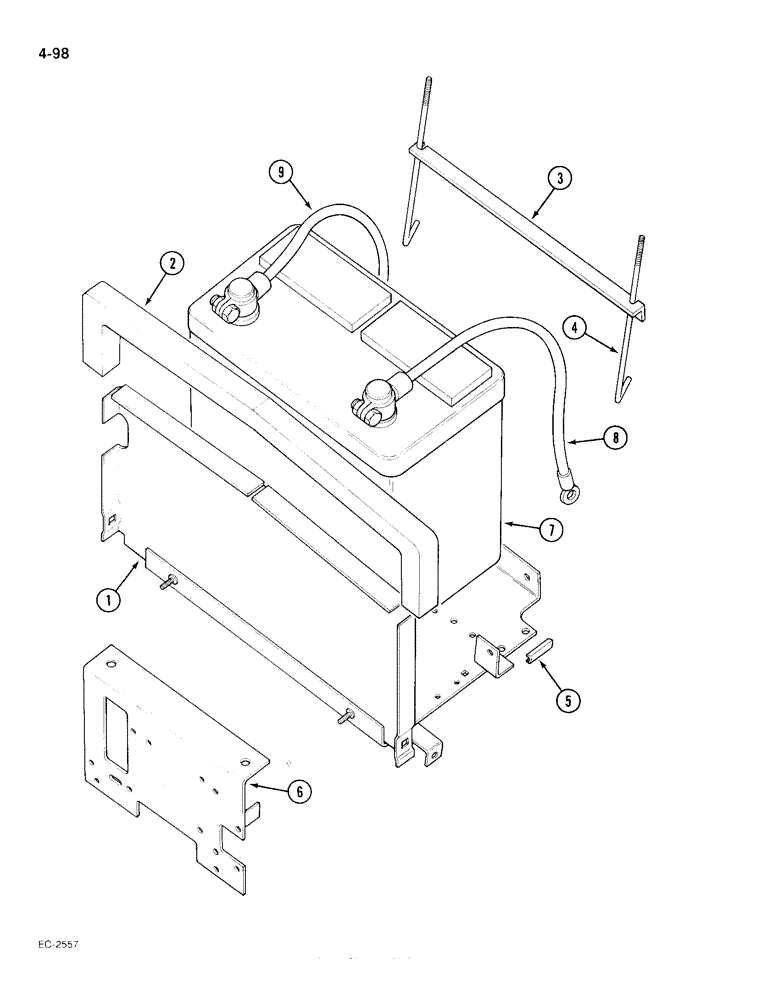

Запчасти Case IH 385 (4-098) - BATTERY TRAY, BATTERY AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

3121626R1

TRAY ASSY.

TRAY - battery

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

20893R1

WASHER

- plain, 0.344 x 1.00 x 0.105 inch

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

3121629R1

NUT

- retainer, hood

2шт.

179814

SPACER

- hex, 5/16 NC x 5/8 inch, grade 5

2шт.

Instrument panel back plate to battery tray.

1шт.

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC, grade 5

2шт.

Instrument panel back plate to battery tray.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Instrument panel back plate to battery tray.

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

4шт.

Instrument panel back plate to battery tray.

1шт.

2

73217C1

FILLING STRIP

SEAL - foam, bulk length, 4 foot roll

1шт.

3

3121178R1

BRACKET

- battery hold down

1шт.

4

527605R3

ROD

- battery hold down

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 0.344 x 0.688 x 0.051 inch

2шт.

120376

NUT,5/16"-18, G5

2шт.

5

3113841R1

MOLDING

MOULDING - edge

1шт.

6

3123057R2

SUPPORT ASSY.

SUPPORT - battery tray

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch, grade 5

2шт.

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

7

A186026

BATTERY, DRY

- dry charge, maintenance free, 12 volt

1шт.

8

528301R1

CABLE ASSY.

CABLE -, Serial Range: battery-starter

1шт.

3125853R1

PROTECTOR

BOOT - rubber, starter cable

1шт.

9

537504R1

CABLE ASSY.

CABLE -, Serial Range: battery-ground

1шт.

3116240R1

CLIP

- 0.56 diameter, closed, battery cable

1шт.

450643

SCREW,Hex Hd, #8-32 x 3/8"

BOLT - hex, No. 8 x 3/8 inch

1шт.

492-11008

LOCK WASHER,#8

Washer, Lock, #8

1шт.

225-10108

NUT,#8-32

1шт.
