Запчасти Case IH 385 (4-096) - INSTRUMENTS, WITHOUT CAB (04) - ELECTRICAL SYSTEMS

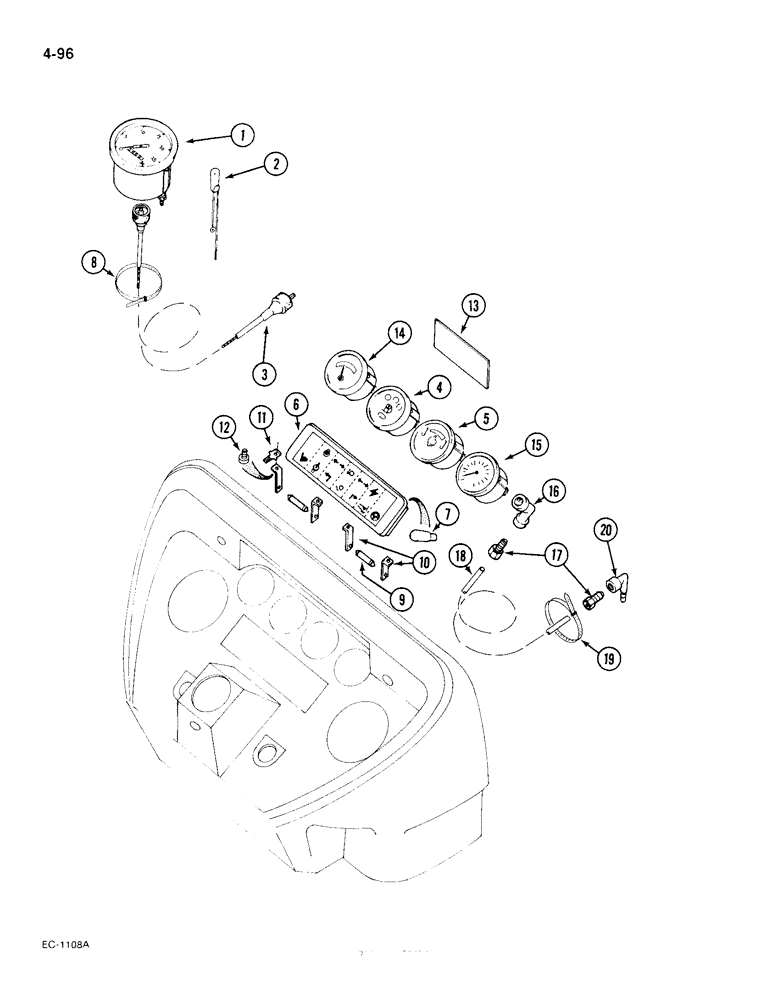

Схема запчастей Case IH 385 - (4-096) - INSTRUMENTS, WITHOUT CAB (04) - ELECTRICAL SYSTEMS
5
12
10
16
9
7
14
6
19
11
3
1
4
8
13
17
20
2
18
15

Артикул

Название

Примечание

Количество

1

3125874R92

TACHOMETER

1шт.

2

3123661R1

HOLDER

- lamp, wedge, 10 mm

1шт.

3

A39404

CABLE

- tachometer drive

1шт.

4

3121239R1

FUEL GAUGE

GAUGE - fuel, AC Delco, use only with AC Delco sending unit P/N 529790R1

1шт.

4

3129840R1

FUEL GAUGE

GAUGE - fuel, Icknield, use only with Icknield sending unit P/N 3129841R91

1шт.

5

3121240R1

ELECTRICAL GAUGE

GAUGE - water temperature, AC Delco, use only with AC Delco sending unit P/N 3073787R1

1шт.

5

3127959R1

ELECTRICAL GAUGE

GAUGE - water temperature, Icknield, use only with Icknield sending unit P/N 3127956R1

1шт.

6

1502006C2

HOUSING

HOLDER - warning light Lamp, Includes: Ref. 7

1шт.

7

529233R1

LAMP

- 12V/3W, wedge type, capless

7шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 max bundle

2шт.

9

710196R1

BULB,C5W, 12V, 5W

Festoon C11, 12Vm 5W

2шт.

10

3121705R1

CONTACT HOUSING

- Lamp

4шт.

11

3121703R1

TERMINAL CONNECTOR

TERMINAL - 1/4 inch blade

4шт.

12

3121704R1

SCREW

- slotted, No. 4 x 5/16 inch, stainless steel

4шт.

13

3125816R1

LENS

- green, translucent

1шт.

14

1332882C1

AMMETER

GAUGE - ammeter, Icknield, when fitted

1шт.

15

1332883C1

OIL PRESSURE GAUGE

GAUGE - oil pressure, Icknield, when fitted

1шт.

16

19717R1

ELBOW,90 Degree x 1/8" NPT x 5/16"-20, Fem

- 90 degree male, No. 89-LB, when fitted

1шт.

17

222-500

TUBE NUT,5/16" - 24 NPT

NUT - tube, No. 81-LB, when fitted

2шт.

18

1332949C1

TUBE,0.096" ID, 0.125" OD

- oil pressure gauge, when fitted

1шт.

19

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 max bundle, when fitted

2шт.

20

36637D

ELBOW,90 Degree x 1/8" NPT x 5/16"-24

- 90 degree hi-duty female, No. 90-LB, when fitted

1шт.

Выбрано товаров: 22
