(4-090) - TRACTOR LIGHTING AND CONNECTIONS (CONTD)

Запчасти Case IH 385 (4-090) - TRACTOR LIGHTING AND CONNECTIONS (CONTD) (04) - ELECTRICAL SYSTEMS

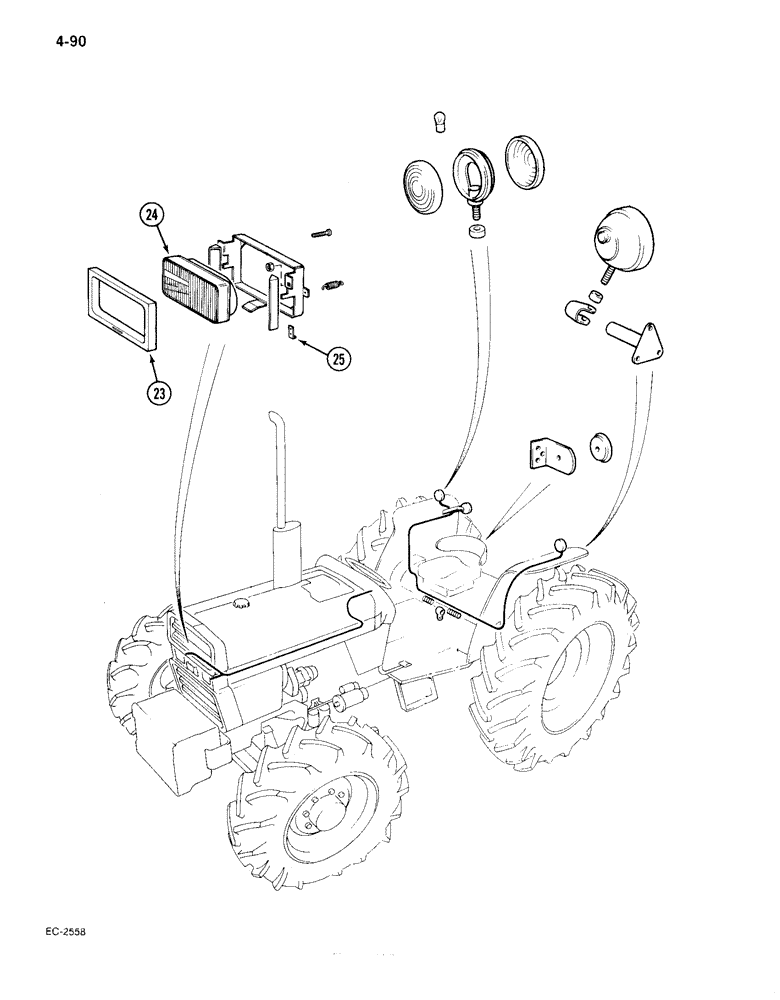

Схема запчастей Case IH 385 - (4-090) - TRACTOR LIGHTING AND CONNECTIONS (CONTD) (04) - ELECTRICAL SYSTEMS
23
24
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

23

K304831

RUBBER INSULATOR

SHROUD - headlight, Serial Range: -5287

2шт.

23

99791C1

GUARD

SHROUD - headlight 18001 to

2шт.

24

A139458

LAMP

- head, vertical low

2шт.

25

94353C1

BRACKET

- spring

4шт.

99997C1

SELF-TAP SCREW,Cross Pan Hd, #10-24 x 3/4"

SCREW - pan, No. 10 x 3/4 inch, Polyseal

4шт.

26303R1

HARDWARE,#10-24

NUT - hex, No. 10

4шт.
