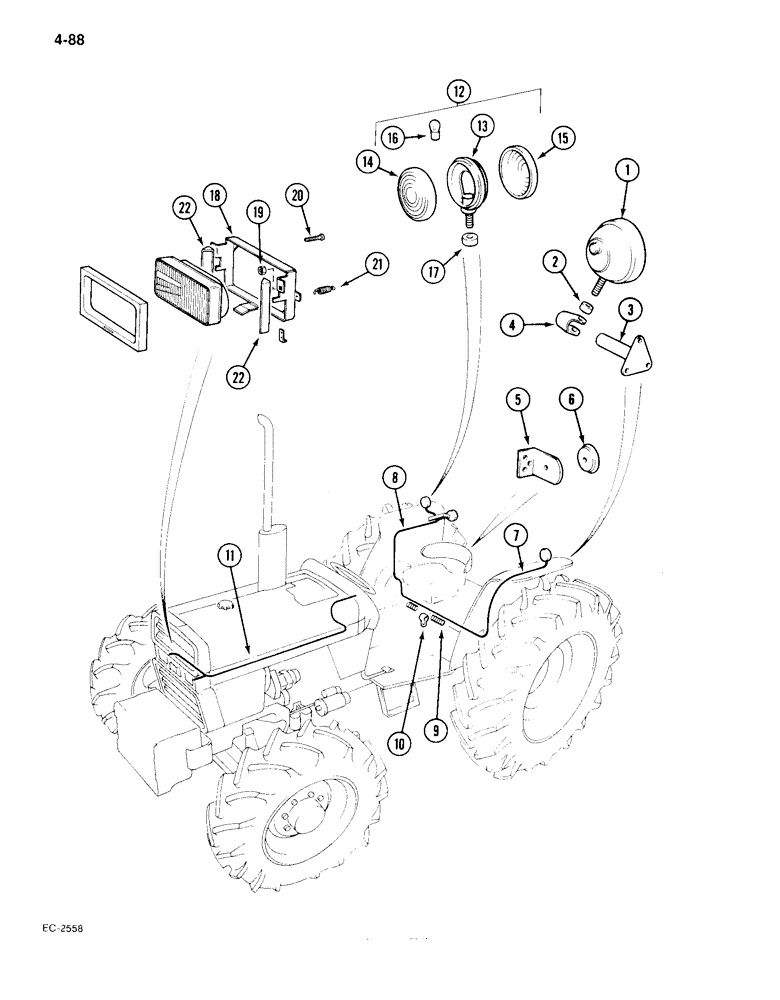

Запчасти Case IH 385 (4-088) - TRACTOR LIGHTING AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

387729R92

LIGHT ASSY.

LIGHT - combination, rear and tail, Includes: P/N 80627C1, 142456 and 676078R1

1шт.

80627C1

LIGHT ASSY.

LIGHT - with bulb

1шт.

33686

BULB

LAMP - type C-6, trade No. 1141

1шт.

676078R1

RETAINER

- light, shockproof

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

365503R1

SPACER

- combination light

1шт.

3

401471R1

POST

- combination light

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

- hex, 3/8 NC x 5/8 inch, grade 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

4

350920R1

CLAMP

- combination light

1шт.

5

3125247R2

BRACKET

- reflector

2шт.

260-5458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - tapping, pan cross recess, No. 10 x 1/2 inch

2шт.

6

3118665R1

REFLECTOR

- red, Includes: P/N 3112698R1

2шт.

3112698R1

WASHER

- cup, nylon

2шт.

6

3112360R91

REFLECTOR

- red optional to P/N 3118665R1

2шт.

7

3123677R1

HARNESS

- fender, left

1шт.

8

3123678R2

HARNESS

- fender, right

1шт.

9

1280346C2

CONDUIT

CHANNEL - convolute conduit, version with R.O.P.S.

1шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - harness, version with R.O.P.S.

1шт.

11

1500563C94

WIRE HARNESS

HARNESS - main cable

1шт.

12

67538C92

HEADLIGHT

LIGHT - flasher, Includes: flasher light, P/N 9417866 and Ref. 13 thru 16

2шт.

9417866

BULB,C6, #1156, 12.8V

LAMP

1шт.

NSS

NOT SOLD SEPARAT

LIGHT - flasher

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - flasher light

1шт.

899282R1

O-RING

RING - rubber sealing

2шт.

493-21046

LOCK WASHER,Int Tooth, 7/16"

WASHER - lock, internal tooth, 7/16 inch

2шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

2шт.

14

3112682R1

LENS

- amber, front

1шт.

15

3112683R1

LENS

- amber, rear

1шт.

16

3025210R91

BULB

LAMP - 12V/21W SCC

1шт.

17

3073103R1

SPACER

- light mounting, seat

2шт.

3113202R1

PLUG

- blanking, 7/16 inch NF, plough lamp

1шт.

18

K304824

SUPPORT

HOUSING - headlight

2шт.

19

K617503

NUT

- nylon

4шт.

20

K603641

SCREW

- adjusting

4шт.

21

K658240

SPRING

4шт.

22

K304832

MOLDING

- rubber

4шт.
