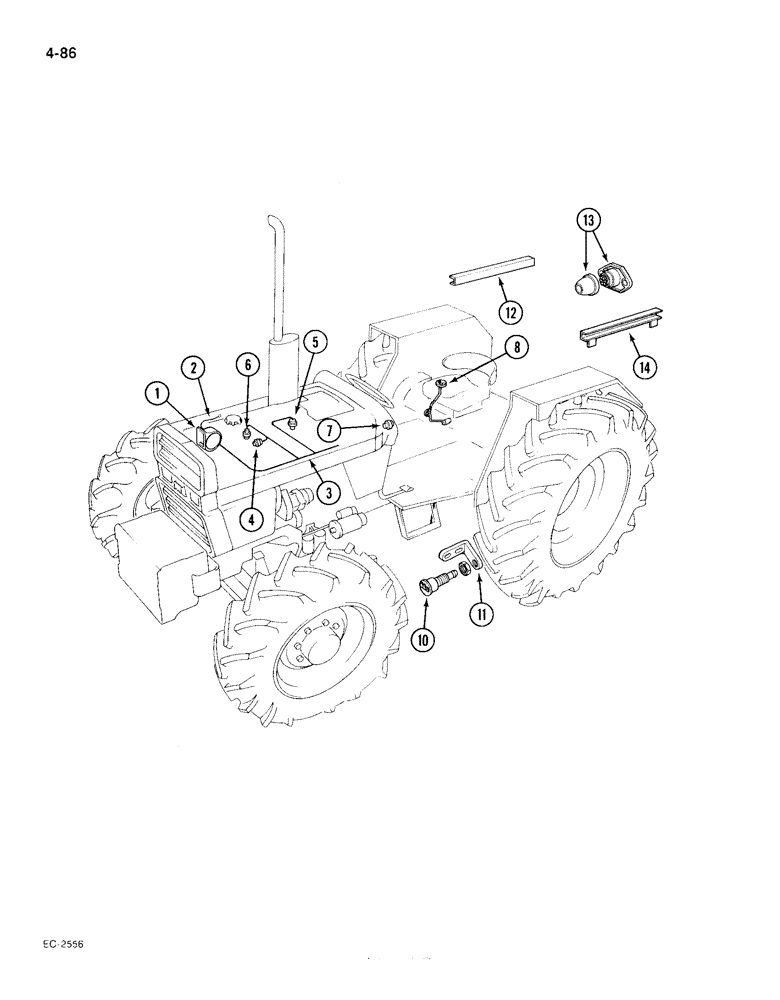

Запчасти Case IH 385 (4-086) - CHASSIS WIRING, SWITCHES AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

3121205R91

HORN

P/N 1536115C1 is the new horn

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

120392

WASHER,1/4", SAE

- plain, 0.281 x 0.625 x 0.051 inch

2шт.

3119440R1

LOCK NUT

- self-locking, 1/4 inch NC

2шт.

2

3117533R1

CABLE

-, Serial Range: horn-earth

1шт.

3

1500563C94

WIRE HARNESS

HARNESS - main cable

1шт.

4

3224405R91

RESTRICTION SWITCH

SWITCH - air cleaner restriction indicator on air cleaner mounting bracket

1шт.

5

91450C1

SWITCH, PRESSURE

SWITCH - engine oil pressure, on top of oil filter base

1шт.

6

3073787R91

TRANSMITTER

- water temperature, AC Delco, use with AC Delco gauge P/N 3121240R1

1шт.

6

3127956R1

TEMPERATURE SENDER

TRANSMITTER - water temperature, Icknield, use with Icknield gauge P/N 3127959R1

1шт.

7

376855R92

SWITCH

- oil pressure warning, If equipped

1шт.

444614

PLUG,Hex Hd, 1/8"-27, Brass

- hex head pipe, 1/8-27 inch thread, If equipped

1шт.

8

NSS

NOT SOLD SEPARAT

UNIT - fuel level sending, see Figure 3-082

1шт.

10

121629C2

SWITCH

- neutral starting, 2 prong connection, P/N 1964885C3 is 4 prong connection

1шт.

11

1500214C1

BRACKET

- with 5/8-32 inch fine thread hole

1шт.

11

1331148C1

BRACKET

- with M16 x 2.0 mm coarse thread hole

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, grade 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

2шт.

12

3123182R2

CABLE SHEATH

CONDUIT - fender, right

1шт.

24388R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 3/8"

2шт.

13

84117C1

SOCKET/RECEPTACLE

SOCKET - 7 pin, with boot, Serial Range: -5287

1шт.

13

121645C1

MULTIPOLE CONNECTOR,7 Pin

CONNECTOR - 7 Pin, Start Serial: 18001

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 0.344 x 0.688 x 0.051 inch

2шт.

19296R1

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch, grade 5

2шт.

14

3123179R1

CABLE SHEATH

CONDUIT - fender, left

1шт.

24388R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 3/8"

2шт.
