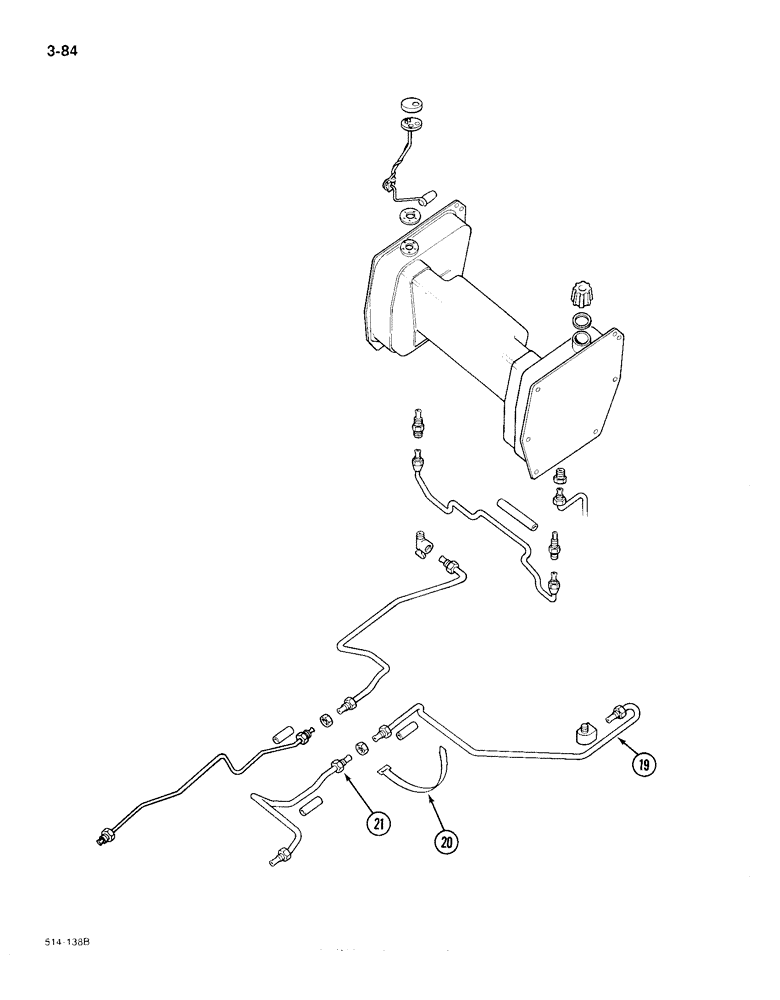

Запчасти Case IH 385 (3-084) - FUEL TANK (CONTD) (03) - FUEL SYSTEM

19

3129262R1

PIPE

TUBE - fuel return, rear

1шт.

20

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 max bundle

3шт.

21

3112790R1

PIPE

- fuel return, front

1шт.

538393R1

FILLER CAP

PLUG - hex socket, 1/8 inch NPTF, used with vertical exhaust

1шт.

366460R1

CABLE CLIP

CLIP - 0.25 diameter, open, fuel sender

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch, grade 5

2шт.

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

2шт.
