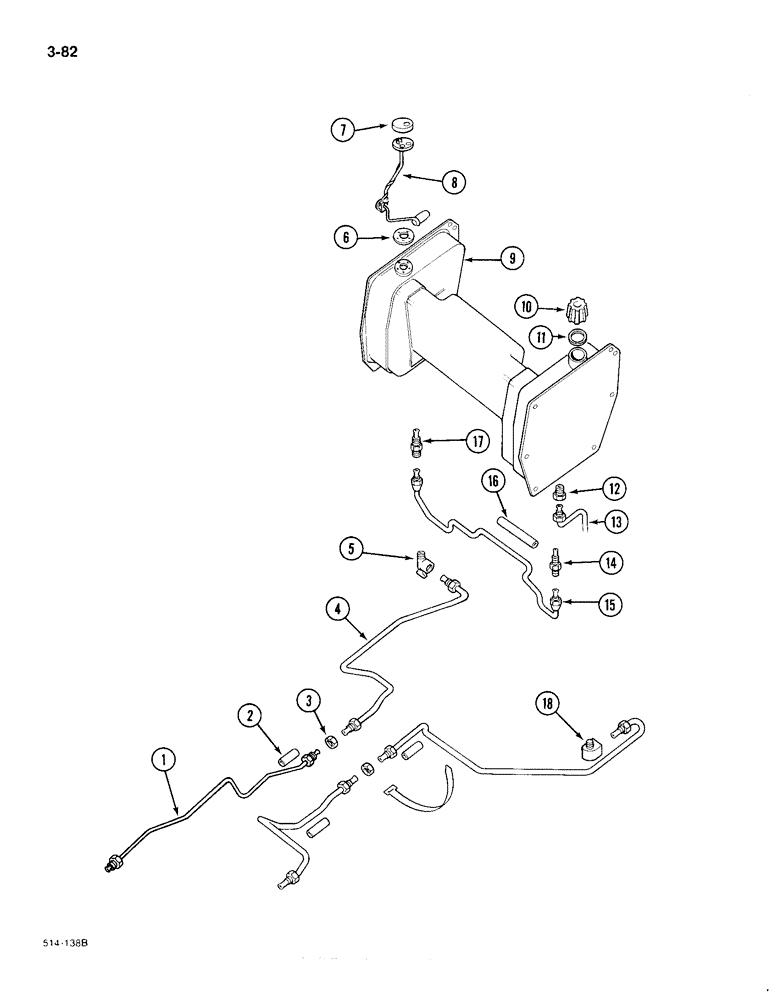

Запчасти Case IH 385 (3-082) - FUEL TANK (03) - FUEL SYSTEM

1

3116238R3

PIPE,787.4, 142.24 mm Length

- union to filler

1шт.

Ref. 1, New Tube Assy P/N 1536103C1.

1шт.

2

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve 0.31" ID x 2.50"

3шт.

3

442337

NUT

UNION - 5/16 inch OD tube

2шт.

4

3129561R1

PIPE,8 mm OD, 932.2, 259.1 mm Length

TUBE - union to shut-off valve

1шт.

5

528926R1

VALVE,1/2" - 20 x 3/8" - 18 NPTF

- shut-off

1шт.

6

528359R1

GASKET

- sending unit

1шт.

7

528360R2

COVER

- sending unit

1шт.

8

529790R1

SENDER UNIT

TRANSMITTER - fuel gauge, AC Delco, used with AC Delco gauge P/N 3121239R1

1шт.

8

3129841R91

FUEL GAUGE

TRANSMITTER - fuel gauge, Icknield, used with Icknield gauge P/N 3129840R1

1шт.

Ref. 8, didn't change with the new instrument cluster.

1шт.

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

- hex, No. 10 x 1/2 inch,Course threads

4шт.

451625

SCREW

- hex, No. 10 x 1/2 inch

1шт.

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

- pan, cross recess, No. 10 x 3/8 inch

1шт.

533199R1

SEALING WASHER

- sending unit cover

4шт.

796002R1

COPPER WASHER

WASHER - copper

1шт.

9

536035R93

FUEL TANK

TANK - fuel, with filler cap, Includes: Ref. 10 and 11

1шт.

120376

NUT,5/16"-18, G5

8шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch, grade 5

6шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

- hex, 3/8 NC x 5/8 inch, grade 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch, grade 5

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, grade 5, ZND

2шт.

10

536845R1

PLUG

CAP - fuel tank filler, Includes: Ref. 11

1шт.

11

23977DD

GASKET,47.5mm ID x 65.89mm OD x 2.39mm Thk

- fuel tank filler cap

1шт.

12

222-1014

HYD CONNECTOR,1/2"-20 Inv Fl x 1/8" NPT

UNION - 1/2 inch NF x 1/8 inch NPTF, used with underslung exhaust, Serial Range: -5287

1шт.

13

539938R1

VENTILATION PIPE

TUBE - tank breather, used with underslung exhaust, Serial Range: -5287

1шт.

539940R1

CLIP

- breather line, Serial Range: -5287

1шт.

NLS

NO LONGER SERVICED

BOLT - hex, 5/8 NC x 3/4 inch

1шт.

14

1502069C1

PIPE

- clearance

1шт.

15

1502067C2

PIPE,0.312" OD, 811.5, 96.5 mm Length

TUBE - crossover

1шт.

16

530107R1

FUEL HOSE,0.31" ID x 10.00"

Balance Tube Spacer 0.31" ID x 10.00"

1шт.

17

1502069C1

PIPE

- clearance

1шт.

18

137422

ELBOW

- 90 degree

1шт.
