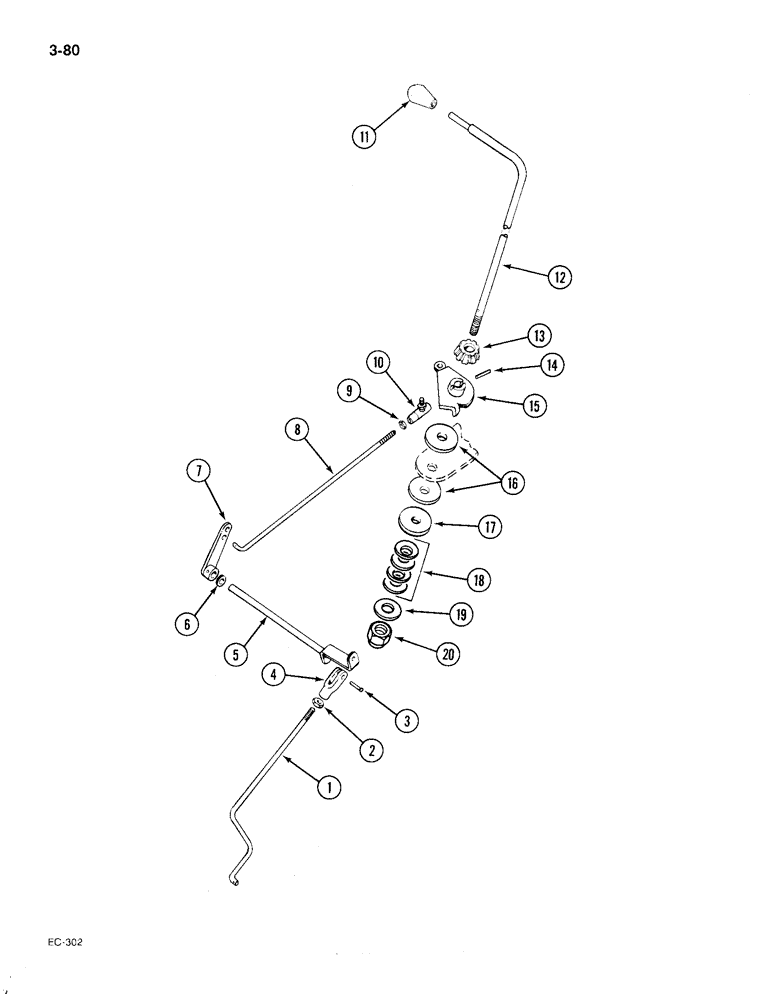

Запчасти Case IH 385 (3-080) - GOVERNOR CONTROLS, BOSCH WITHOUT CAB (03) - FUEL SYSTEM

1

528321R3

ROD

- governor control

1шт.

For tractors fitted with VA injection pump.

1шт.

1

1332914C1

ROD

- governor control, front

1шт.

For tractors fitted with VE injection pump.

1шт.

NLS

NO LONGER SERVICED

PIN - cotter, 1/16 x 1/2 inch

1шт.

2

114492

JAM NUT,Jam, 1/4"-28, G5

- hex jam, 1/4 inch NF, grade 5

1шт.

3

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN - clevis, 1/4 x 0.770 inch

1шт.

4

213-124

ADJUSTABLE CLEVIS,1/4"-28

CLEVIS - adjustable, 1/4 NF x 1-11/16 inch

1шт.

4

1500842C1

YOKE

CLEVIS - adjustable, optional to P/N 116534

1шт.

5

528325R2

ARM

- idler, governor control

1шт.

6

Q1597

WASHER

- plain, 0.406 x 0.734 x 0.056 inch

1шт.

6

20285H

WASHER

- plain, 0.406 x 0.75 x 0.105 inch, optional to P/N Q1597

1шт.

7

539572R2

LEVER

- idler arm

1шт.

720631R1

LINCH PIN

PIN - quick attach, cotter

1шт.

8

528336R3

ROD

- rear governor control[

1шт.

103361

PIN, SPLIT (COTTER)

PIN - cotter, 1/16 x 1/2 inch

1шт.

9

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

1шт.

10

191474

BALL JOINT

JOINT - ball, 1/4 inch NF, type C

1шт.

10

192227

BALL JOINT

JOINT - ball, 1/4 inch NF, type A, optional to P/N 191474

1шт.

10

27258R1

BALL JOINT

JOINT - ball, 1/4 inch NF, type G, optional to P/N 191474

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

- hex jam, 1/4 inch NF, grade 5

1шт.

25-114

NUT,1/4"-28, G5

- hex, 1/4 inch NF

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

11

402584R1

BUTTON

KNOB - control handle

1шт.

12

3121391R3

ROD

- control handle

1шт.

13

528290R1

GUIDE RING

COLLAR - control handle

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

SCREW - set, hex socket, No. 8 x 3/8 inch

1шт.

14

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

15

528291R3

ARM ASSY.

ARM - governor control rod

1шт.

16

3123275R1

FRICTION WASHER

DISC - governor control friction

2шт.

17

1332789C1

PLATE

- friction backing

1шт.

18

1500778C1

DISC

- spring, 24.4 x 12.9 x 0.90 mm

4шт.

19

22187R1

WASHER

- flat, 17/32 x 1-1/8 x 3/64 inch

1шт.

20

894980H1

LOCK NUT

- hex, self-locking, 1/2 inch NF

1шт.
