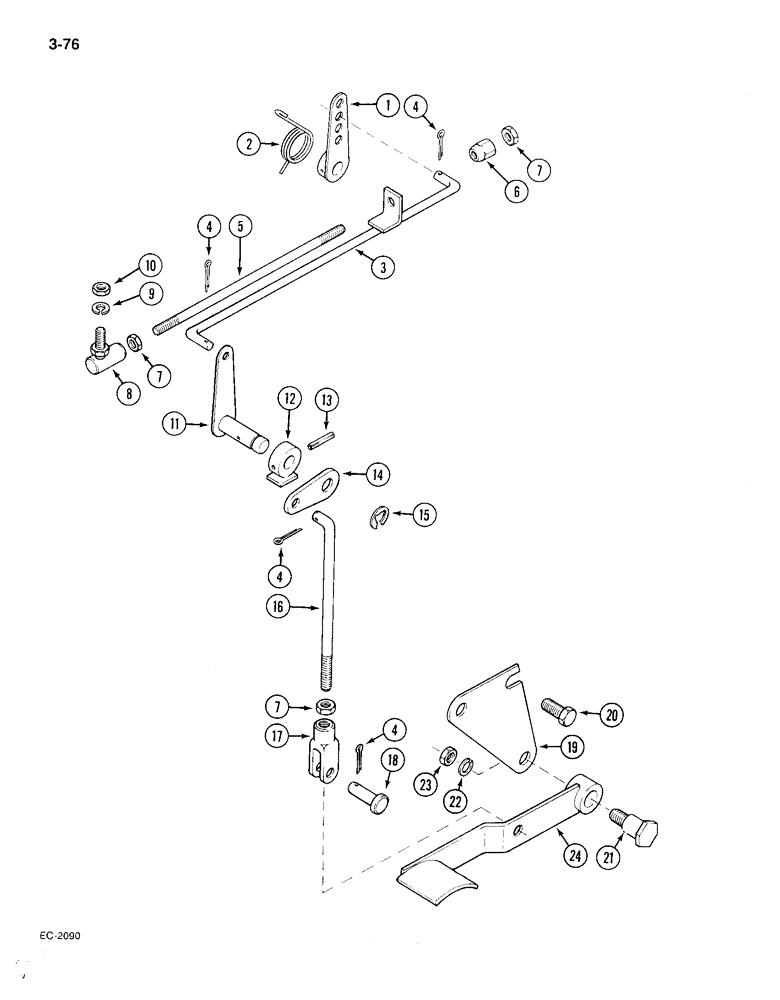

Запчасти Case IH 385 (3-076) - FOOT PEDAL ACCELERATOR, WITHOUT CAB (03) - FUEL SYSTEM

1

539572R2

LEVER

- idler arm

1шт.

2

539012R1

SPRING

- torsion

1шт.

3

528767R1

ROD ASSY.

ROD - pull, bellcrank

1шт.

4

432-48

COTTER PIN,1/16" x 1/2"

PIN - cotter, 1/16 x 1/2 inch

4шт.

5

528775R1

ROD

- pick-up, foot accelerator

1шт.

6

528776R1

NUT

- swivel, foot accelerator pick-up rod

1шт.

7

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

3шт.

8

19318R1

BALL JOINT

JOINT - ball, 1/4 inch NF, type F

1шт.

8

191474

BALL JOINT

JOINT - ball, 1/4 inch NF, type C, optional to P/N 19318R1

1шт.

8

192227

BALL JOINT

JOINT - ball, 1/4 inch NF, type A, optional to P/N 19318R1

1шт.

8

27258R1

BALL JOINT

JOINT - ball, 1/4 inch NF, type G, optional to P/N 19318R1

1шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

120367

NUT,Hex, 1/4" - 28, Gr 5

- hex, 1/4 inch NF, grade 5

1шт.

11

528760R3

ARM

- bellcrank

1шт.

12

532967R2

ARM

- actuating

1шт.

13

19368R1

PIN,5/32" x 1", Coiled

1шт.

14

528764R3

LEVER

- bellcrank

1шт.

15

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, #37, .300" Dia, E-Type

1шт.

16

528759R5

ROD

- pull, foot accelerator

1шт.

17

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - adjustable, 1/4 inch NF

1шт.

17

1500842C1

YOKE

CLEVIS - adjustable, optional to P/N 104036

1шт.

18

138083

PIN

- clevis, 1/4 x 25/32 inch

1шт.

19

528754R2

SUPPORT

BRACKET - support, foot accelerator pedal

1шт.

20

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch, grade 5

2шт.

21

532965R3

BOLT,3/8" - 16 x 1.7"

- foot pedal pivot

1шт.

22

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

23

120377

NUT,3/8" - 16, Gr 5

1шт.

24

69409C91

PACKAGE

KIT - service, foot pedal accelerator

1шт.
