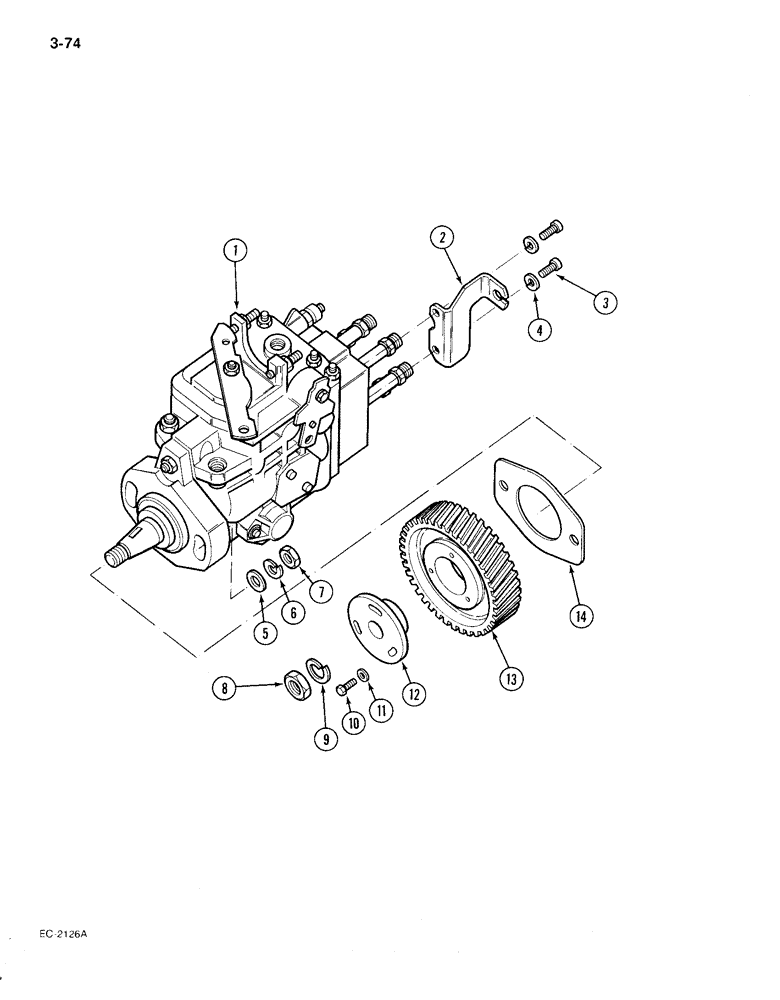

Запчасти Case IH 385 (3-074) - FUEL INJECTION PUMP VE (03) - FUEL SYSTEM

1

1329101C91

PUMP, FUEL INJECTION

PUMP - fuel injection, VE 3/10F 1100 R 276/1

1шт.

2

3218939R1

BRACKET

- support, fuel shut-off cable

1шт.

3

930679R1

HEX SOC SCREW,M6 x 25mm, Cl 8.8

- cap, hex socket, M6 x 25 mm, class 8.8

2шт.

4

905176R1

WAVE WASHER,M6.4 ID x 11 OD x .5 Thk

- spring bent M6.4 ID x 11 OD x .5 Thk

2шт.

5

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

2шт.

6

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC, grade 5

2шт.

8

933981R1

NUT,M12 x 1.75, Cl 5

Hex M12 x 1.75, Cl 5

1шт.

9

933834R1

LOCK WASHER,M12

WASHER - lock, 12 mm

1шт.

10

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

3шт.

11

30183R1

WASHER,M8 x 21.5 x 2.5, HT

- flat, 8 mm

3шт.

12

3055067R2

HUB

- injection pump gear

1шт.

13

3055066R3

GEAR

- injection pump

1шт.

14

3055384R1

GASKET

- fuel injection pump

1шт.
