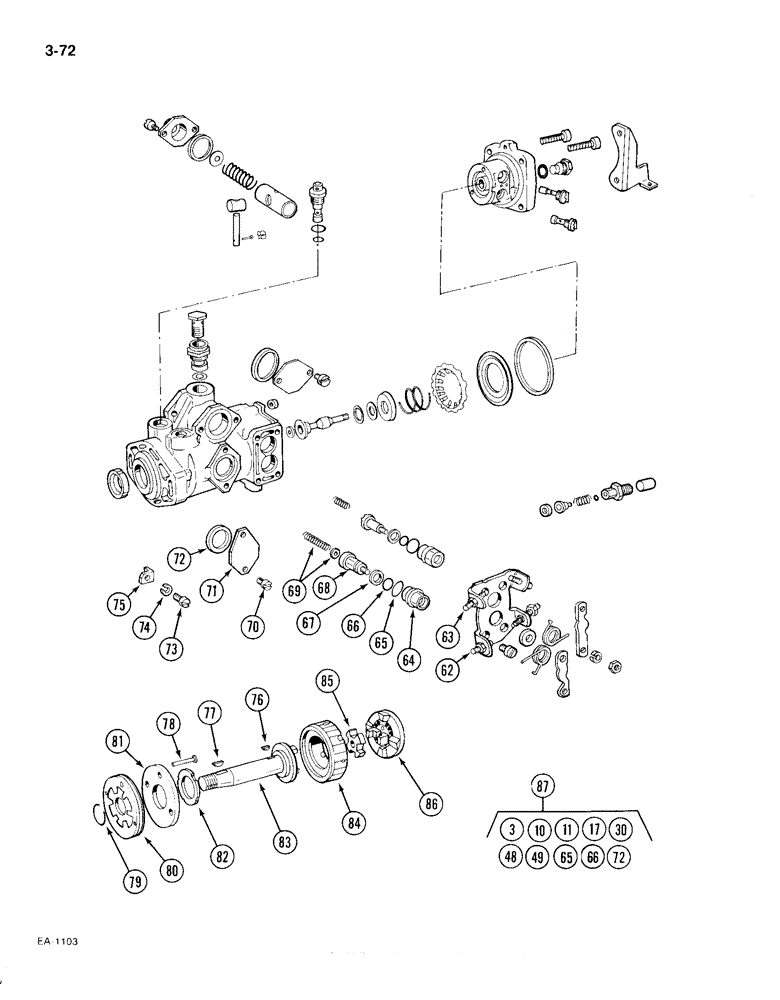

Запчасти Case IH 385 (3-072) - FUEL INJECTION PUMP VA, BOSCH INJECTION C.R. PUMP (CONTD) (03) - FUEL SYSTEM

3144270R91

PUMP

- fuel injection, EP/VA 3/100H 110 CR 9/3, Includes: Ref. 62 thru 86 and components of 87 in this figure, Ref. 1 thru 19 in Figure 3-066, Ref. 21 thru 27 in Figure 3-068 and Ref. 28 thru 61 in Figure 3-070

1шт.

62

3059074R1

SCREW

- stop

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

- hex, 6 mm, class 8, stop screw

1шт.

63

3136136R1

SCREW

- stop

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

- hex, 6 mm, class 8, stop screw

1шт.

64

3078524R1

BUSHING

- control shaft plunger

1шт.

65

785602R1

O-RING

- control plunger and throttle shaft bushing

1шт.

66

3078363R1

O-RING

- control plunger shaft

1шт.

67

3078523R1

WASHER

- control plunger shaft

1шт.

68

3078521R1

SHAFT

- control plunger

1шт.

69

3078610R91

KIT

- service, control plunger spring

1шт.

70

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

- machine, pan head, M6 x 12 mm, class 8.8

2шт.

71

3078486R1

COVER

- timing window

1шт.

72

3078485R1

RING

- packing, timing window cover

1шт.

73

931326R1

SCREW,Slotted Cheese , M4 x 0.7 x 5mm, Cl 8.8

- machine, pan head, M4 x 5 mm

1шт.

74

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER - lock, 4 mm

1шт.

75

3132598R1

INDICATOR

POINTER - timing

1шт.

76

3132395R1

KEY

- woodruff, drive shaft rear

1шт.

77

3079101R1

WOODRUFF KEY

KEY - woodruff, drive shaft

1шт.

78

3078477R1

BOLT,CSK

- supporting ring

2шт.

79

3078474R1

RING

- retaining

1шт.

80

3078475R91

PUMP

- charge

1шт.

81

3078476R1

RING

- support, charge pump

1шт.

82

3078479R1

THRUST WASHER

- thrust roller retainer

1шт.

83

3078473R1

SHAFT

- drive

1шт.

84

3078550R91

PUMP

RETAINER - roller assembly

1шт.

85

3059007R1

DISC

- cam face, cross type

1шт.

86

3078696R1

CAM

- face

1шт.

87

3078526R91

GASKET KIT

KIT - gasket, injection pump, Includes: Ref. 3, 10, 11, 17, 30, 48, 49, 65, 66 and 72

1шт.

3

3078488R1

RING

- packing, also shown as Ref. 17 in Figure 3-066

2шт.

10

3078358R1

O-RING

- regulator valve

1шт.

11

3078535R1

O-RING

- regulator valve

1шт.

30

3078366R1

O-RING

- distributor head

1шт.

48

3078354R1

O-RING,2mm Thk x 6.5mm ID

- throttle shaft

1шт.

49

785602R1

O-RING

- control plunger and throttle shaft bushing, also shown as Ref. 65 above

2шт.

66

3078363R1

O-RING

- control plunger shaft

1шт.

72

3078485R1

RING

- packing, timing window cover

1шт.
