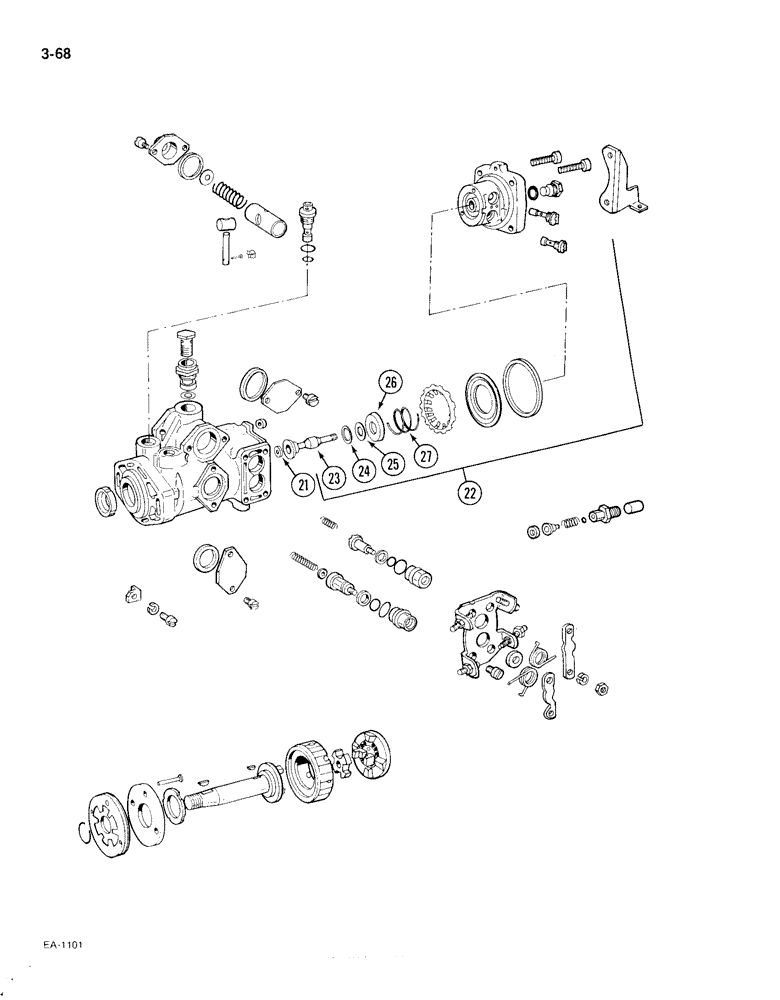

Запчасти Case IH 385 (3-068) - FUEL INJECTION PUMP VA, BOSCH INJECTION C.R. PUMP (CONTD) (03) - FUEL SYSTEM

3144270R91

PUMP

- fuel injection, EP/VA 3/100H 110 CR 9/3, Includes: Ref. 21 thru 27 in this figure, Ref. 1 thru 19 in Figure 3-066, Ref. 28 thru 61 in Figure 3-070 and Ref. 62 thru 86 and components of 87 in Figure 3-072

1шт.

21

3078761R2

WASHER

- 1.80 mm

1шт.

21

3078763R2

WASHER

- 1.84 mm

1шт.

21

3078765R2

WASHER

- 1.88 mm

1шт.

21

3078767R2

WASHER

- 1.92 mm

1шт.

21

3078769R2

WASHER

- 1.96 mm

1шт.

21

3078771R2

WASHER

- 2.00 mm

1шт.

21

3078773R2

WASHER

- 2.04 mm

1шт.

21

3078775R2

WASHER

- 2.08 mm

1шт.

21

3078777R2

WASHER

- 2.12 mm

1шт.

21

3078779R2

WASHER

- 2.16 mm

1шт.

21

3078781R2

WASHER

- 2.20 mm

1шт.

21

3078783R2

WASHER

- 2.24 mm

1шт.

21

3078785R2

WASHER

- 2.28 mm

1шт.

21

3078787R2

WASHER

- 2.32 mm

1шт.

21

3078789R2

WASHER

- 2.36 mm

1шт.

21

3078791R2

WASHER

- 2.40 mm

1шт.

21

3078793R2

WASHER

- 2.44 mm

1шт.

21

3078795R2

WASHER

- 2.48 mm

1шт.

21

3078797R2

WASHER

- 2.52 mm

1шт.

21

3078799R2

WASHER

- 2.56 mm

1шт.

21

3078801R2

WASHER

- 2.60 mm

1шт.

21

3078803R2

WASHER

- 2.64 mm

1шт.

21

3078805R2

WASHER

- 2.68 mm

1шт.

21

3078807R2

WASHER

- 2.72 mm

1шт.

21

3078809R2

WASHER

- 2.76 mm

1шт.

21

3078811R2

WASHER

- 2.80 mm

1шт.

21

3078813R2

WASHER

- 2.84 mm

1шт.

21

3078815R2

WASHER

- 2.88 mm

1шт.

22

3078702R91

HEAD

- distributor, Includes: Ref. 23 thru 27

1шт.

23

NSS

NOT SOLD SEPARAT

SPOOL - order assembly P/N 3078702R91

1шт.

24

3078540R1

WASHER

- plunger, 1.35 mm

1шт.

24

3078541R1

WASHER

- plunger, 1.60 mm

1шт.

24

3078542R1

WASHER

- plunger, 1.85 mm

1шт.

25

3078537R1

WASHER

- plunger, 1.65 mm

1шт.

25

3078571R1

WASHER

- plunger, 2.35 mm

1шт.

26

3078516R1

SEAT

- spring plunger

1шт.

27

3078515R1

SPRING

- plunger

1шт.
