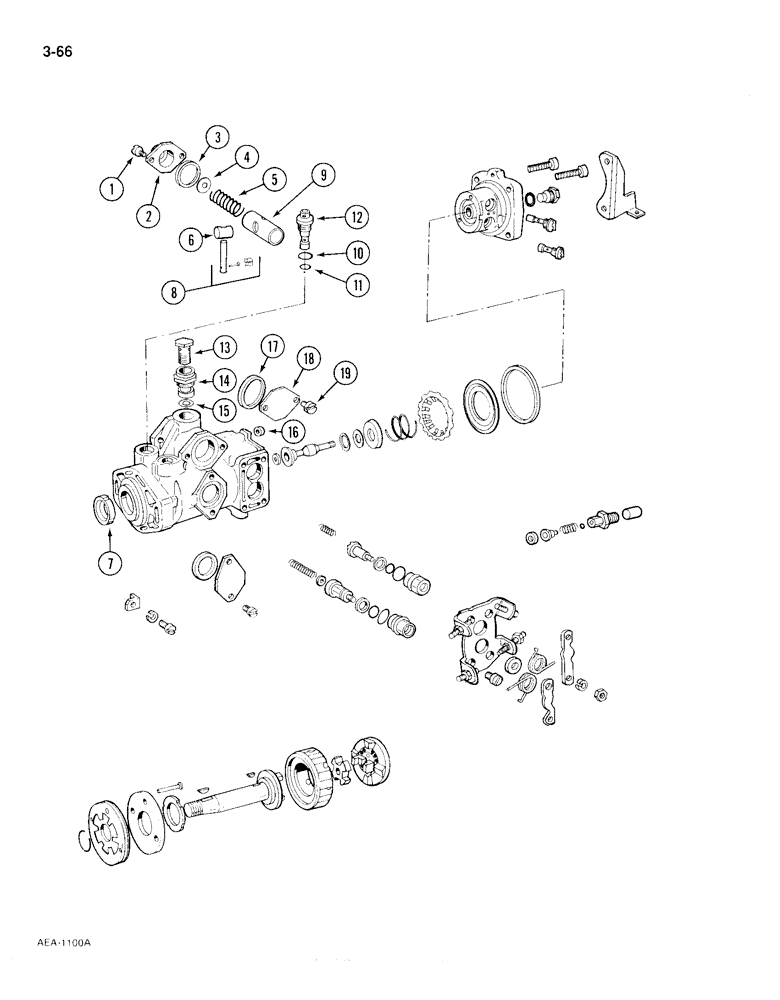

Запчасти Case IH 385 (3-066) - FUEL INJECTION PUMP VA, BOSCH INJECTION C.R. PUMP (03) - FUEL SYSTEM

3144270R91

PUMP

- fuel injection, EP/VA 3/100H 110 CR 9/3, Includes: Ref. 1 thru 19 in this figure, Ref. 21 thru 27 in Figure 3-068, Ref. 28 thru 61 in Figure 3-070, and Ref. 62 thru 86 and components of 87 in Figure 3-072

1шт.

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC, grade 5

2шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

1

931585R1

BOLT,M6 x 15mm, Cl 10.9

- hex, M12 x 30 mm, class 10.9

2шт.

2

3078489R1

COVER

- advance housing

1шт.

3

3078488R1

RING

- packing

1шт.

4

3078528R1

THRUST WASHER

- thrust, 0.6 mm

1шт.

4

3078529R1

THRUST WASHER

- thrust, 0.8 mm

1шт.

4

3078530R1

THRUST WASHER

- thrust, 1.0 mm

1шт.

4

3078531R1

THRUST WASHER

- thrust, 1.2 mm

1шт.

4

3078532R1

THRUST WASHER

- thrust, 1.4 mm

1шт.

4

3078533R1

THRUST WASHER

- thrust, 3.0 mm

1шт.

5

3078602R1

SPRING

- advance piston

1шт.

6

3078482R1

SLIDE

- advance piston

1шт.

7

3078355R2

OIL SEAL

- oil drive shaft

1шт.

8

3078481R1

PIN

- connecting auto advance

1шт.

9

3078572R91

HOUSING

- complete, with advance piston

1шт.

10

3078358R1

O-RING

- regulator valve

1шт.

11

3078535R1

O-RING

- regulator valve

1шт.

12

3078646R1

VALVE

- regulator

1шт.

13

3059086R1

BANJO BOLT

SCREW - hollow, pump inlet union

1шт.

14

3078484R1

VALVE

- overflow

1шт.

15

3078483R1

O-RING,2.5mm Thk x 15mm ID

- union adaptor advance housing

1шт.

16

3078487R1

O-RING

- packing

1шт.

17

3078488R1

RING

- packing

1шт.

18

3078486R1

COVER

- timing window

1шт.

19

931585R1

BOLT,M6 x 15mm, Cl 10.9

- hex, M12 x 30 mm, class 10.9

2шт.
