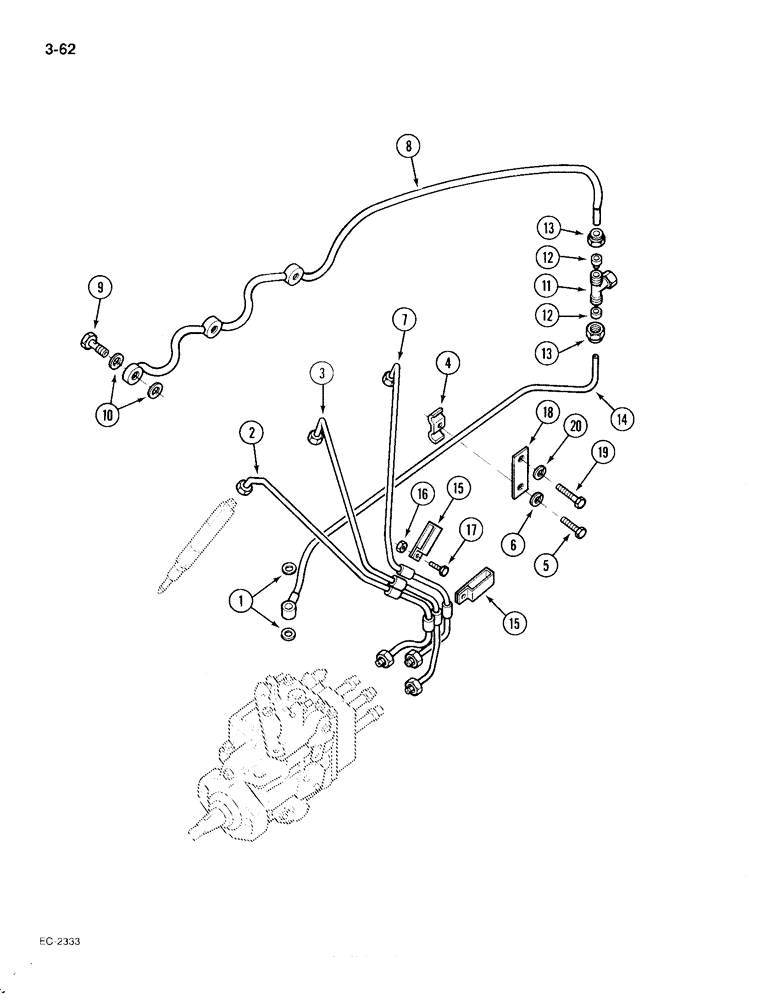

Запчасти Case IH 385 (3-062) - FUEL INJECTION PIPES (03) - FUEL SYSTEM

1

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

2шт.

2

1808235C1

TUBE

- injection, No. 1 cylinder

1шт.

3

1808236C1

TUBE

- injection, No. 2 cylinder

1шт.

4

3055386R1

CLAMP

CLIP - fuel line

1шт.

5

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

6

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

7

1808237C1

TUBE

- injection, No. 3 cylinder

1шт.

8

3218126R1

TUBE

HOSE - line leak

1шт.

9

3218130R1

BANJO BOLT,Hex, M6 x 133.02mm

- hollow, inlet union

3шт.

10

933696R1

SEALING RING,M6 x 10 x 1

RING - sealing, flat, 6 x 10 mm

6шт.

11

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

- tee, special

1шт.

12

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

- compression

2шт.

13

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT - coupling

2шт.

14

3144414R1

PIPE

- overflow

1шт.

For tractors fitted with VA injection pump.

1шт.

14

1329102C1

LINE

PIPE - overflow

1шт.

For tractors fitted with VE injection pump.

1шт.

15

3218242R1

CLAMP

- pipe, optional with P/N 3132766R1

2шт.

15

3132766R1

CLAMP

- pipe

2шт.

16

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

- hex, 6 mm, class 8

2шт.

17

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

- machine, pan head, M6 x 12 mm, class 8.8

2шт.

18

3132174R1

LINK

- fuel line clamping

1шт.

19

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

20

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
