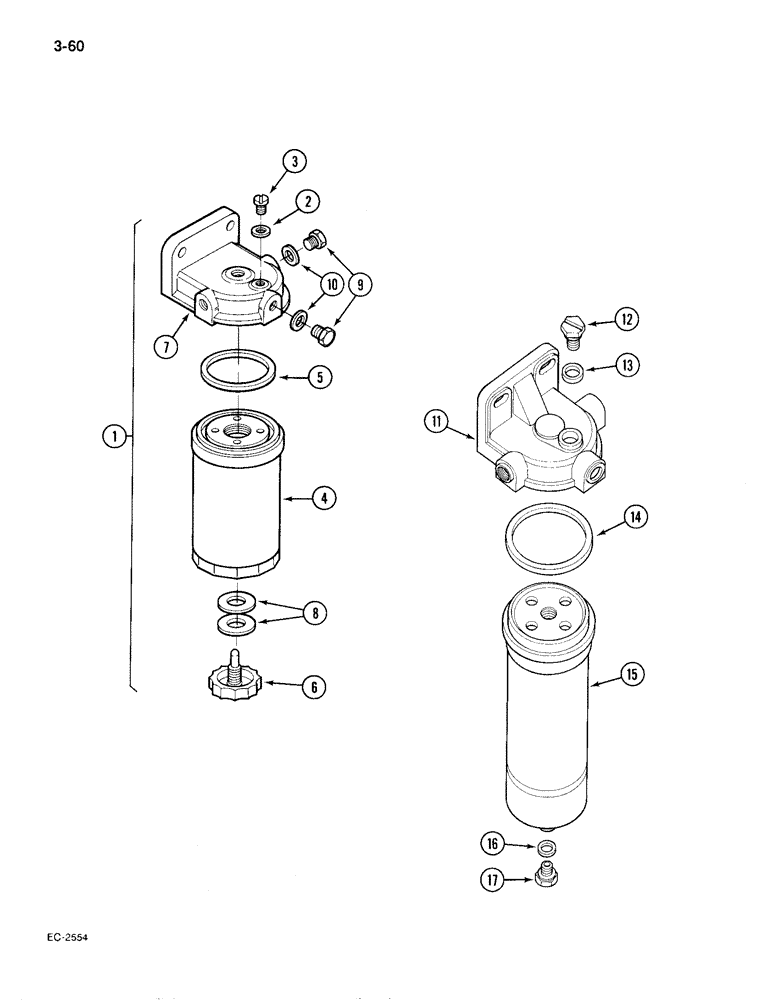

Запчасти Case IH 385 (3-060) - FUEL FILTER (03) - FUEL SYSTEM

1

3132452R92

FILTER

- fuel, Includes: Ref. 2 thru 10

1шт.

2

757760R1

RING

- packing

1шт.

3

3144780R1

SCREW

1шт.

4

3132428R2

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order 3132428R2MP

ELEMENT - filter, with seal, primary

1шт.

5

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

RING - packing

1шт.

6

3228407R1

PLUG

- drain, 7.8 mm

1шт.

7

3132198R2

COVER

HEAD - filter

1шт.

8

3144480R1

RING,8.1mm ID x 16mm OD x 2mm Thk

- sealing

2шт.

9

712616R1

PLUG,Hex, M14 x 1.5

2шт.

10

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.

3228064R91

FILTER

- fuel, without glass bowl, Includes: Ref. 11 thru 17

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Disc M10.2 ID x 20 OD x 1.1 Thk

2шт.

11

3228102R1

LID

HEAD - fuel filter

1шт.

12

3144780R1

SCREW

1шт.

13

757760R1

RING

- packing, air vent

1шт.

14

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

RING - packing

1шт.

15

3218794R91

FILTER

ELEMENT - filter, with seals, secondary

1шт.

16

933696R1

SEALING RING,M6 x 10 x 1

RING - sealing, flat, 6 x 10 mm

1шт.

17

3144780R1

SCREW

1шт.
