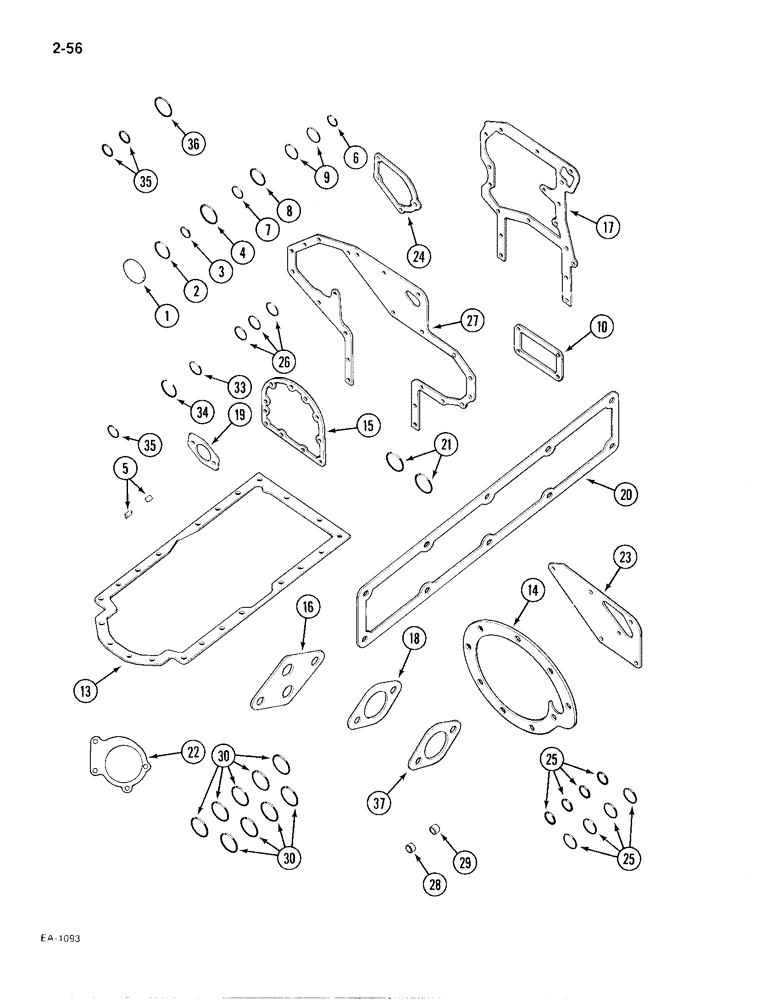

Запчасти Case IH 385 (2-056) - CYLINDER BLOCK GASKET KIT (02) - ENGINE
№
Артикул
Название
Примечание
Количество
3136802R98
GASKET KIT
PACKAGE - crankcase gaskets, Includes: Ref. 1 thru 37
1шт.
1
172602
SUPPORT
- expansion, 2-3/4 inch
1шт.
2
933222R1
SEALING WASHER,M18 x 22 x 1.5
1шт.
3
710097R2
SEALING RING,14mm ID x 18mm OD x 1.5mm Thk
Packing M14 x 18 x 1.5
1шт.
4
713778R1
O-RING,3mm Thk x 55mm ID
- 55 x 61 mm
1шт.
5
714868R1
SEALING STRIP
- sealing
2шт.
6
3228348R1
RING,4.75mm Thk x 109.16mm ID
- packing, cylinder sleeve
3шт.
7
933087R2
SEALING RING,10mm ID x 13.5mm OD x 1mm Thk
1шт.
8
933608R1
SEALING RING,M26 x 31 x 2
WASHER, SEALING, M26 x 31 x 2
1шт.
9
3138687R1
RING
- packing
2шт.
10
3138640R1
GASKET
- injection pump cover
1шт.
13
3055160R1
OIL PAN GASKET SET
- oil pan
1шт.
14
3055177R1
GASKET
- water pump
1шт.
15
3055215R1
GASKET
- crankcase oil seal retainer
1шт.
16
3055237R1
GASKET
- oil filter socket
1шт.
17
3055239R1
GASKET
- front plate
1шт.
18
3138639R1
GASKET
- crankcase breather
1шт.
19
3055384R1
GASKET
- fuel injection pump
1шт.
20
3055394R2
GASKET
- side cover, refer to Fig. 2-040 for picture
1шт.
21
3228577R1
O-RING,3.1mm Thk x 24.5mm ID, Cl 7
- oil pump sealing
2шт.
22
NSS
NOT SOLD SEPARAT
not used in this application
1шт.
23
3055999R1
GASKET
- water pump carrier
1шт.
24
3132541R1
GASKET
- closing cover
1шт.
25
933610R1
SEALING RING,M14 x 18 x 1.8
8шт.
26
713845R1
SEALING WASHER,M12 x 15.5 x 1.5
3шт.
27
3055994R1
GASKET
- crankcase front cover
1шт.
28
3052295R91
SEAL,6mm ID x 16mm OD x 7mm Thk
SEAL - oil, radial lip type
1шт.
29
784162R91
SEALING RING
SEAL - tachometer drive, optional to P/N 3052295R91
1шт.
30
3228577R1
O-RING,3.1mm Thk x 24.5mm ID, Cl 7
- oil pump sealing
3шт.
33
934005R1
SEALING RING,12mm ID x 18mm OD x 1.5mm Thk
1шт.
34
3055389R2
O-RING,2.5mm Thk x 32mm ID, 70 Duro
1шт.
35
3132869R1
O-RING
2шт.
36
not used in this application
1шт.
37
3136174R1
GASKET
- side cover
1шт.
Выбрано товаров: 34
