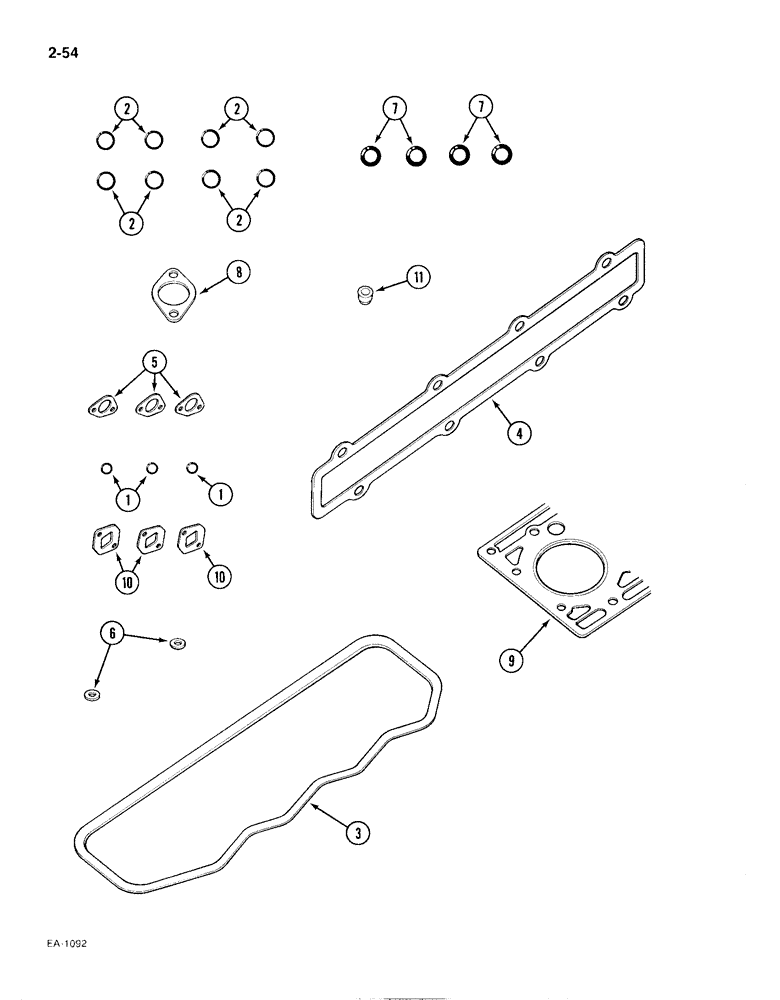

Запчасти Case IH 385 (2-054) - SERVICE KITS, COMPLETE SERVICE ENGINE (02) - ENGINE

3132913R96

SKELETON ENGINE

BLOCK short

1шт.

1808165C95

ENGINE

- D-155, complete service, consists of all engine parts except: alternator, fan belt, fan blade, muffler and exhaust pipe shown below

1шт.

NSS

NOT SOLD SEPARAT

ALTERNATOR, complete service engine

1шт.

NSS

NOT SOLD SEPARAT

BELT - fan, complete service engine

1шт.

NSS

NOT SOLD SEPARAT

BLADE - fan, complete service engine

1шт.

NSS

NOT SOLD SEPARAT

MUFFLER AND EXHAUST PIPE, complete service engine

1шт.

3136798R98

GASKET KIT

PACKAGE - cylinder head gaskets, Includes: Ref. 1 thru 11, service kits

1шт.

1

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

service kits

3шт.

2

3053133R1

SEALING RING,M8 x 11.5 x 1

WASHER, SEALING, , Service kits M8 x 11.5 x 1

8шт.

3

3138641R1

GASKET

- valve housing cover, service kits

1шт.

4

3055397R1

GASKET

- intake manifold, service kits

1шт.

5

3055306R1

GASKET

- manifold, water collecting, service kits

3шт.

6

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

- valve cover, service kits

2шт.

7

3056941R1

SEALING WASHER,6.5mm ID x 12mm OD x 1mm Thk

RING - packing, service kits

4шт.

8

3132143R1

GASKET

- water outlet flange, service kits

1шт.

9

3228361R1

CYLINDER HEAD GASKET

- cylinder head, service kits

1шт.

10

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold, service kits

3шт.

11

3218399R91

GASKET KIT

KIT - valve stem seal, service

1шт.
