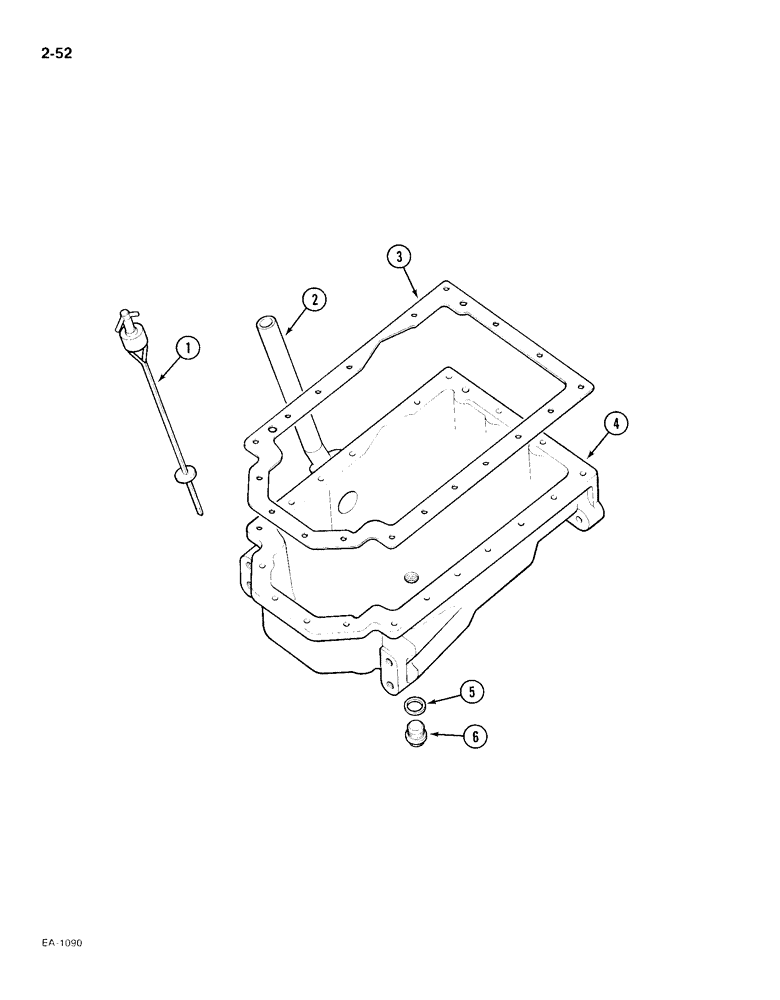

Запчасти Case IH 385 (2-052) - OIL PAN (02) - ENGINE

1

1329040C1

DIPSTICK

GAUGE - oil level

1шт.

2

3136241R1

TUBE,29.556 mm OD, 250 mm Length

PIPE - oil filler

1шт.

3

3055160R1

OIL PAN GASKET SET

- oil pan

1шт.

4

1806866C91

PAN, ENGINE OIL

PAN - oil

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16") M8.2 ID x 16 OD x .9 Thk

4шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

11шт.

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

15шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

5

933608R1

SEALING RING,M26 x 31 x 2

WASHER, SEALING, M26 x 31 x 2

1шт.

6

3132544R2

PLUG

1шт.
