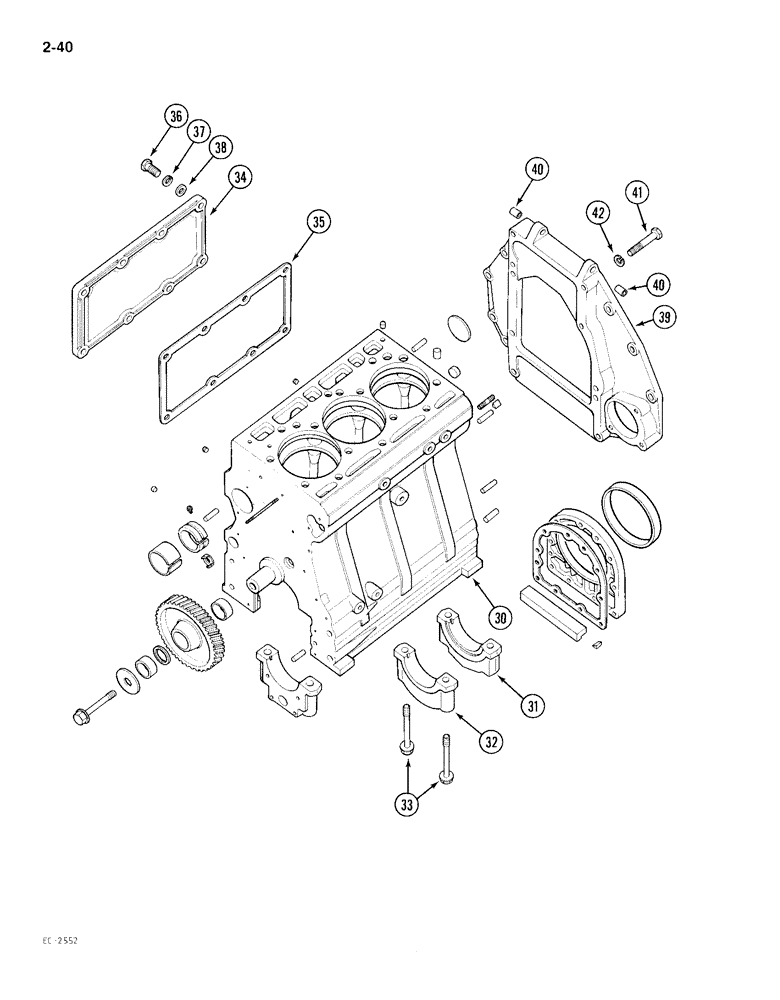

Запчасти Case IH 385 (2-040) - CYLINDER BLOCK AND RELATED PARTS (CONTD) (02) - ENGINE

30

3055000R37

CRANKCASE

BLOCK - cylinder, Includes: cylinder block, crankshaft bearing cap, P/N 3144520R1, 141242, 141284, 172602, 933537R1, 3136004R1, 3055270R1, 3055008R2, 1806820C1, 3055007R1, 3138580R1 and 103883

1шт.

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

NSS

NOT SOLD SEPARAT

CAP - crankshaft bearing

4шт.

3144520R1

PLUG

- slotted headless pipe

3шт.

NLS

NO LONGER SERVICED

PIN - dowel, 3/8 x 7/8 inch

4шт.

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

41-3044

PLUG,Exp, 2 3/4"

- expansion, 2-3/4 inch

1шт.

933537R1

PLUG,M25, Conical

- cup

2шт.

3136004R1

COVER

- closing, 10 mm

1шт.

3055270R1

STUD

- rear

1шт.

3055008R2

CRANKSHAFT BEARING,57.56mm ID x 63.1mm OD x 30mm W

BEARING - camshaft, front

1шт.

1806820C1

CAMSHAFT BEARING,57.98mm ID x 63mm OD x 18mm W

BEARING - camshaft

3шт.

3055007R1

BUSHING

- dowel

10шт.

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

- Bearing cap

8шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

31

3144436R91

CRANKSHAFT BEARING

KIT - service, rear main bearing cap, includes cap, bolt and instructions

1шт.

NSS

NOT SOLD SEPARAT

CAP

1шт.

NSS

NOT SOLD SEPARAT

BOLT

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

32

3144438R91

BEARING ASSY

KIT - service, bearing cap, includes cap, bolt and instructions

2шт.

NSS

NOT SOLD SEPARAT

CAP

1шт.

NSS

NOT SOLD SEPARAT

BOLT

2шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

33

3138580R1

BOLT,Hex Flg, 9/16" - 12 x 120.70mm, 12.9

- Bearing cap

8шт.

34

3132815R2

COVER

- cylinder block side

1шт.

35

3055394R2

GASKET

- side cover

1шт.

36

179814

SPACER

- hex, 5/16 NC x 5/8 inch, grade 5

8шт.

37

3050129R1

LOCK WASHER

WASHER - lock, 5/16 inch

8шт.

38

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

- flat, 5/16 inch

8шт.

39

3136059R22

PLATE ASSY.

HOUSING - flywheel, Includes: Ref. 40

1шт.

40

3136060R2

BUSHING

2шт.

41

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

42

3050128R1

LOCK WASHER

- Lock

4шт.
