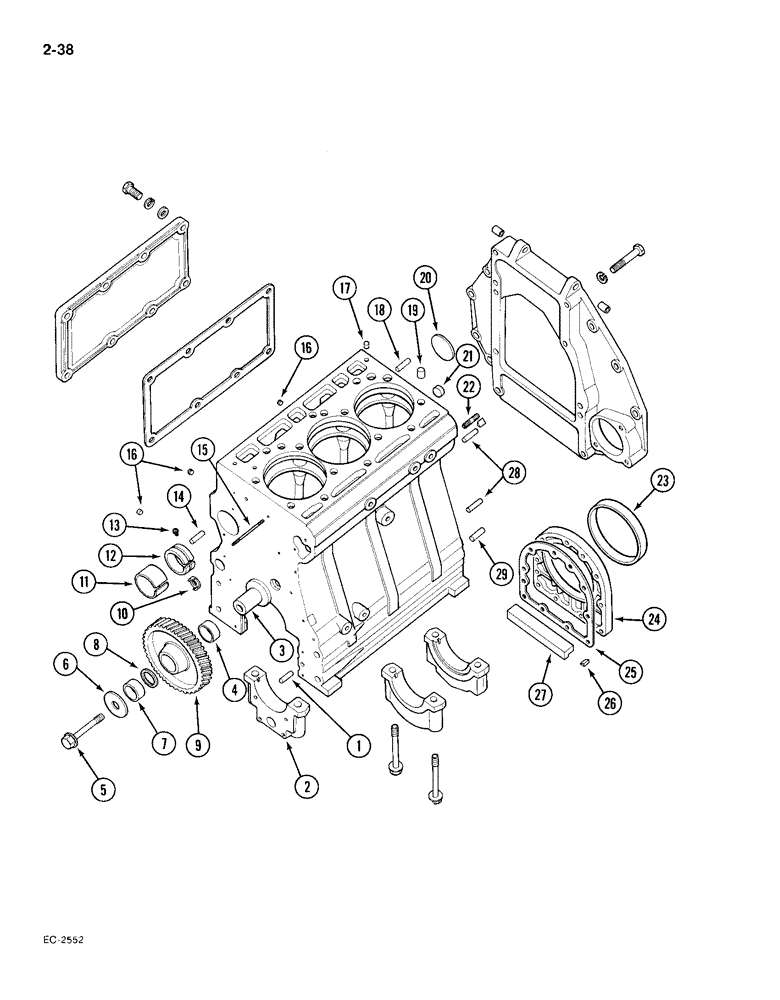

Запчасти Case IH 385 (2-038) - CYLINDER BLOCK AND RELATED PARTS (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
141242
DOWEL
PIN - dowel, 3/8 x 7/8 inch
1шт.
2
NSS
NOT SOLD SEPARAT
CAP - bearing front
1шт.
3
3055373R1
CARRIER
- idler gear
1шт.
4
3058816R91
NEEDLE BEARING CAGE,35mm ID x 42mm OD x 17.8mm W
BEARING - needle
1шт.
4
3136515R91
BEARING
- needle optional to P/N 3058816R91
1шт.
5
3055374R2
BOLT
BOLT - idler gear carrier
1шт.
6
3055372R1
DISC
RING - anti-wear, idler gear
1шт.
7
3058816R91
NEEDLE BEARING CAGE,35mm ID x 42mm OD x 17.8mm W
BEARING - needle
1шт.
7
3136515R91
BEARING
- needle optional to P/N 3058816 R91
1шт.
8
787656R1
SPACER,35.5mm ID x 41mm OD x 4mm L
RING - distance
1шт.
10
933537R1
PLUG,M25, Conical
- cup
1шт.
11
3055008R2
CRANKSHAFT BEARING,57.56mm ID x 63.1mm OD x 30mm W
BEARING - camshaft, front
1шт.
12
3055009R2
BEARING LINER
BEARING - camshaft
3шт.
13
103883
PIPE PLUG,Slotted, Headless, 1/8" NPT
PLUG, PIPE, Slotted, Headless, 1/8" NPT
2шт.
14
NLS
NO LONGER SERVICED
PIN - dowel, 3/8 x 7/8 inch
4шт.
15
3055989R1
STUD
- crankcase front
1шт.
16
3144520R1
PLUG
- slotted headless pipe
3шт.
17
3136004R1
COVER
- closing, 10 mm
1шт.
18
141284
PIN,25.4mm OD x 31.75mm L
Pin 1/2" x 1 1/8"
2шт.
19
3055007R1
BUSHING
- dowel
10шт.
20
172602
SUPPORT
- expansion, 2-3/4 inch
1шт.
21
933537R1
PLUG,M25, Conical
- cup
1шт.
22
3055270R1
STUD
- rear
1шт.
23
3138701R91
SEAL
SEAL - oil, crankcase rear
1шт.
24
3055216R1
RETAINER
- oil seal
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
8шт.
9635082
NUT,5/16" - 18, Gr 5
- hex, 5/16 inch NC, grade 5
1шт.
3218395R1
BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk
Lock (5/16") M8.2 ID x 16 OD x .9 Thk
9шт.
25
3055215R1
GASKET
- crankcase oil seal retainer
1шт.
26
714868R1
SEALING STRIP
- sealing
2шт.
27
3055214R1
SUPPORT
STRIP - crankcase sealing
1шт.
28
141242
DOWEL
PIN - dowel, 3/8 x 7/8 inch
2шт.
29
141284
PIN,25.4mm OD x 31.75mm L
Pin 1/2" x 1 1/8"
2шт.
Выбрано товаров: 34
