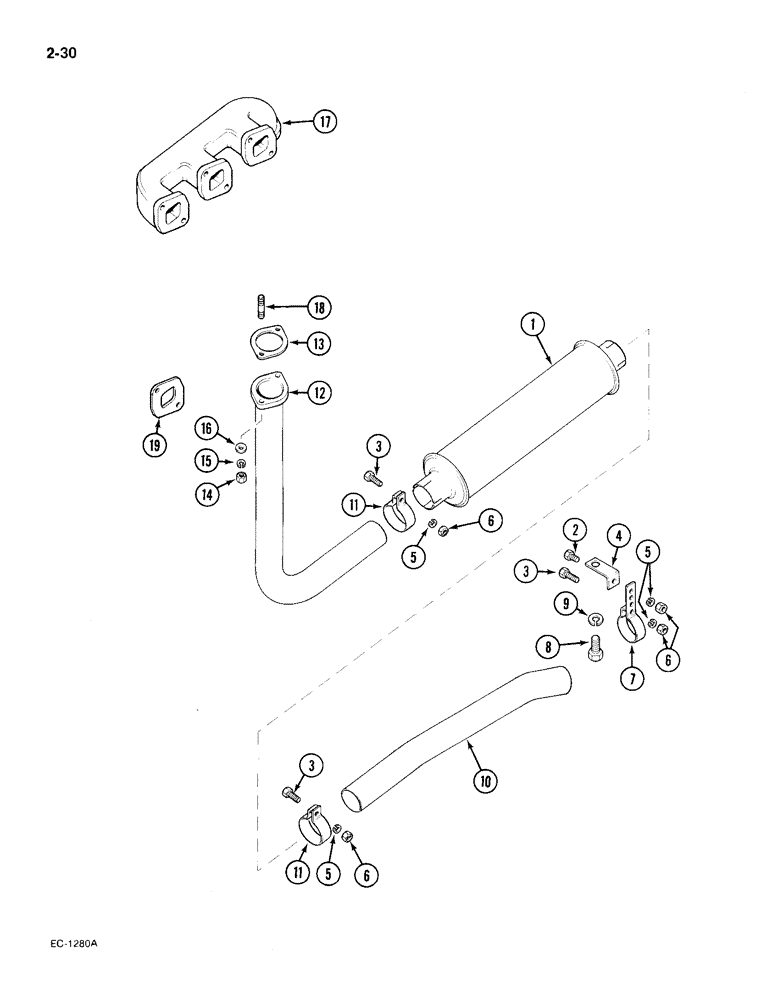

Запчасти Case IH 385 (2-030) - UNDERSLUNG EXHAUST AND MANIFOLD, TRACTORS P.I.N. 18001 AND AFTER (02) - ENGINE

1

401489R2

MUFFLER

1шт.

2

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

- hex, 3/8 NC x 7/8 inch, grade 5

1шт.

3

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

- hex, 3/8 NC x 1-1/8 inch, grade 5

3шт.

4

90156C1

GUARD

BRACKET

1шт.

5

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

120377

NUT,3/8" - 16, Gr 5

4шт.

7

90157C1

SUPPORT

- tail pipe rear

1шт.

8

413-1014

BOLT,Hex, 5/8" - 11 x 7/8", Gr 5

- hex, 5/8 NC x 7/8 inch, grade 5

1шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10

90155C1

EXHAUST SYSTEM PIPE

PIPE - tail

1шт.

11

67672C1

CLAMP

- pipe

2шт.

12

82864C1

TUBE,546.5 mm Length

PIPE - exhaust manifold

1шт.

13

401486R1

MANIFOLD GASKET

- exhaust manifold pipe

1шт.

14

103026

NUT,3/8"-24, G5

8шт.

15

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

20285H

WASHER

- plain, 0.406 x 0.75 x 0.105 inch

6шт.

17

3055124R12

MANIFOLD ASSY

MANIFOLD - exhaust, Includes: Ref. 18

1шт.

18

3055663R1

STUD

- exhaust manifold, 3/8 NF x 3/8 NC x 38 mm

2шт.

19

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

3шт.
