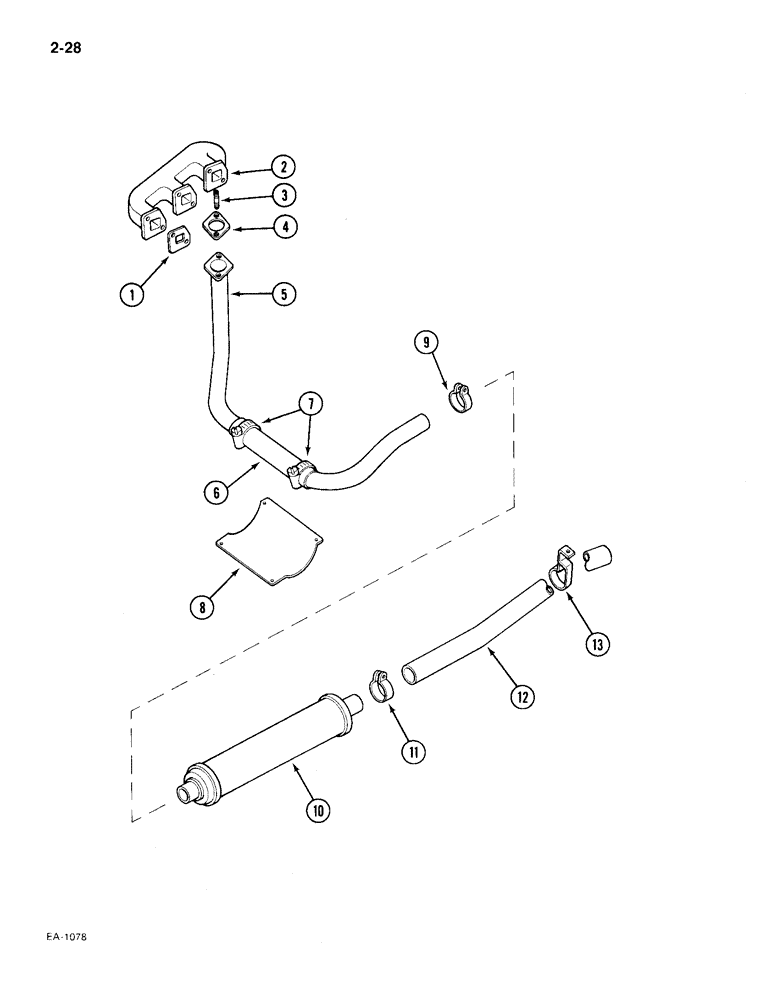

Запчасти Case IH 385 (2-028) - UNDERSLUNG EXHAUST, TRACTORS PRIOR TO P.I.N. 5287 (02) - ENGINE

1

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

3шт.

2

3055124R12

MANIFOLD ASSY

MANIFOLD - exhaust

1шт.

103026

NUT,3/8"-24, G5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20285H

WASHER

- plain, 0.406 x 0.75 x 0.105 inch, Includes: Ref. 3

6шт.

3

3055663R1

STUD

- exhaust manifold, 3/8 NF x 3/8 NC x 38 mm

2шт.

4

401486R1

MANIFOLD GASKET

- exhaust manifold pipe

1шт.

5

66287C91

PIPE

- exhaust manifold, Includes: Ref. 6 and 7

1шт.

6

114614C1

SHIELD

- fibreglass heat

1шт.

7

995220R1

CLAMP

- No. 28 hose

2шт.

8

401488R1

GUARD

- pipe

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

67672C1

CLAMP

- pipe

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

- hex, 3/8 NC x 1-1/8 inch, grade 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

401489R2

MUFFLER

1шт.

11

67672C1

CLAMP

- pipe

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

- hex, 3/8 NC x 1-1/8 inch, grade 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

12

401490R2

PIPE

- tail

1шт.

13

3125262R1

SUPPORT

- tail pipe rear

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

- hex, 3/8 NC x 1-1/8 inch, grade 5

1шт.

271714

BOLT,Hex, 5/8" - 11 x 7/8", Gr 5

- hex, 5/8 NC x 7/8 inch, grade 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
